Sensor Adapter Tp - Flow vision FC100 - CA User Manual

2 . 1 .2 .3 Sensor adapter TP- ...

The sensor adapter TP- ... is available in 6 pipe diameters from 1/2" to 2".
Material of the area exposed to medium:
- brass (not TP-03 ...) / gunmetall (only TP-03 ...) or
- stainless steel 1.4571/AISI 316 Ti
t
t
FC100-CA | Flow Meter
INSTALLATION
retention pin
t
L
t
L

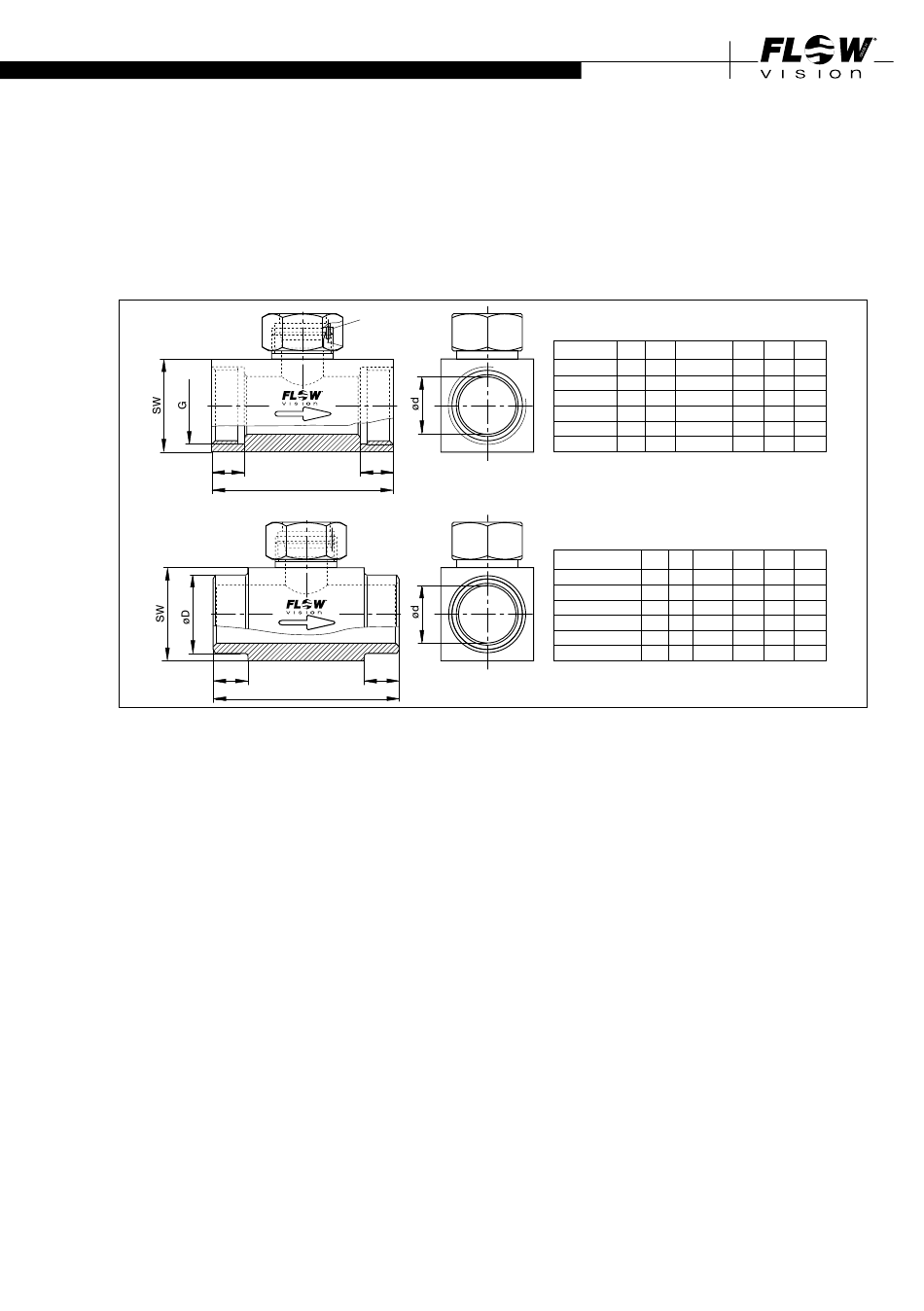

Type DN ød G
TP-01 ... 15 16 1/2"
TP-02 ... 20 20 3/4"
TP-03 ... 25 25 1"
TP-04 ... 32 32 1 1/4"
TP-05 ... 40 40 11/2"
TP-06 ... 50 50 2"
All dimensions in mm
unless otherwise specified
Type DN ød øD
TP-01M1-S A 15 16 21.3
TP-02M1-S A 20 20 26.9
TP-03M1-S A 25 25 33.7
32
TP-04M1-S A 32 42.4
TP-05M1-S A 40 40 48.3
TP-06M1-S A 50 50 60.3
t L SW
11 50 27
12 64 32
14 78 40
15 94 50
15 110 55
19 138 70
t L SW
15 50 27
15 70 32
15 80 40
15
100 50
15 110 55
15 140 70
fig. 5
15
