5 .9 User outputs

submenu
USER OUTPUTS
USER OUTPUTS
ANA OUT FLOW
M
or
USER OUTPUTS
ANA OUT TEMP
M
or
USER OUTPUTS
LIMIT SWITCHES
M
or
USER OUTPUTS
FREQUENCY OUTP.
M
or

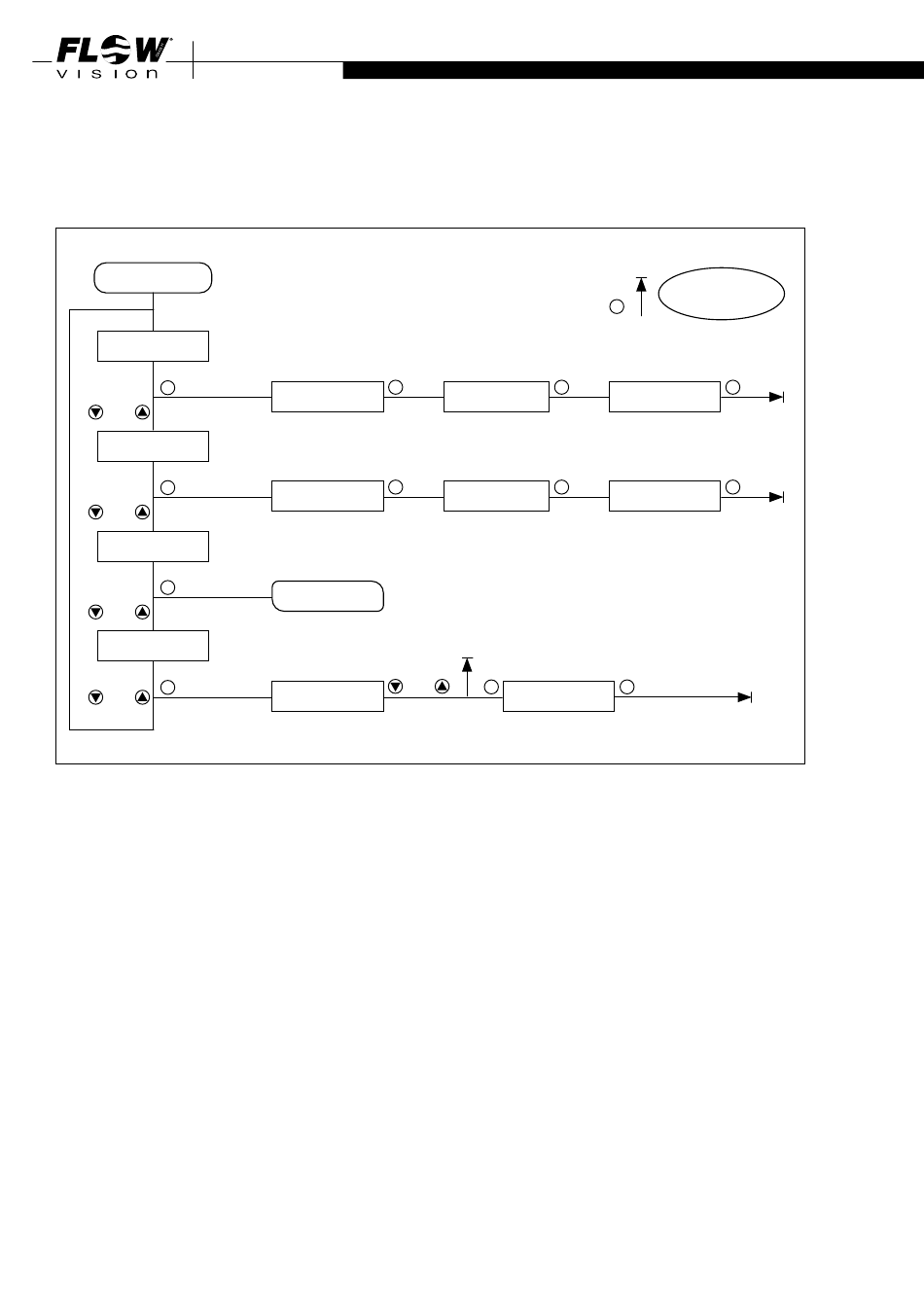

The following USER OUTPUTS may be adjusted in this submenu (see fig. 39):
• analogue output – flow velocity (see chapter 5.9.1)
• analogue output – medium temperature (see chapter 5.9.2)
• limit switches (see chapter 5.10)
• frequency output (see chapter 5.11)
52
CONFIGURATION
M
ANA OUT FLOW
OFFSET = 0 mA
M
ANA OUT TEMP
OFFSET = 0 mA
submenu
LIMIT SWITCHES
or
FREQUENCY OUTP.?
M→ yes▲ or ▼→ no
M
M
0mA = 0.00m/s 20mA = 3.00m/s
3
0.0 m /h
M
ANA OUT TEMP ANA OUT TEMP
0 mA = -40°C 20 mA = 130°C
M M
FREQUENCY OUTPUT
3
1 PULSE/10.0 m
back to
CONFIGURATION
menu
M
3
5.6 m /h
M
fig. 39
