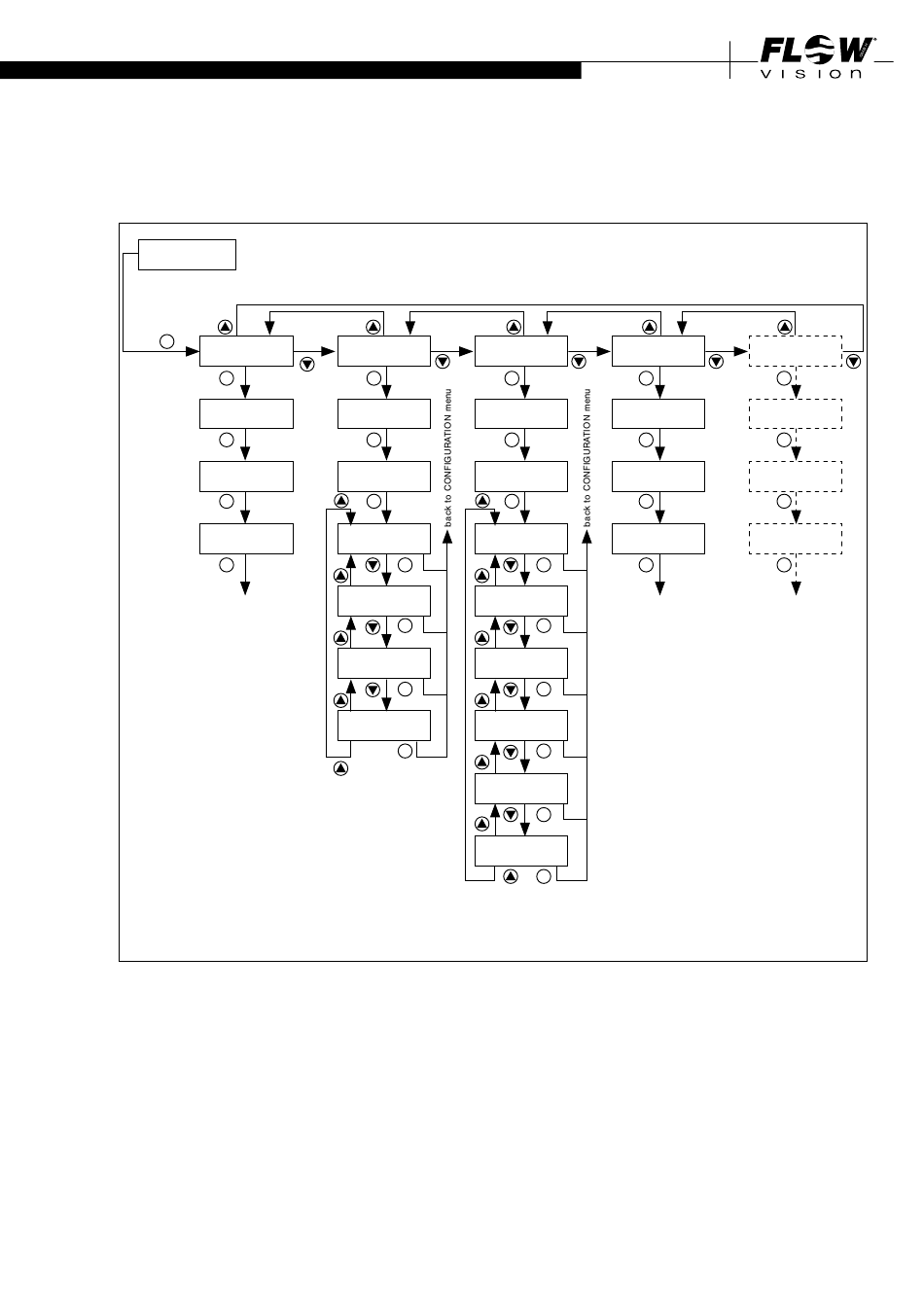

5 .2 Sensor select

submenu
SENSOR SELECT
M
SENSOR SELECT
CST11AM1
M
SENSOR CODE
C 555
M
SENSOR CODE
T 555
M
PIPE SIZE
DIAM.=50,0 MM
M
back to
CONFIGURATION menu
*Only avaiable when a custom designed option has been ordered and integrated.
FC100-CA | Flow Meter
CONFIGURATION
SENSOR SELECT SENSOR SELECT
CSP11AM1BV CSP11AM1
M M
SENSOR CODE SENSOR CODE
C 555 C 555
M M
SENSOR CODE SENSOR CODE
T 555 T 555
M M
BV SIZE SELECT TP SIZE SELECT
BV-03 (1 in) TP-01 (1/2 in)
M
BV SIZE SELECT TP SIZE SELECT
BV-04 (1.1/4 in) TP-02 (3/4 in)
M
BV SIZE SELECT TP SIZE SELECT
BV-05 (1.1/2 in) TP-03 (1 in)
M
BV SIZE SELECT TP SIZE SELECT
BV-06 (2 in) TP-04 (1.1/4 in)
M
TP SIZE SELECT
TP-05 (1.1/2 in)
TP SIZE SELECT
TP-06 (2 in)
SENSOR SELECT
CSF11AM1
M
SENSOR CODE
C 555
M
SENSOR CODE
T 555
M
PIPE SIZE
DIAM.=100,0 MM
M M
back to
CONFIGURATION menu
M
M
M
M
M
*
SENSOR SELECT
S-No. 000
M
SENSOR CODE
C 555
M
SENSOR CODE
T 555
M
PIPE SIZE
DIAM.=50,0 MM
M
back to
CONFIGURATION menu
