1.2 Front-Panel Overview

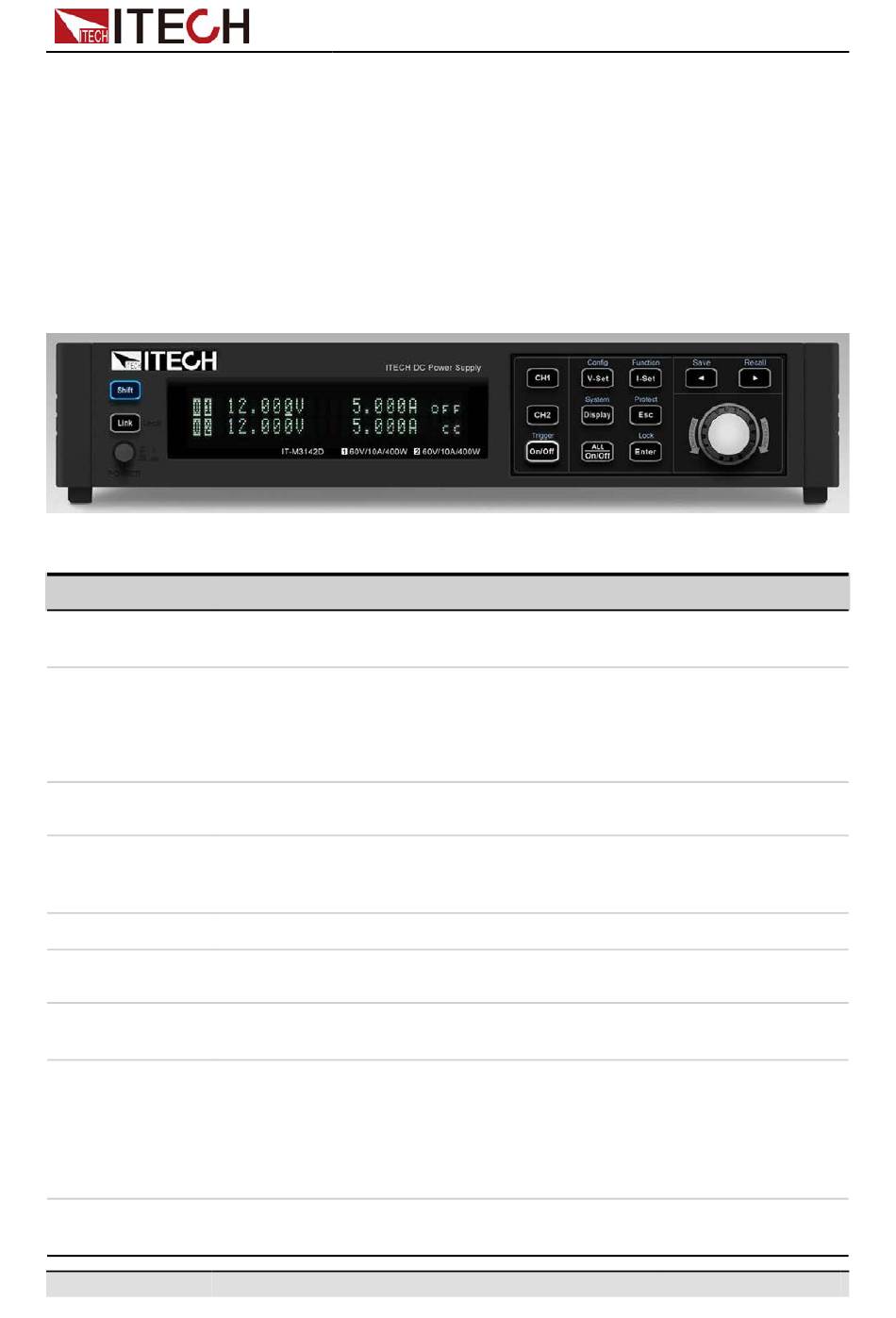

All of the IT-M3100D series power supplies have the same front panels. The de-
tailed descriptions are shown as below.
Name
[Shift] key
[Link] (Local) key
Power On/Off
switch
Vacuum fluores-
cent display
(VFD)
CH1/CH2
[On/Off] key
Function keys
group
Push-on knob
Left, and right ar-
row keys
Multichannel operation
Supporting various optional interfaces: GPIB/ USB/ RS-485/ RS-232/ CAN/
LAN/ External analog interface
Description
Composite key, combined with other keys to realize functions marked
above keys.
•
Turn the synchronized operation feature on or off. When lit, indicates
that the instrument is in the synchronous relationship.
•
In remote control, press [Shift]+[Link] keys to switch the instrument to
local control mode.
Turns instrument on or off.
Displays all instrument functions. The information changes based on se-
lected function.
Channel switch key
Turns the instrument output on or off. When lit, indicates that the output is
enabled or on.
Refer to 1.3 Keyboard Introduction
function keys.
•
Rotate the knob to adjust the voltage and current values or scroll pages
to view menu items. Rotate the knob clockwise to increase the set value
and anticlockwise to decrease the set value.
•
Pushing the knob acts like pressing [Enter] key to confirm an
operation.
Moves the cursor below the setting value or scrolls pages to view menu
items.
