Summary of Contents for ITech IT-M3100

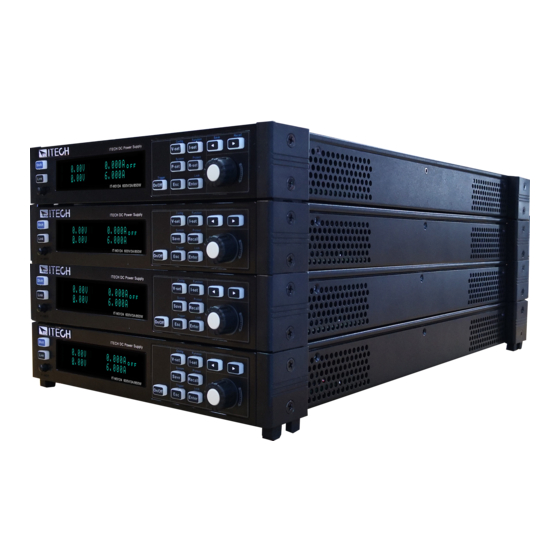

- Page 1 Programmable DC Power Supply IT-M3100 Programming Guide Model: IT-M3100 Version: V1.0 / 03, 2019...
- Page 2 Safety Notices Notices Warranty © Itech Electronic, Co., Ltd. 2019 The materials contained in this No part of this manual may be document are provided “as is” , and reproduced in any form or by any means A CAUTION sign denotes a...
-
Page 3: Warranty
IT-M3100 Programming Guide Quality Certification and Assurance We certify that IT-M3100 power supply meets all the published specifications at time of shipment from the factory. Warranty ITECH warrants that the product will be free from defects in material and workmanship under normal use for a period of one (1) year from the date of delivery (except those described in the Limitation of Warranty below). -
Page 4: Safety Precautions
Failure to comply with these precautions or specific warnings elsewhere in this manual will constitute a default under safety standards of design, manufacture and intended use of the instrument. ITECH assumes no liability for the customer’s failure to comply with these precautions. -
Page 5: Environmental Conditions
The instrument complies with the WEEE Directive (2002/96/EC) marking requirement. This affixed product label indicates that you must not discard the electrical/electronic product in domestic household waste. Copyright © Itech Electronic Co., Ltd. -
Page 6: Waste Electrical And Electronic Equipment (Weee) Directive
With reference to the equipment classifications described in the Annex I of the WEEE Directive, this instrument is classified as a “Monitoring and Control Instrument”. To return this unwanted instrument, contact your nearest ITECH office. Copyright © Itech Electronic Co., Ltd. -
Page 7: Compliance Information
Connection of the instrument to a test object may produce radiations beyond the specified limit. Use high-performance shielded interface cable to ensure conformity with the EMC standards listed above. Safety Standard IEC 61010-1:2010/ EN 61010-1:2010 Copyright © Itech Electronic Co., Ltd. -
Page 8: Table Of Contents
OUTPut:PONSetup[:STATe] <RST|LAST|LOFF> ......................10 [OUTPut:]PROTection:WDOG[:STATe] <Bool> ......................10 [OUTPut:]PROTection:WDOG:DELay [MINimum|MAXimum].................. 11 Chapter5 Measurement Commands ......................12 MEASure[:SCALar]:CURRent[:DC]? ........................... 12 FETCh[:SCALar]:CURRent[:DC]? ..........................12 MEASure[:SCALar]:POWer[:DC]? ..........................12 FETCh[:SCALar]:POWer[:DC]?........................... 13 MEASure[:SCALar]:VOLTage[:DC]? ........................... 13 FETCh[:SCALar]:VOLTage[:DC]? ..........................14 MEASure[:SCALar]:CAPacity? ........................... 14 Copyright © Itech Electronic Co., Ltd. - Page 9 [SOURce:]POWer[:LEVel][:IMMediate][:AMPLitude] <NRf+> .................. 32 [SOURce:]POWer:PROTection[:LEVel] <NRf+> ......................33 [SOURce:]POWer:PROTection:DELay <NRf+> ......................33 [SOURce:]POWer:PROTection:STATe <Bool> ......................34 [SOURce:]FUNCtion:MODE <FIXed|LIST|BATTery>....................34 [SOURce:]FUNCtion:PRIority <VOLTage|CURRent> ....................35 [SOURce:]APPLy <NRf+>,<NRf+> ..........................35 [SOURce:]EXTernal[:STATe] <bool> ........................... 36 [SOURce:]BLEeder[:STATe] ............................36 Copyright © Itech Electronic Co., Ltd.
- Page 10 LIST:FUNCtion <VOLTage|CURRent> ........................55 LIST:SAVE <NR1> ..............................55 LIST:RECall <NR1> ..............................56 LIST[:STATe] <bool> ..............................56 LIST:TERMinate <NORMal|LAST> ..........................57 LIST:PAUSe[:STATe] <BOOLEAN> ..........................57 LIST:RUN:STEP? ................................ 58 LIST:RUN:REPeat? ..............................58 Chapter10 Trace Commands ........................59 viii Copyright © Itech Electronic Co., Ltd.
- Page 11 STATus:QUEStionable:ENABle <NR1> ........................75 STATus:QUEStionable:NTRansition <NR1> ......................75 STATus:QUEStionable:PTRansition <NR1> ....................... 76 STATus:PRESet ................................. 76 Chapter15 Trigger Commands ........................78 TRIGger[:IMMediate] ............................... 78 TRIGger:SOURce <KEYPad|BUS|EXT> ........................78 TRIGger:PIN:DIRection <IN|OUT> ..........................79 Chapter16 Common Commands ........................ 80 Copyright © Itech Electronic Co., Ltd.
- Page 12 Example1: Identifying the Power Supply in Use ................... 88 Example2: Setting the Common Output Arguments ..................88 Example3: List Function ........................... 89 Example4: Battery Charging Test Function ....................90 Chapter18 Error Messages ......................... 91 Error List ................................... 91 Copyright © Itech Electronic Co., Ltd.
-
Page 13: Chapter1 Scpi Introduction
Multiple Commands in a Message Multiple SCPI commands can be combined and sent as a single message with one message terminator. There are two important considerations when sending several commands within a single Copyright © Itech Electronic Co., Ltd. - Page 14 Treat the common command as a message unit by separating it with a semicolon (the message unit separator). Common commands do not affect the header path; you may insert them anywhere in the message. VOLTage:TRIGgered 17.5;:INITialize;*TRG OUTPut OFF;*RCL 2;OUTPut ON Copyright © Itech Electronic Co., Ltd.
-
Page 15: Message Type Of Scpi
Response message: A response message consists of data in a specific SCPI format sent from the instrument to the controller. The instrument sends the message only when commanded by a program message called a "query." The next figure illustrates SCPI message structure: Copyright © Itech Electronic Co., Ltd. - Page 16 (<NL>), decimal 10 or hexadecimal 0X0A in ASCII. ⚫ end or identify (<END>) ⚫ both of the above (<NL><END>). In the examples of this guide, there is an assumed message terminator at the Copyright © Itech Electronic Co., Ltd.
-
Page 17: Response Data Type
Each response is terminated with an LF (line feed) and EOI (end or identify). The following example shows how a multiple response message is terminated: 0; 1; 1; 0; <RMT> Message exchange protocol Two rules summarize the message exchange protocol: Copyright © Itech Electronic Co., Ltd. -
Page 18: Command Format
2, "SOURce2" or "SOUR2" must be used in the program line. Colon (:) It is used to separate key words of a command with the key words in next level. As shown below: APPL:SIN 455E3,1.15,0.0 Copyright © Itech Electronic Co., Ltd. - Page 19 IEEE-488 EOI (End or Identify) information can be used as <NL> character to replace termination command string of <NL> character. It is acceptable to place one <NL> after a <Enter>. Termination of command string always resets current SCPI command path to root level. Copyright © Itech Electronic Co., Ltd.
-
Page 20: Data Type
"ON" or "1". In query of Boolean settings, the instrument will always return "0" or "1". Boolean parameter are required by the following commands: DISPlay {OFF|0|ON|1} ⚫ ASCII string parameter String parameter may actually include all ASCII character sets. Character Copyright © Itech Electronic Co., Ltd. -
Page 21: Remote Interface Connections
If the user want to change the settings of the instrument, for instance, the output setting value, the command SYST:REM must be sent to the instrument after finishing the connection between the instrument and PC. Copyright © Itech Electronic Co., Ltd. -
Page 22: Chapter2 Status Register
The instrument tried to read the output buffer but it was empty, a new command line was received before a previous query has been read, or both the input and output buffers are full. Copyright © Itech Electronic Co., Ltd. - Page 23 Output buffer available. Bit ESB is set to 1 when the status of an enabled standard event status. RQS/MSS Register changes. If the status of enabled operation OPER register changes, then this bit is set to1. Copyright © Itech Electronic Co., Ltd.
- Page 24 Status register The following figure shows the status register structure of the power supply. Copyright © Itech Electronic Co., Ltd.
-
Page 25: Chapter3 Channel Selection Commands
CHANnel? Returns INSTrument[:SELect] <NR1> This command selects the channel. The function is the same as the command CHANnel <NR1>. Syntax INSTrument[:SELect] <NR1> Arguments 1-16 Default value Not applicable Example INST 2 Query command INSTrument[:SELect]? Copyright © Itech Electronic Co., Ltd. -
Page 26: Channel:state?
Arguments 1-16 The channel number. Default value Not applicable Example CHANnel:STATe? 1 Query command 1 means the instrument of this channel is available and 0 means the instrument of this channel is not available. Copyright © Itech Electronic Co., Ltd. -
Page 27: Chapter4 Output Commands
Syntax OUTPut[:STATe] <bool> Arguments 0|OFF|1|ON Default value Example OUTP ON Query command OUTPut[:STATe]? Returns [OUTPut:]PROTection:CLEar This command clears the protection status. Syntax [OUTPut:]PROTection:CLEar Arguments None Default value Not applicable Example PROT:CLE Query command None Copyright © Itech Electronic Co., Ltd. -
Page 28: Output:delay[:On]
OUTP:DEL 1.0 Query command OUTPut:DELay[:ON]? [MINimum|MAXimum] Returns OUTPut:DELay:OFF <NRf+> This command sets the delay time after turning the output off. Syntax OUTPut:DELay:OFF <NRf+> Arguments <0.000-10.000> Default value 0.000S Example OUTP:DEL:OFF 1.0 Query command OUTPut:DELay:OFF? [MINimum|MAXimum] Copyright © Itech Electronic Co., Ltd. -
Page 29: Output:delay[:Rise]
This command sets the delay time after turning the output off. The function is the same OUTPut:DELay:OFF <NRf+>. as the command Syntax OUTPut:DELay:FALL <NRf+> Arguments <0.000-10.000> Default value 0.000S Example OUTP:DEL:FALL 1.0 Query command OUTPut:DELay:FALL? [MINimum|MAXimum] Copyright © Itech Electronic Co., Ltd. -
Page 30: [Output:]Timer[:State]
0|OFF|1|ON Default value Example TIM OFF Query command TIMer? Returns [OUTPut:]TIMer:DELay This command sets time of the output timer. Syntax [OUTPut:]TIMer:DELay <NRf+> Arguments < 1.0-86400.0> Default value 1.0s Example TIMer:DELay 3600 Query command TIM:DEL? Copyright © Itech Electronic Co., Ltd. -
Page 31: Output:ponsetup[:State]
Example OUTP:PONS LAST Query command OUTPut:PONSetup[:STATe]? Returns RST|LAST|LOFF [OUTPut:]PROTection:WDOG[:STATe] <Bool> This command enables or disables the state of the communication watchdog. Syntax [OUTPut:]PROTection:WDOG[:STATe] <Bool> Arguments 0|OFF|1|ON Default value Example PROT:WDOG ON Query command [OUTPut:]PROTection:WDOG[:STATe]? Copyright © Itech Electronic Co., Ltd. -
Page 32: [Output:]Protection:wdog:delay [Minimum|Maximum]
Output Commands Returns [OUTPut:]PROTection:WDOG:DELay [MINimum|MAXimum] This command sets the time of the communication watchdog. Syntax [OUTPut:]PROTection:WDOG:DELay [MINimum|MAXimum] Arguments <NRf+> 2.0-3600.0 Default value 2.0s Example PROT:WDOG:DEL 2.0 Query command [OUTPut:]PROTection:WDOG:DELay? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 33: Chapter5 Measurement Commands
MEAS:CURR? Returns FETCh[:SCALar]:CURRent[:DC]? This command reads the latest current to be processed from sampling buffer. Syntax FETCh[:SCALar]:CURRent[:DC]? Arguments None Default value Not applicable Example FETC:CURR? Returns MEASure[:SCALar]:POWer[:DC]? This command queries the present power measurement. Copyright © Itech Electronic Co., Ltd. -
Page 34: Fetch[:Scalar]:Power[:Dc]
This command reads the latest power value from the sampling buffer.. Syntax FETCh[:SCALar]:POWer[:DC]? Arguments None Default value Not applicable Example FETC:POW? Returns MEASure[:SCALar]:VOLTage[:DC]? This command queries the newly measured voltage. Syntax MEASure[:SCALar]:VOLTage[:DC]? Arguments None Copyright © Itech Electronic Co., Ltd. -
Page 35: Fetch[:Scalar]:Voltage[:Dc]
This command reads the latest preprocessed voltage value from sampling buffer. Syntax FETCh[:SCALar]:VOLTage[:DC]? Arguments None Default value Not applicable Example FETC:VOLT? Returns MEASure[:SCALar]:CAPacity? This command queries the charging capacity of the battery. Syntax MEASure[:SCALar]:CAPacity? Arguments None Default value Not applicable Example MEAS:CAP? Copyright © Itech Electronic Co., Ltd. -
Page 36: Fetch[:Scalar]:Capacity
This command queries present voltage measurement, current measurement and power measurement Syntax MEASure? Arguments None Default value Not applicable Example MEAS? Returns NRf,NRf,NRf FETCh? This command reads the latest preprocessed capacity voltage value, current Copyright © Itech Electronic Co., Ltd. -
Page 37: Fetch:time
Syntax FETCh? Arguments None Default value Not applicable Example FETC? Returns NRf,NRf,NRf FETCh:TIME? This command queries the output time when the timer starts. Syntax FETCh:TIME? Arguments None Default value Not applicable Example FETC:TIME? Returns Copyright © Itech Electronic Co., Ltd. -
Page 38: Chapter6 Sense Commands
SENSe[:REMote][:STATe] <bool> Arguments 0|OFF|1|ON Default value Example SENS ON Query command SENSe[:REMote][:STATe]? Returns SENSe:FILTer:LEVel <SLOW|MEDium|FAST> This command sets the sense filter level. Syntax SENSe:FILTer:LEVel <SLOW|MEDium|FAST> Arguments <CPD> SLOW|MEDium|FAST Default value Not applicable Example SENS:FILT:LEV MED Copyright © Itech Electronic Co., Ltd. -
Page 39: Sense:ahour:clear
Sense Commands Query command SENSe:FILTer:LEVel? Returns SLOW|MEDium|FAST SENSe:AHOur:CLEar This command clears the charging capacity. Syntax SENSe:AHOur:CLEar Arguments None Default value Not applicable Example SENS:AHO:CLE Query command None Returns None Copyright © Itech Electronic Co., Ltd. -
Page 40: Chapter7 Source Commands
Query command [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] <NRf+> This command sets the output current value when the power supply receives a trigger. Syntax [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] <NRf+> Arguments <NRf+> MIN TO MAX Default value Example CURR:TRIG 3.500 Copyright © Itech Electronic Co., Ltd. -
Page 41: [Source:]Current[:Over]:Protection[:Level]
<NRf+> MIN TO MAX Default value Example CURR:PROT 3.500 Query command [SOURce:]CURRent[:OVER]:PROTection[:LEVel]? [MINimum|MAXimum] Returns [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> This command sets the over-current delay time of the power supply. Syntax [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> Arguments <0.00-10.00> Default value 10.00S Copyright © Itech Electronic Co., Ltd. -
Page 42: [Source:]Current[:Over]:Protection:state
Syntax [SOURce:]CURRent[:OVER]:PROTection:STATe <bool> Arguments 0|OFF|1|ON Default value Example CURR:PROT:STAT ON Query command [SOURce:]CURRent[:OVER]:PROTection:STATe? Returns [SOURce:]CURRent:UNDer:PROTection[:LEVel] <NRf+> This command sets the under-current limit of the power supply. Syntax [SOURce:]CURRent:UNDer:PROTection[:LEVel] <NRf+> Arguments <NRf+> MIN TO MAX Copyright © Itech Electronic Co., Ltd. -
Page 43: [Source:]Current:under:protection:delay
This command sets the under-current delay time of the power supply. Syntax [SOURce:]CURRent:UNDer:PROTection:DELay <NRf+> Arguments <0.00-10.00> Default value 10.00S Example CURR:UND:PROT:DEL 10.000 Query command [SOURce:]CURRent:UNDer:PROTection:DELay? [MINimum|MAXimum] Returns <NR3> [SOURce:]CURRent:UNDer:PROTection:STATe <bool> This command enables or disables the under-current function. Syntax [SOURce:]CURRent:UNDer:PROTection:STATe <bool> Arguments <0|OFF|1|ON> Copyright © Itech Electronic Co., Ltd. -
Page 44: [Source:]Current:under:protection:warm
Arguments <0.00-30.00> Default value 30.00S Example CURR:UND:PROT:WARM 10.000 Query command [SOURce:]CURRent:UNDer:PROTection:WARM? [MINimum|MAXimum] Returns [SOURce:]CURRent:SLEW[:BOTH] <NRf+>,<NRf+> This command sets the current rising and falling slew rate of the power supply. Syntax [SOURce:]CURRent:SLEW[:BOTH] <NRf+>,<NRf+> Arguments <0.025-9.999>,<0.025-9.999> Copyright © Itech Electronic Co., Ltd. -
Page 45: [Source:]Current:slew:negative
[SOURce:]CURRent:SLEW:NEGative <NRf+> Arguments <0.025-9.999> Default value 0.100S Example CURR:SLEW:NEG 1.000 Query command [SOURce:]CURRent:SLEW:NEGative? [MINimum|MAXimum] Returns [SOURce:]CURRent:SLEW:POSitive <NRf+> This command sets the current rising slew rate of the power supply. Syntax [SOURce:]CURRent:SLEW:POSitive <NRf+> Arguments <0.025-9.999> Copyright © Itech Electronic Co., Ltd. -
Page 46: [Source:]Voltage[:Level][:Immediate][:Amplitude]
Arguments <NRf+> MIN TO MAX Default value Example VOLT 10.00 Query command [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] <NRf+> This command sets the output voltage value when the power supply receives a trigger. Syntax [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] <NRf+> Copyright © Itech Electronic Co., Ltd. -
Page 47: [Source:]Voltage:slew[:Both]
Syntax [SOURce:]VOLTage:SLEW[:BOTH] <NRf+>,<NRf+> Arguments <0.025-9.999>,<0.025-9.999> Default value 0.025,0.100 Example VOLT:SLEW 0.03,0.03 Query command [SOURce:]VOLTage:SLEW[:BOTH]? [MINimum|MAXimum],[MINimum|MAXimum] Returns <NR3>,<NR3> [SOURce:]VOLTage:SLEW:NEGative <NRf+> This command sets the voltage falling slew rate of the power supply. Syntax [SOURce:]VOLTage:SLEW:NEGative <NRf+> Copyright © Itech Electronic Co., Ltd. -
Page 48: [Source:]Voltage:slew:positive
This command sets the voltage rising slew rate of the power supply. Syntax [SOURce:]VOLTage:SLEW:POSitive <NRf+> Arguments <0.025-9.999> Default value 0.025S Example VOLT:SLEW:POS 0.03 Query command [SOURce:]VOLTage:SLEW:POSitive? [MINimum|MAXimum] Returns [SOURce:]VOLTage[:OVER]:PROTection[:LEVel] <NRf+> This command sets the over-voltage limit of the power supply. Syntax [SOURce:]VOLTage[:OVER]:PROTection[:LEVel] <NRf+> Copyright © Itech Electronic Co., Ltd. -
Page 49: [Source:]Voltage[:Over]:Protection:delay
This command sets the over-voltage delay time of the power supply. Syntax [SOURce:]VOLTage[:OVER]:PROTection:DELay <NRf+> Arguments <0.00-10.00> Default value 10.00S Example VOLT:PROT:DEL 10.00 Query command [SOURce:]VOLTage[:OVER]:PROTection:DELay? [MINimum|MAXimum] Returns [SOURce:]VOLTage[:OVER]:PROTection:STATe <bool> This command enables or disables the over-voltage function. Copyright © Itech Electronic Co., Ltd. -
Page 50: [Source:]Voltage:under:protection[:Level]
Query command [SOURce:]VOLTage[:OVER]:PROTection:STATe? Returns [SOURce:]VOLTage:UNDer:PROTection[:LEVel] <NRf+> This command sets the under-voltage limit of the power supply. Syntax [SOURce:]VOLTage:UNDer:PROTection[:LEVel] <NRf+> Arguments <NRf+> MIN TO MAX Default value Example VOLT:UND:PROT 10.00 Query command [SOURce:]VOLTage:UNDer:PROTection[:LEVel]? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 51: [Source:]Voltage:under:protection:delay
Default value 10.00S Example VOLT:UND:PROT:DEL 10.00 Query command [SOURce:]VOLTage:UNDer:PROTection:DELay? [MINimum|MAXimum] Returns [SOURce:]VOLTage:UNDer:PROTection:STATe <bool> This command enables or disables the under-voltage function. Syntax [SOURce:]VOLTage:UNDer:PROTection:STATe <bool> Arguments 0|OFF|1|ON Default value Example VOLT:UND:PROT:STAT ON Query command [SOURce:]VOLTage:UNDer:PROTection:STATe? Returns Copyright © Itech Electronic Co., Ltd. -
Page 52: [Source:]Voltage:under:protection:warm
This command sets the maximum setting voltage limit of the power supply. Syntax [SOURce:]VOLTage[:LEVel]:LIMit[:HIGH] <NRf+> Arguments <NRf+> MIN TO MAX Default value MAX Limit value Example VOLT:LIM 610.00 Query command [SOURce:]VOLTage[:LEVel]:LIMit[:HIGH]? [MINimum|MAXimum] Returns <NR3> Copyright © Itech Electronic Co., Ltd. -
Page 53: [Source:]Voltage[:Level]:Limit:low
This command sets the maximum power value of the power supply. The query form of this command gets the power value of the power supply. Syntax [SOURce:]POWer[:LEVel][:IMMediate][:AMPLitude] <NRf+> Arguments <NRf+> MIN TO MAX Default value Example POW 860.0 Query command [SOURce:]POWer[:LEVel][:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 54: [Source:]Power:protection[:Level]
Query command [SOURce:]POWer:PROTection[:LEVel]? [MINimum|MAXimum] Returns [SOURce:]POWer:PROTection:DELay <NRf+> This command sets the over-power delay time of the power supply. Syntax [SOURce:]POWer:PROTection:DELay <NRf+> Arguments <0.00-10.00> Default value 10.00S Example POW:PROT:DEL 10.00 Query command [SOURce:]POWer:PROTection:DELay? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 55: [Source:]Power:protection:state
POW:PROT:STAT ON Query command [SOURce:]POWer:PROTection:STATe? Returns [SOURce:]FUNCtion:MODE <FIXed|LIST|BATTery> This command sets the operating modes of the power supply. Syntax [SOURce:]FUNCtion:MODE <FIXed|LIST|BATTery> Arguments <FIXed|LIST|BATTery> Default value FIXed Example FUNC:MODE LIST Query command [SOURce:]FUNCtion:MODE? Returns FIXed|LIST|BATTery Copyright © Itech Electronic Co., Ltd. -
Page 56: [Source:]Function:priority
This command sets voltage and current values with a single command message Syntax [SOURce:]APPLy <NRf+>,<NRf+> Arguments <NRf+> voltage value MIN TO MAX <NRf+> current value MIN TO MAX Default value MIN,MAX Example APPL 10.00,3.500 Query command [SOURce:]APPLy? Returns NR3,NR3 Copyright © Itech Electronic Co., Ltd. -
Page 57: [Source:]External[:State]
Not applicable Example EXT 1 Query command [SOURce:]EXTernal[:STATe]? Returns [SOURce:]BLEeder[:STATe] This command enables or disables the bleeder circuit function. Syntax [SOURce:]BLEeder[:STATe] <bool> Arguments 0|OFF|1|ON Default value Not applicable Example BLE ON Query command [SOURce:]BLEeder[:STATe]? Returns Copyright © Itech Electronic Co., Ltd. -
Page 58: Chapter8 System Commands
Query command None Returns None SYSTem:BEEPer[:STATe] <bool> This command enables or disables the beeper function of the power supply. Syntax SYSTem:BEEPer[:STATe] <bool> Arguments 0|OFF|1|ON Default value Not applicable Example SYST:BEEP 1 Query command SYSTem:BEEPer[:STATe]? Copyright © Itech Electronic Co., Ltd. -
Page 59: System:version
- > SYST:VERS? < - "1993.1" Note ⚫ “ - >” indicates the commands that you send to the IT-M3100 power supply. ⚫ “< -” indicates the response from the IT-M3100 power supply. Returns AARD SYSTem:ERRor? This command reads the error code and error information.. -
Page 60: System:clear
System Commands Note ⚫ “ - >” indicates the commands that you send to the IT-M3100 power supply. ⚫ “< -” indicates the response from the IT-M3100 power supply. Returns AARD SYSTem:CLEar This command clears the system status register. Syntax... -
Page 61: System:local
This command locks the power supply in remote control mode. When this command is executed, pressing the LOCAL button does not switch the instrument to local control mode. Syntax SYSTem:RWLock Arguments None Default value Not applicable Example SYST:RWL Copyright © Itech Electronic Co., Ltd. -
Page 62: System:key
Recall Shift Enter On/Off Left V-set Right Save Decrease Increase I-set Default value Not applicable Example SYST:KEY 5 Query command SYSTem:KEY? Returns SYSTem:REBoot This command is used to perform a device reboot. Syntax SYSTem:REBoot Copyright © Itech Electronic Co., Ltd. -
Page 63: System:communicate:gpib[:Self]:Address
Syntax SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <NR1> Arguments NR1 <0-30> Default value Not applicable Example SYST:COMM:GPIB:ADDR 14 Query command SYSTem:COMMunicate:GPIB[:SELF]:ADDRess? Returns NR1 0-30 SYSTem:COMMunicate:LAN:CURRent:ADDRess <SPD> This command sets the IP address of the power supply. Syntax SYSTem:COMMunicate:LAN:CURRent:ADDRess <SPD> Copyright © Itech Electronic Co., Ltd. -
Page 64: System:communicate:lan:current:dgateway
This command sets the gateway of the power supply. Syntax SYSTem:COMMunicate:LAN:CURRent:DGATeway <SPD> Arguments "<0-255>,<0-255>,<0-255>,<0-255>" Default value Not applicable Example SYST:COMM:LAN:CURR:DGAT “192.168.0.1” Query command SYSTem:COMMunicate:LAN:CURRent:DGATeway? Returns <SRD> SYSTem:COMMunicate:LAN:CURRent:SMASk <SPD> This command sets the subnet mask of the power supply. Syntax SYSTem:COMMunicate:LAN:CURRent:SMASk <SPD> Copyright © Itech Electronic Co., Ltd. -
Page 65: System:communicate:lan:dhcp
This command enables or disables the dynamic IP address function. Syntax SYSTem:COMMunicate:LAN:DHCP <Bool> Arguments <0|OFF|1|ON> Default value Not applicable Example SYST:COMM:LAN:DHCP 1 Query command SYSTem:COMMunicate:LAN:DHCP? Returns SYSTem:COMMunicate:LAN:SOCKetport <NR1> This command sets the socket port for the LAN communication. Syntax SYSTem:COMMunicate:LAN:SOCKetport <NR1> Copyright © Itech Electronic Co., Ltd. -
Page 66: System:communicate:lan:macaddress
- > SYST:COMM:LAN:MAC? < - "12:34:56:79:99:AA" Note ⚫ “ - >” indicates the commands that you send to the IT-M3100 power supply. ⚫ “< -” indicates the response from the IT-M3100 power supply. Returns SYSTem:COMMunicate:LAN:RESTart This command resets the LAN arguments. -
Page 67: System:communicate:serial:baudrate
This command sets the baud rate of the serial port. Syntax SYSTem:COMMunicate:SERial:BAUDrate Arguments <4800|9600|19200|38400|57600|115200> Default value Not applicable Example SYST:COMM:SER:BAUD 9600 Query command SYSTem:COMMunicate:SERial:BAUDrate? Returns 4800|9600|19200|38400|57600|115200 SYSTem:COMMunicate:LAN:DNS1 <SPD> This command sets DNS primary address for LAN. Copyright © Itech Electronic Co., Ltd. -
Page 68: System:communicate:lan:dns2
This command sets DNS secondary address for LAN. Syntax SYSTem:COMMunicate:LAN:DNS2 <SPD> Arguments "<0-255>,<0-255>,<0-255>,<0-255>" Default value Not applicable Example SYST:COMM:LAN:DNS1 "192.168.0.2" Query command SYSTem:COMMunicate:LAN:DNS2? Returns <SRD> SYSTem:COMMunicate:LAN:RESTore This command resets the LAN settings to default settings. Copyright © Itech Electronic Co., Ltd. -
Page 69: System:communicate:lan:reset
Query command None Returns None SYSTem:COMMunicate:LAN:RESet This command makes the LAN settings valid. Syntax SYSTem:COMMunicate:LAN:RESet Arguments None Default value Not applicable Example SYST:COMM:LAN:RES Query command None Returns None SYSTem:COMMunicate:LAN:STATe? This command queries the LAN state. Copyright © Itech Electronic Co., Ltd. -
Page 70: System:communicate:lan:hostname
This command queries the host name in the LAN communication. Syntax SYSTem:COMMunicate:LAN:HOSTname? Arguments None Default value Not applicable Example SYST:COMM:LAN:HOST? Returns <SRD> SYSTem:COMMunicate:LAN:DESCription? This command queries the host name description in the LAN communication. Syntax SYSTem:COMMunicate:LAN:DESCription? Arguments None Copyright © Itech Electronic Co., Ltd. -
Page 71: System:communicate:lan:domain
This command queries the domain in the LAN communication. Syntax SYSTem:COMMunicate:LAN:DOMain? Arguments None Default value Not applicable Example SYST:COMM:LAN:DOM? Returns <SRD> SYSTem:READy? This command indicates whether the instrument is ready or not. Syntax SYSTem:READy? Arguments None Default value Not applicable Example SYST:READ? Copyright © Itech Electronic Co., Ltd. - Page 72 System Commands Returns Copyright © Itech Electronic Co., Ltd.
-
Page 73: Chapter9 List Commands
LIST:STEP:COUNt? Returns LIST:STEP:VOLTage <NR1>,<NRf+> This command sets the voltage value of the nth step in the list program. Syntax LIST:STEP:VOLTage <NR1>,<NRf+> Arguments <1-100>,<MINimum-MAXimum|MINimum|MAXimum> Default value Not applicable Example LIST:STEP:VOLT 1,100.00 Query command LIST:STEP:VOLTage? <NR1> Copyright © Itech Electronic Co., Ltd. -
Page 74: List:step:current
Returns LIST:STEP:SLEW <NR1>,<NRf+> This command sets the slew rate value of the nth step in the list program. Syntax LIST:STEP:SLEW <NR1>,<NRf+> Arguments <1-100>,<MINimum-MAXimum|MINimum|MAXimum> Default value Not applicable Example LIST:STEP:SLEW 1,1.000 Query command LIST:STEP:SLEW? <NR1> Copyright © Itech Electronic Co., Ltd., -
Page 75: List:step:width
Not applicable Example LIST:STEP:WIDT 1,1.000 Query command LIST:STEP:WIDTh? <NR1> Returns LIST:REPeat <NR1> This command sets the number of list repetitions. Syntax LIST:REPeat <NR1> Arguments <MINimum-MAXimum|MINimum|MAXimum> Default value Not applicable Example LIST:REP 3 Query command LIST:REPeat? Copyright © Itech Electronic Co., Ltd., -
Page 76: List:function
LIST:FUNC VOLT Query command LIST:FUNCtion? Returns VOLTage|CURRent LIST:SAVE <NR1> This command saves the present list program into the specified memory. Syntax LIST:SAVE <NR1> Arguments <1-10> Default value Not applicable Example LIST:SAVE 1 Query command None Copyright © Itech Electronic Co., Ltd. -
Page 77: List:recall
Not applicable Example LIST:REC 1 Query command None Returns LIST[:STATe] <bool> This command enables or disables the list function. Syntax LIST[:STATe] <bool> Arguments <0|OFF|1|ON > Default value Not applicable Example LIST ON Query command LIST[:STATe]? Copyright © Itech Electronic Co., Ltd. -
Page 78: List:terminate
LIST:TERM NORM Query command LIST:TERMinate? Returns NORMal|LAST LIST:PAUSe[:STATe] <BOOLEAN> This command sets the pause state of the list program. Syntax LIST:PAUSe[:STATe] <BOOLEAN> Arguments <0|OFF|1|ON> Default value Not applicable Example LIST:PAUS 1 Query command LIST:PAUSe[:STATe]? Copyright © Itech Electronic Co., Ltd. -
Page 79: List:run:step
Syntax LIST:RUN:STEP? Arguments None Default value Not applicable Example LIST:RUN:STEP? Returns LIST:RUN:REPeat? This command queries the present repetitions of the running list program. Syntax LIST:RUN:REPeat? Arguments None Default value Not applicable Example LIST:RUN:REP? Returns Copyright © Itech Electronic Co., Ltd. -
Page 80: Chapter10 Trace Commands
Arguments None Default value Not applicable Example TRAC:CLE Query command None Returns None TRACe:POINts <NR1> This command is used to specify cache size. Syntax TRACe:POINts <NR1> Arguments <2-2500>|MINimum|MAXimum Default value 1000 Example TRAC:POIN MAX Copyright © Itech Electronic Co., Ltd. -
Page 81: Trace:feed:control
CURRent is selected, the current reading is saved in cache. If VOLTage and CURRent are simultaneously selected, both voltage and current are saved in cache when saving is executed. Syntax TRACe:FEED[:SELected] <VOLTage|CURRent|BOTH> Arguments <CPD> VOLTage|CURRent|BOTH Copyright © Itech Electronic Co., Ltd. -
Page 82: Trace:delay
This command selects cache delay time. Syntax TRACe:DELay <NRf+> Arguments 0 to 3600s|MINimum|MAXimum Default value 0.000S Example TRAC:DEL MINimum Query command TRACe:DELay? Returns TRACe:TIMer <NRf+> This command selects cache time interval. Syntax TRACe:TIMer <NRf+> Arguments <0.00005-3600> MINimum-MAXimum|MINimum|MAXimum Copyright © Itech Electronic Co., Ltd. -
Page 83: Trace:points:actual
And the argument of the command TRACe:FEED:CONTrol <NEXT|ALWays|NEVer> must be set to NEXT or ALWays, otherwise the system will prompt an error. Syntax TRACe:DATA? Copyright © Itech Electronic Co., Ltd. -
Page 84: Trace:filter[:State]
Trace Commands Arguments None Default value Not applicable Example TRACe:DATA? Returns {<NR3>,<NR3>,<NR3>,<NR3>...,<NR3>} TRACe:FILTer[:STATe] This command enables or disables the filter. Syntax TRACe:FILTer[:STATe] Arguments <0|OFF|1|ON> Default value Example TRAC:FILT 1 Query command TRACe:FILTer[:STATe]? Returns Copyright © Itech Electronic Co., Ltd. -
Page 85: Chapter11 Battery Commands
Not applicable Example BATT:CHAR:VOLT 5.0 Query command BATTery:CHARge:VOLTage? [MINimum|MAXimum] Returns BATTery:CHARge:CURRent <NRf+> This command sets the charging current. Syntax BATTery:CHARge:CURRent <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Default value Not applicable Example BATT:CHAR:CURR 3.0 Query command BATTery:CHARge:CURRent? [MINimum|MAXimum] Copyright © Itech Electronic Co., Ltd. -
Page 86: Battery:stop:voltage
Not applicable Example BATT:STOP:VOLT 4.0 Query command BATTery:STOP:VOLTage? [MINimum|MAXimum] Returns BATTery:STOP:CURRent <NRf+> This command sets the cut off current. Syntax BATTery:STOP:CURRent <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Default value Not applicable Example BATT:STOP:CURR 3.0 Query command BATTery:STOP:CURRent? [MINimum|MAXimum] Copyright © Itech Electronic Co., Ltd. -
Page 87: Battery:stop:capacity
Not applicable Example BATT:STOP:CAP 3.0 Query command BATTery:STOP:CAPacity? [MINimum|MAXimum] Returns BATTery:STOP:TIME <NRf+> This command sets the charging time. Syntax BATTery:STOP:TIME <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Default value Not applicable Example BATT:STOP:TIME 3.0 Query command BATTery:STOP:TIME? [MINimum|MAXimum] Copyright © Itech Electronic Co., Ltd. -
Page 88: Battery[:State]
Battery Commands Returns BATTery[:STATe] This command enables or disables the battery function. Syntax BATTery[:STATe] Arguments <0|OFF|1|ON> Default value Not applicable Example BATT 1 Query command BATTery[:STATe]? Returns Copyright © Itech Electronic Co., Ltd. -
Page 89: Chapter12 Parallel Commands
<CPD> SINGle|SLAVe|MASTer Default value Not applicable Example PAR:ROLE SLAV Query command PARallel:ROLE? Returns SINGle|SLAVe|MASTer PARallel:GROup <NR1> This command specifies the parallel group. Syntax PARallel:GROup <NR1> Arguments <A|B|C|D|E|F|G|H|I|J|K|L|M|N|O|P> Default value Not applicable Example PAR:GRO A Copyright © Itech Electronic Co., Ltd. -
Page 90: Parallel[:Unit]:Number
Query command PARallel:GROup? Returns PARallel[:UNIT]:NUMBer <NR1> This command sets the total instrument number in the parallel operation. Syntax PARallel[:UNIT]:NUMBer <NR1> Arguments <1 to 4> Default value Not applicable Example PAR:NUMB 3 Query command PARallel[:UNIT]:NUMBer? Returns Copyright © Itech Electronic Co., Ltd. -
Page 91: Chapter13 Link Commands
Example LINK:MODE OUTP Query command LINK:MODE? Returns <CPD> OUTPut|TRACk|DUPLicate LINK[:STATe] <bool> This command enables or disables the link function. Syntax LINK[:STATe] <bool> Arguments <0|OFF|1|ON> Default value Not applicable Example LINK ON Query command LINK[:STATe]? Copyright © Itech Electronic Co., Ltd. -
Page 92: Link:reference
Link Commands Returns LINK:REFerence <NRf+> This command sets reference proportion of the link mode. Syntax LINK:REFerence <NRf+> Arguments <0.01-100.00> Default value Not applicable Example LINK:REF 3 Query command LINK:REFerence? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd. -
Page 93: Chapter14 Status Commands
Syntax STATus:OPERation[:EVENt]? Arguments None Default value Not applicable Example STAT:OPER? Returns STATus:OPERation:CONDition? This command reads the Operation Condition Register of the status model. Syntax STATus:OPERation:CONDition? Arguments None Default value Not applicable Example STAT:OPER:COND? Returns Copyright © Itech Electronic Co., Ltd. -
Page 94: Status:operation:enable
Query command STATus:OPERation:ENABle? Returns STATus:OPERation:NTRansition <NR1> This command sets the negative value of the Operation Event Register. Syntax STATus:OPERation:NTRansition <NR1> Arguments <0 to 65535> Default value Not applicable Example STAT:OPER:NTR 16 Query command STATus:OPERation:NTRansition? Returns Copyright © Itech Electronic Co., Ltd. -
Page 95: Status:operation:ptransition
This command queries the Questionable Event Register of the status model. Syntax STATus:QUEStionable[:EVENt]? Arguments None Default value Not applicable Example STAT:QUES? Returns STATus:QUEStionable:CONDition? This command queries the Questionable Condition Register of the status model Copyright © Itech Electronic Co., Ltd. -
Page 96: Status:questionable:enable
This command sets the Questionable Event Enable Register (QENR) of the status model Syntax STATus:QUEStionable:ENABle <NR1> Arguments <0 to 65535> Default value Not applicable Example STAT:QUES:ENAB 24 Query command STATus:QUEStionable:ENABle? Returns STATus:QUEStionable:NTRansition <NR1> This command sets the negative value of the Questionable Event Register. Copyright © Itech Electronic Co., Ltd. -
Page 97: Status:questionable:ptransition
This command sets the positive value of the Questionable Event Register. Syntax STATus:QUEStionable:PTRansition <NR1> Arguments <0 to 65535> Default value Not applicable Example STAT:QUES:PTR 32 Query command STATus:QUEStionable:PTRansition? Returns STATus:PRESet This command resets all bits in the status model. Copyright © Itech Electronic Co., Ltd. - Page 98 Status Commands Syntax STATus:PRESet Arguments None Default value Not applicable Example STAT:PRES Query command None Returns None Copyright © Itech Electronic Co., Ltd.
-
Page 99: Chapter15 Trigger Commands
Syntax TRIGger[:IMMediate] Arguments None Default value Not applicable Example TRIG Query command None Returns None TRIGger:SOURce <KEYPad|BUS|EXT> This command sets the trigger source. Syntax TRIGger:SOURce <KEYPad|BUS|EXT> Arguments <CPD> KEYPad|BUS|EXT Default value Example TRIG:SOUR KEYP Copyright © Itech Electronic Co., Ltd. -
Page 100: Trigger:pin:direction
This command sets the status of the instrument's rear panel TRIG± interface to receive or send high and low levels. Syntax TRIGger:PIN:DIRection <IN|OUT> Arguments <CPD> IN|OUT Default value Example TRIG:PIN:DIR IN Query command TRIGger:PIN:DIRection? Returns IN|OUT Copyright © Itech Electronic Co., Ltd. -
Page 101: Chapter16 Common Commands
The ESER is an eight-bit register that determines which bits in the Standard Event Status Register (SESR) will set the Event Summary Bit (ESB) in the Status Byte Register (SBR). Syntax *ESE <NRf> Arguments 0 to 255 Default value Copyright © Itech Electronic Co., Ltd. -
Page 102: Esr
See also *CLS *ESE *ESE? *OPC *IDN? This command reads information that identifies the power supply. It returns a parameter that contains four segments divided by a comma. Example: ITECH Ltd., IT3100, 60234567890123456, 1.01-1.02-1.03. Copyright © Itech Electronic Co., Ltd. -
Page 103: Opc
- > *IDN? < - ITECH Ltd.,IT3100,60234567890123456,1.01-1.02-1.03 Note ⚫ “ - >” indicates the commands that you send to the IT-M3100 power supply. ⚫ “< -” indicates the response from the IT-M3100 power supply. Returns AARD *OPC This command sets the Operation Complete (OPC) bit in the Standard Event Status Register to 1 when all other commands are complete. -
Page 104: Psc
*PSC 0 Query command *PSC? Returns *RCL This command recalls the setups you saved in the specified memory location. Syntax *RCL <NRf> Arguments <1-10> Default value Not applicable Example *RCL 1 Query command None Copyright © Itech Electronic Co., Ltd. -
Page 105: Rst
None Returns Not applicable *SAV This command saves the present setting values of the power supply into specified memory Syntax *SAV <NRf> Arguments <1-10> Default value Not applicable Example *SAV 1 Query command None Copyright © Itech Electronic Co., Ltd. -
Page 106: Sre
0 to 255 Default value Not applicable Example *SRE 255 Query command *SRE? Returns *STB? This command reads the data in the Status Byte Register (SBR). Syntax *STB? Arguments None Default value Not applicable Example *STB? Copyright © Itech Electronic Co., Ltd. -
Page 107: Trg
Default value Not applicable Example *TRG Query command None Returns None *TST? This command initiates a self-test and reports any errors. Query command *TST? Arguments None Default value Not applicable Example *TST? Returns NR1,<str> Copyright © Itech Electronic Co., Ltd. -
Page 108: Wai
Common Commands *WAI Pauses additional command processing until all pending operations are complete. Query command *WAI Arguments None Default value Not applicable Example *WAI Returns None Copyright © Itech Electronic Co., Ltd. -
Page 109: Chapter17 Programming Examples
PC. ⚫ “ - >” indicates the commands that you send to the IT-M3100 power supply. Example1: Identifying the Power Supply in Use You can verify whether you are communicating with the right IT-M3100 power supply. -
Page 110: Example3: List Function
To set the width value to 1 second for the first step in the list program, send the command: -> LIST:STEP:WIDT 1,1.000 To save the present list program into the List File 1, send the command: -> LIST:SAV 1 To enable the list function, send the command: Copyright © Itech Electronic Co., Ltd. -
Page 111: Example4: Battery Charging Test Function
To set the cut off capacity to 3 AH, send the command: -> BATT:STOP:CAP 3.0 To enable the battery charging test function, send the command: -> BATT ON or FUNC:MODE BATT To turn the output on, send the command: -> OUTP ON Copyright © Itech Electronic Co., Ltd. -
Page 112: Chapter18 Error Messages
"Macro error" "No error" "Module Initialization Lost" "Mainframe Initialization Lost" "Module Calibration Lost" "Eeprom failure" "RST checksum failed" "BACKUP RAM failed" "RAM selftest failed" "Front panel uart parity" "Front panel buffer overrun" "Front panel timeout" Copyright © Itech Electronic Co., Ltd. - Page 113 "CAL password is incorrect" "CAL not enabled" "readback cal are incorrect" "programming cal are incorrect" "Incorrect sequence of cal" "Commond only for rs232" "FETCH of data was not acquired" "Measurement overrange" "Sn Same Conflict" Copyright © Itech Electronic Co., Ltd.
- Page 114 Contact US Thank you for purchasing ITECH products. If you have any doubt about this product, please contact us as follow. 1. Please refer to the CD-ROM of related user’s manual in package. 2. Visit ITECH website www.itechate.com 3. Select the most convenient contact for further consultation.
