IT-M3900C SAS photovoltaic simulation power supply are as follows:
Voltage
Level

1.2 Front-Panel Overview

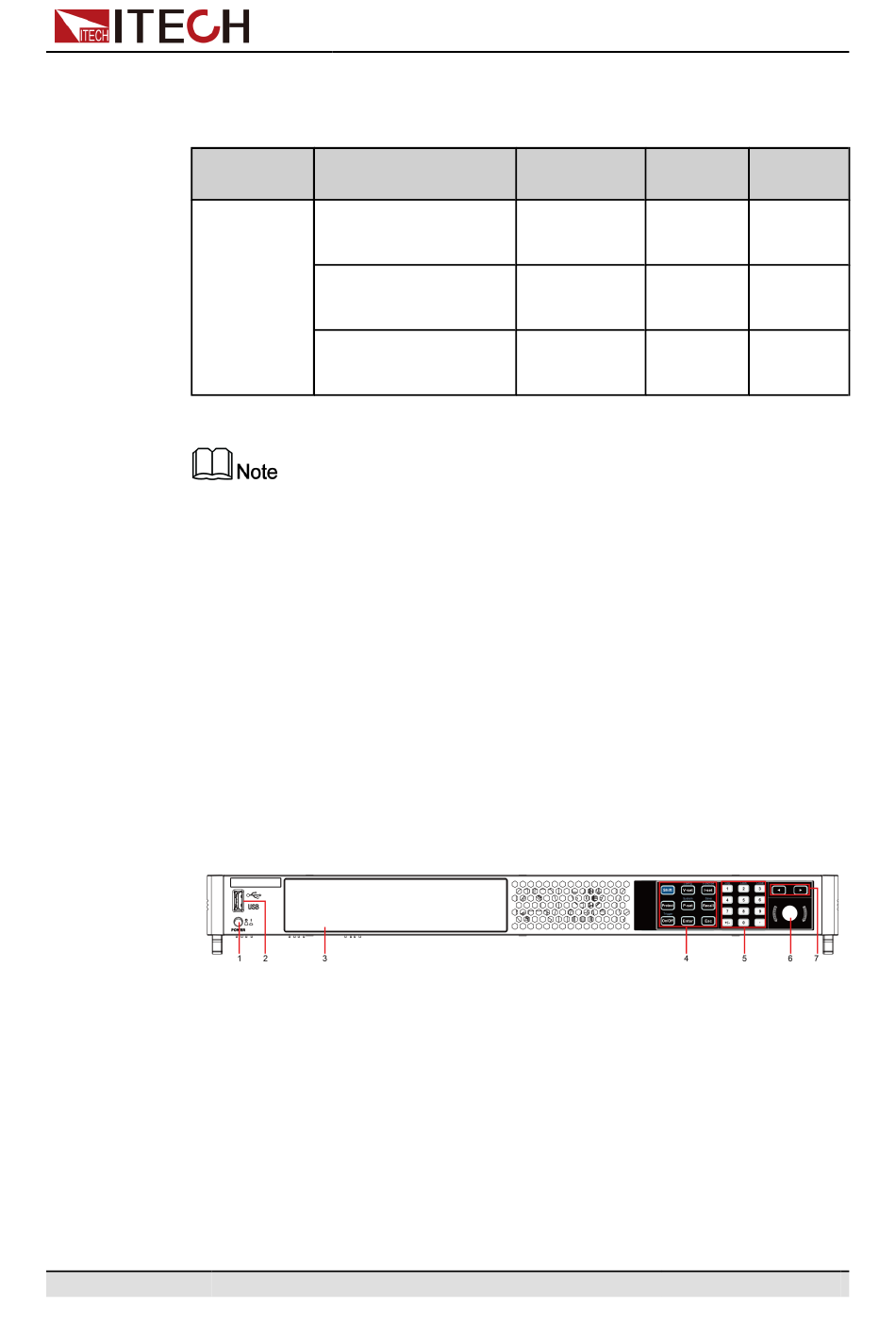

The front panel of this series of instruments is shown in the figure below.
1U Model
1 Power On/Off switch
2 USB storage device connec-
tion port
3 Vacuum fluorescent display
(VFD)
4 Function and composite keys
Model
IT-M3902C-80-40
SAS
IT-M3904C-80-80
85V
SAS
IT-M3906C-80-120
SAS
Naming rules for each series of model are as follows: IT-M39XXC-YYY-ZZZ,
wherein, XX means rated power; YYY means rated voltage; and ZZZ means
rated current.
As a bidirectional power supply, this series can output and absorb electric en-
ergy. The current and power input capacity is same as the output capacity.
For example, the maximum rated value of the output power of the IT3906C-
80-120 model is 6000W, and the maximum rated value of input power is also
6,000W.
Copyright © Itech Electronic Co., Ltd.
Current
40A
80A
120A
5 Numeric and composite keys
6 Push-on knob
7 Left, and right cursor navigation keys
Quick Reference
Power Height
2KW 1U
4KW 1U
6KW 1U
