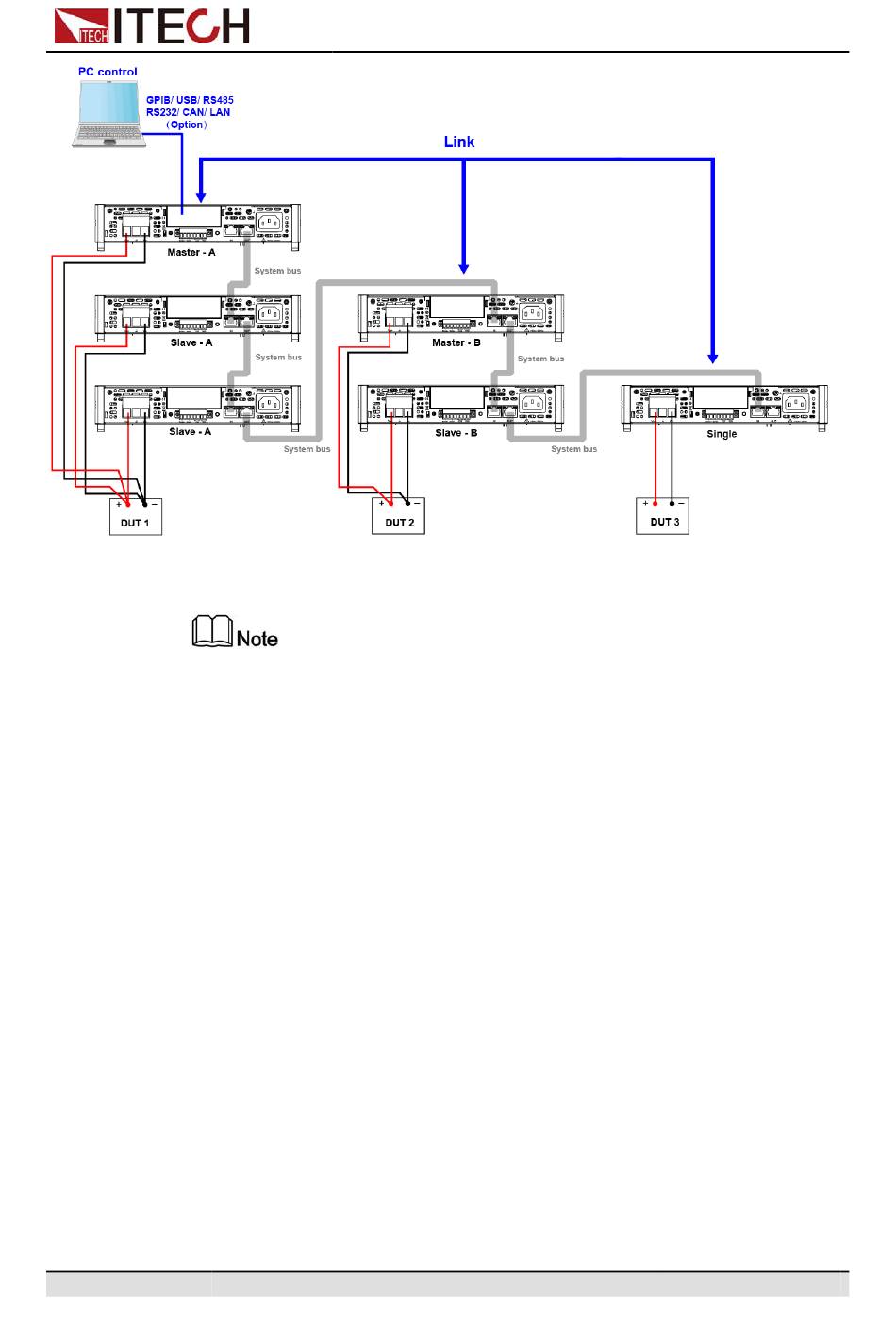

The rear panel shown in the figure is only an example. The actual appear-
ance of the rear panel is subject to the specific instrument.
1. Configure the channel number of each instrument. Please refer to
ti-Channel Function
2. Connect the instruments according to the above diagram.
a. Connect system bus interfaces.
b. Connect the DUTs. Refer to
for more information about connection methods.
3. Turn on the Link switch of each instrument in turns.
a. Press [Shift]+[Display] (System) to enter into the system menu
interface.
b. Use left and right keys or rotate the knob to select Link and press
[Enter] key to make the parameter in modification.
c. Rotate the knob to set Status and press [Enter] key to confirm.
•
Online: indicates the instrument is in the synchronized relationship.
•
Offline: indicates the instrument is not in the synchronized
relationship.
