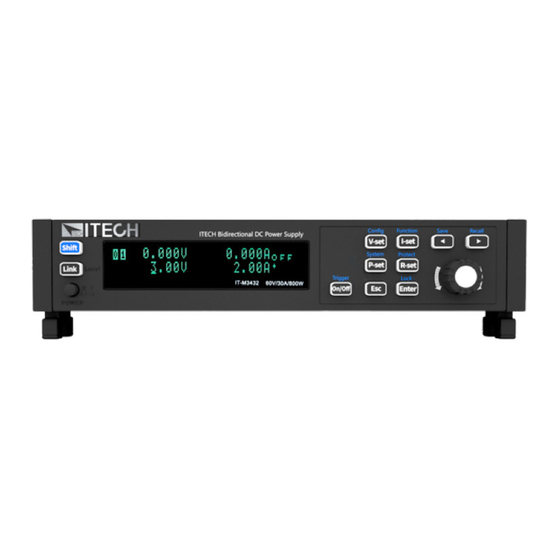

ITech IT-M3400 Series Programming Manual

Bi-directional dc power supply

Hide thumbs Also See for IT-M3400 Series:

User manual (153 pages)

Table Of Contents

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

page of 117

/ 117
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Bi-directional DC power supply

IT-M3400 Programming Guide

Model: IT-M3400 Series

Version: V1.0 / 07, 2020

Table of Contents

Need help?

Do you have a question about the IT-M3400 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for ITech IT-M3400 Series

Page 1 Bi-directional DC power supply IT-M3400 Programming Guide Model: IT-M3400 Series Version: V1.0 / 07, 2020...
Page 2 Safety Notices Notices Warranty © Itech Electronic, Co., Ltd. 2020 The materials contained in this No part of this manual may be document are provided “as is” , and reproduced in any form or by any means A CAUTION sign denotes a...
Page 3: Warranty
Warranty ITECH warrants that the product will be free from defects in material and workmanship under normal use for a period of one (1) year from the date of delivery (except those described in the Limitation of Warranty below).
Page 4: Safety Precautions
Failure to comply with these precautions or specific warnings elsewhere in this manual will constitute a default under safety standards of design, manufacture and intended use of the instrument. ITECH assumes no liability for the customer’s failure to comply with these precautions.
Page 5: Environmental Conditions
The instrument complies with the WEEE Directive (2002/96/EC) marking requirement. This affixed product label indicates that you must not discard the electrical/electronic product in domestic household waste. Copyright © Itech Electronic Co., Ltd.
Page 6: Waste Electrical And Electronic Equipment (Weee) Directive
With reference to the equipment classifications described in the Annex I of the WEEE Directive, this instrument is classified as a “Monitoring and Control Instrument”. To return this unwanted instrument, contact your nearest ITECH office. Copyright © Itech Electronic Co., Ltd.
Page 7: Compliance Information
Connection of the instrument to a test object may produce radiations beyond the specified limit. Use high-performance shielded interface cable to ensure conformity with the EMC standards listed above. Safety Standard IEC 61010-1:2010/ EN 61010-1:2010 Copyright © Itech Electronic Co., Ltd.
Page 8: Table Of Contents
INSTrument[:SELect] <NR1> ............................8 Chapter5 System Commands ........................10 SYSTem:BEEPer:IMMediate ............................10 SYSTem:BEEPer[:STATe] <bool> ..........................10 SYSTem:ERRor? ................................. 11 SYSTem:CLEar ................................11 SYSTem:REMote ............................... 11 SYSTem:LOCal ................................12 SYSTem:RWLock ............................... 12 SYSTem:KEY <n> ............................... 13 Copyright © Itech Electronic Co., Ltd.
Page 9 MEASure[:SCALar]:CAPacity? ........................... 26 FETCh[:SCALar]:CAPacity? ............................26 MEASure[:SCALar]:UUT:TEMPerature? ........................27 FETCh[:SCALar]:UUT:TEMPerature? ......................... 27 MEASure[:SCALar]:RECover:ENERgy? ........................27 FETCh[:SCALar]:RECover:ENERgy? ........................... 27 MEASure[:SCALar]:LOCal:VOLTage? ......................... 28 FETCh[:SCALar]:LOCal:VOLTage? ..........................28 MEASure[:SCALar]:REMote:VOLTage? ........................28 FETCh[:SCALar]:REMote:VOLTage? .......................... 28 MEASure[:SCALar]:AHOur? ............................29 FETCh:AHOur? ................................29 Copyright © Itech Electronic Co., Ltd.
Page 10 [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] <NRf+> ................... 44 [SOURce:]CURRent[:OVER]:PROTection[:LEVel] <NRf+> ..................45 [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> ................... 45 [SOURce:]CURRent[:OVER]:PROTection:STATe <bool> ..................... 46 [SOURce:]CURRent:UNDer:PROTection[:LEVel] <NRf+> ................... 46 [SOURce:]CURRent:UNDer:PROTection:DELay <NRf+> .................... 47 [SOURce:]CURRent:UNDer:PROTection:STATe <bool> ..................... 47 [SOURce:]CURRent:UNDer:PROTection:WARM <NRf+> ..................48 [SOURce:]CURRent:SLEW[:BOTH] <NRf+>,<NRf+> ....................48 viii Copyright © Itech Electronic Co., Ltd.
Page 11 List Commands ......................... 67 LIST:STEP:COUNt <NR1> ............................67 LIST[:STEP]:VOLTage <NR1>,<NRf+> ........................67 LIST[:STEP]:CURRent <NR1>,<NRf+> ........................68 LIST[:STEP]:SLEW <NR1>,<NRf+> ..........................68 LIST[:STEP]:WIDTh <NR1>,<NRf+> ........................... 68 LIST:REPeat <NRf+> ..............................69 LIST:FUNCtion <VOLTage|CURRent> ........................69 LIST:VOLTage:LIMit[:HIGH] <NRf+>.......................... 70 Copyright © Itech Electronic Co., Ltd.
Page 12 Common Commands ........................ 85 *CLS ..................................85 *ESE ..................................85 *ESR? ..................................86 *IDN?..................................86 *OPC ..................................87 *PSC ..................................88 *RCL ..................................88 *RST..................................89 *SAV ..................................89 *SRE ..................................90 *STB? ..................................90 Copyright © Itech Electronic Co., Ltd.
Page 13 IT-M3400 Programming Guide *TRG ..................................91 *TST? ..................................91 *WAI ..................................92 *PSC <Bool> ................................92 Chapter16 Error Messages ......................... 93 Error List ................................... 93 Copyright © Itech Electronic Co., Ltd.
Page 14: Chapter1 Scpi Introduction
Multiple Commands in a Message Multiple SCPI commands can be combined and sent as a single message with one message terminator. There are two important considerations when sending several commands within a single message: Copyright © Itech Electronic Co., Ltd.
Page 15 VOLTage:TRIGgered 17.5;:INITialize;*TRG OUTPut OFF;*RCL 2;OUTPut ON Case Sensitivity Common commands and SCPI commands are not case sensitive. You can use upper or lower for example: Copyright © Itech Electronic Co., Ltd.
Page 16: 1.3 Message Type Of Scpi
Response message: A response message consists of data in a specific SCPI format sent from the instrument to the controller. The instrument sends the message only when commanded by a program message called a "query." The next figure illustrates SCPI message structure: Copyright © Itech Electronic Co., Ltd.
Page 17 An invalid command generates an error and, of course, is not executed. ⚫ Valid commands that precede an invalid command in a multiple command program message are executed. ⚫ Valid commands that follow an invalid command in a multiple command program message are ignored. Copyright © Itech Electronic Co., Ltd.
Page 18: 1.4 Response Data Type
Rule 2: The complete response message must be received by the computer before another program message can be sent to the instrument. 1.5 Command Format Formats for command display are as follows: [SOURce[1|2]:]VOLTage:UNIT {VPP|VRMS|DBM} Copyright © Itech Electronic Co., Ltd.
Page 19 It is used to separate several commands in the same subsystem and can also minimize typing. For example, to send the following command string: TRIG:SOUR EXT; COUNT 10 has the same effect as sending the following two commands: TRIG:SOUR EXT TRIG:COUNT 10 Copyright © Itech Electronic Co., Ltd.
Page 20: 1.6 Data Type
In all cases, the program must read <NL> in response before another command is sent to the instrument, otherwise errors will be caused. 1.6 Data Type SCPI language defines several data types used for program message and response messages. Copyright © Itech Electronic Co., Ltd.
Page 21: 1.7 Remote Interface Connections
– <SPD>: string program data. String parameters enclosed in single or double quotes. – <CPD>: character program data. 1.7 Remote Interface Connections Please refer to user manual for detailed introductions of the remote interface. Copyright © Itech Electronic Co., Ltd.
Page 22 If the user want to change the settings of the instrument, for instance, the output setting value, the command SYST:REM must be sent to the instrument after finishing the connection between the instrument and PC. Copyright © Itech Electronic Co., Ltd.
Page 23: Chapter2 Scpi Status Register
Output is in constant voltage. Output is in constant current. Output is in constant current. The power supply is in the On_Delay output-on delay. The power supply is in the Off_Delay output-off delay. 1024 Output is programmed on. Copyright © Itech Electronic Co., Ltd.
Page 24 Output buffer available. Bit ESB is set to 1 when the status of an enabled standard event status. RQS/MSS Register changes. If the status of enabled operation OPER register changes, then this bit is set to1. Copyright © Itech Electronic Co., Ltd.
Page 25: Chapter3 Status Commands
This command can set the parameter of operation event enable register. Setting parameter can determine which bit value of operation event register is 1 and the bit will cause OPER of status byte register to be 1. Copyright © Itech Electronic Co., Ltd.
Page 26: Status:operation:ntransition
This command is used to edit the negative transition trigger register of operation event. Syntax STATus:OPERation:NTRansition <n> Arguments <0-65535> Example STAT:OPER:NTR 16 Query syntax STATus:OPERation:NTRansition? Returns STATus:OPERation:PTRansition <n> This command is used to edit the positive transition trigger register of operation event. Syntax STATus:OPERation:PTRansition <n> Copyright © Itech Electronic Co., Ltd.

Page 27: Status:questionable[:Event]
Syntax STATus:QUEStionable[:EVENt]? Arguments None Example STAT:QUES? Returns STATus:QUEStionable:CONDition? This command is used to read the value of query condition register and gets the status of power supply. Syntax STATus:QUEStionable:CONDition? Arguments None Example STAT:QUES:COND? Copyright © Itech Electronic Co., Ltd.
Page 28: Status:questionable:enable
STAT:QUES:ENAB 24 Query syntax STATus:QUEStionable:ENABle? Returns STATus:QUEStionable:NTRansition <n> This command is used to edit the negative transition trigger register of query event. Syntax STATus:QUEStionable:NTRansition <n> Arguments <0-65535> Example STAT:QUES:NTR 64 Query syntax STATus:QUEStionable:NTRansition? Returns Copyright © Itech Electronic Co., Ltd.

Page 29: Status:questionable:ptransition
This command is used to clear the register status as follows: ⚫ Enable the Questionable status, PTR register and NTR register ⚫ Enable the operation status, PTR register and NTR register Syntax STATus:PRESet Example STAT:PRES Copyright © Itech Electronic Co., Ltd.

Page 30: Chapter4 Channel Selection Commands
Query syntax CHANnel? Returns INSTrument[:SELect] <NR1> This command selects the channel. The function is the same as the command CHANnel <NR1>. Syntax INSTrument[:SELect] <NR1> Arguments 0-16 Default value Example INST[:SEL] 2 Query syntax INSTrument[:SELect]? Copyright © Itech Electronic Co., Ltd.
Page 31 Channel Selection Commands Returns Copyright © Itech Electronic Co., Ltd.
Page 32: Chapter5 System Commands
SYST:BEEP:IMM Query syntax None Returns None SYSTem:BEEPer[:STATe] <bool> This command enables or disables the beeper function of the power supply. Syntax SYSTem:BEEPer[:STATe] <bool> Arguments 0|OFF|1|ON Default value Example SYST:BEEP 1 Query syntax SYSTem:BEEPer[:STATe]? Returns Copyright © Itech Electronic Co., Ltd.
Page 33: System:error
This command clears the system status register. Syntax SYSTem:CLEar Arguments None Example SYST:CLE Query syntax None Returns None SYSTem:REMote This command takes the instrument out of front-panel control mode and switches it to remote control mode. Copyright © Itech Electronic Co., Ltd.
Page 34: System:local
None SYSTem:RWLock This command locks the power supply in remote control mode. When this command is executed, pressing the LOCAL button does not switch the instrument to local control mode. Syntax SYSTem:RWLock Arguments None Copyright © Itech Electronic Co., Ltd.
Page 35: System:key
Shift R-set Source Enter Load Left Right V-set Decrease Save Increase On/Off Example SYST:KEY 5 Query syntax SYSTem:KEY? Returns SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <addr> This command sets the GPIB address of the power supply. Syntax SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <addr> Copyright © Itech Electronic Co., Ltd.

Page 36: System:communicate:lan:current:address <"Addr
This command sets the IP address of the power supply. Syntax SYSTem:COMMunicate:LAN:CURRent:ADDRess <"addr"> Arguments Str "<0-255>,<0-255>,<0-255>,<0-255>" Example SYST:COMM:LAN:CURR:ADDR "192.168.0.211" Query syntax SYSTem:COMMunicate:LAN:CURRent:ADDRess? Returns SYSTem:COMMunicate:LAN:CURRent:DGATeway <"addr"> This command sets the gateway of the power supply. Syntax SYSTem:COMMunicate:LAN:CURRent:DGATeway <"addr"> Copyright © Itech Electronic Co., Ltd.
Page 37: System:communicate:lan:current:smask <"Addr
This command sets the subnet mask of the power supply. Syntax SYSTem:COMMunicate:LAN:CURRent:SMASk <"addr"> Arguments Str "<0-255>,<0-255>,<0-255>,<0-255>" Example SYST:COMM:LAN:CURR:SMAS “255.255.255.0” Query syntax SYSTem:COMMunicate:LAN:CURRent:SMASk? Returns SYSTem:COMMunicate:LAN:DHCP <Bool> This command enables or disables the dynamic IP address function. Syntax SYSTem:COMMunicate:LAN:DHCP <Bool> Arguments <0|1|OFF|ON> Example SYST:COMM:LAN:DHCP 1 Copyright © Itech Electronic Co., Ltd.
Page 38: System:communicate:lan:rawsocket:port
None Example SYST:COMM:LAN:MAC? - > "12:34:56:79:99:AA" < - Note ⚫ “ - >” indicates the commands that you send to the power supply. ⚫ “< -” indicates the response from the power supply. Returns Copyright © Itech Electronic Co., Ltd.
Page 39: System:communicate:serial:baudrate
This command queries the SCPI version of the instrument. Syntax SYSTem:VERSion? Arguments None Example SYST:VERS? - > "1993.1" < - Returns AARD SYSTem:COMMunicate:LAN:DNS1 <dns> This command sets DNS primary address for LAN. Syntax SYSTem:COMMunicate:LAN:DNS1 <dns> Arguments Copyright © Itech Electronic Co., Ltd.
Page 40: System:communicate:lan:dns2
Syntax SYSTem:COMMunicate:LAN:DNS2 <dns> Arguments Example SYST:COMM:LAN:DNS1 "192.168.0.2" Query syntax SYSTem:COMMunicate:LAN:DNS2? Returns SYSTem:COMMunicate:LAN:RAWSocketport <port> This command sets the socket port for the LAN communication. Syntax SYSTem:COMMunicate:LAN:RAWSocketport <port> Arguments 2000-65535 Example SYST:COMM:LAN:RAWS 30000 Query syntax SYSTem:COMMunicate:LAN:RAWSocketport? Copyright © Itech Electronic Co., Ltd.

Page 41: System:communicate:lan:mdns
This command is used to set the status of MDNS function. Syntax SYSTem:COMMunicate:LAN:PING <onoff> Arguments 0|OFF|1|ON Example SYST:COMM:LAN:PING 1 Query syntax SYSTem:COMMunicate:LAN:PING? Returns SYSTem:COMMunicate:LAN:TELNet <onoff> This command is used to set the status of telnet function. Copyright © Itech Electronic Co., Ltd.

Page 42: System:communicate:lan:web
This command is used to set the status of WEB function. Syntax SYSTem:COMMunicate:LAN:WEB <onoff> Arguments 0|OFF|1|ON Example SYST:COMM:LAN:WEB 1 Query syntax SYSTem:COMMunicate:LAN:WEB? Returns SYSTem:COMMunicate:LAN:VXI11 <onoff> This command is used to set the status of VXI-11 function. Syntax SYSTem:COMMunicate:LAN:VXI11 <onoff> Arguments 0|OFF|1|ON Copyright © Itech Electronic Co., Ltd.

Page 43: System:communicate:lan:restore
This command resets the LAN settings to default settings. Syntax SYSTem:COMMunicate:LAN:RESTore Arguments None Example SYST:COMM:LAN:REST Query syntax None Returns None SYSTem:COMMunicate:LAN:SAVE This command makes the LAN settings valid. Syntax SYSTem:COMMunicate:LAN:SAVE Arguments None Example SYST:COMM:LAN:RES Query syntax None Copyright © Itech Electronic Co., Ltd.
Page 44: System:communicate:lan:state
Returns DOWN|UP SYSTem:COMMunicate:LAN:HOSTname? This command queries the host name in the LAN communication. Syntax SYSTem:COMMunicate:LAN:HOSTname? Arguments None Example SYST:COMM:LAN:HOST? Returns SYSTem:COMMunicate:LAN:DESCription? This command queries the host name description in the LAN communication. Syntax SYSTem:COMMunicate:LAN:DESCription? Copyright © Itech Electronic Co., Ltd.
Page 45: System:communicate:lan:domain
Arguments None Example SYST:COMM:LAN:DOM? Returns [SOURce:]EXTernal[:STATe] <bool> This command enables or disables the external analog quantity function of the power supply. Syntax [SOURce:]EXTernal[:STATe] <bool> Arguments <0|1|OFF|ON> Default value Example EXT 1 Query syntax [SOURce:]EXTernal[:STATe]? Copyright © Itech Electronic Co., Ltd.
Page 46: Address
ADDRess <NR1> Arguments 0-127 Default value None Example ADDR 1 SYSTem:BOOT:VERSion? This command is used to query the boot version of optional accessories. Syntax SYSTem:BOOT:VERSion? Arguments None Default value None Example SYST:BOOT:VERS? Returns AARD Copyright © Itech Electronic Co., Ltd.

Page 47: Chapter6 Measure & Fetch Commands
This command queries the present current measurement. Syntax MEASure[:SCALar]:CURRent[:DC]? FETCh[:SCALar]:CURRent[:DC]? Arguments None Example MEAS:CURR? FETC:CURR? Returns MEASure[:SCALar]:POWer[:DC]? FETCh[:SCALar]:POWer[:DC]? This command queries the present power measurement. Syntax MEASure[:SCALar]:POWer[:DC]? FETCh[:SCALar]:POWer[:DC]? Arguments None Example MEAS:POW? FETC:POW? Returns Copyright © Itech Electronic Co., Ltd.
Page 48: Measure[:Scalar]:Voltage[:Dc]
This command queries the present measured voltage. Syntax MEASure[:SCALar]:VOLTage[:DC]? FETCh[:SCALar]:VOLTage[:DC]? Arguments None Example MEAS:VOLT? FETC:VOLT? Returns MEASure[:SCALar]:CAPacity? FETCh[:SCALar]:CAPacity? This command queries the charging capacity of the battery. Syntax MEASure[:SCALar]:CAPacity? FETCh[:SCALar]:CAPacity? Arguments None Example MEAS:CAP? FETC:CAP? Returns Copyright © Itech Electronic Co., Ltd.
Page 49: Measure[:Scalar]:Uut:temperature
This command queries the measured UUT temperature. Syntax MEASure[:SCALar]:UUT:TEMPerature? FETCh[:SCALar]:UUT:TEMPerature? Arguments None Example MEAS:UUT:TEMP? FETC:UUT:TEMP? Returns MEASure[:SCALar]:RECover:ENERgy? FETCh[:SCALar]:RECover:ENERgy? This command queries the total energy which return to grid. Syntax MEASure[:SCALar]:RECover:ENERgy? FETCh[:SCALar]:RECover:ENERgy? Arguments None Example MEAS:REC:ENERgy? FETCh:REC:ENERgy? Returns Copyright © Itech Electronic Co., Ltd.
Page 50: Measure[:Scalar]:Local:voltage
This command queries the local voltage. Syntax MEASure[:SCALar]:LOCal:VOLTage? FETCh[:SCALar]:LOCal:VOLTage? Arguments None Example MEAS:LOC:VOLT? FETC:LOC:VOLT? Returns MEASure[:SCALar]:REMote:VOLTage? FETCh[:SCALar]:REMote:VOLTage? This command queries the remote sense voltage. Syntax MEASure[:SCALar]:REMote:VOLTage? FETCh[:SCALar]:REMote:VOLTage? Arguments None Example MEAS: REM:VOLT? FETC: REM:VOLT? Returns Copyright © Itech Electronic Co., Ltd.
Page 51: Measure[:Scalar]:Ahour
None Example FETC:WHO? Returns MEASure? This command queries present voltage measurement, current measurement and power measurement FETCh? This command reads the latest preprocessed capacity voltage value, current value and power value from sampling buffer. Copyright © Itech Electronic Co., Ltd.
Page 52 Measure & Fetch Commands Syntax FETCh? MEASure? Arguments None Example FETC? MEAS? Returns Copyright © Itech Electronic Co., Ltd.
Page 53: Chapter7 Output Commands
This command sets the output state of the power supply. Syntax OUTPut[:STATe] <bool> Arguments 0|OFF|1|ON Default value Example OUTP ON Query syntax OUTPut[:STATe]? Returns [OUTPut:]PROTection:CLEar This command clears the protection status. Syntax [OUTPut:]PROTection:CLEar Arguments None Example PROT:CLE Query syntax None Returns None Copyright © Itech Electronic Co., Ltd.
Page 54: Output:delay[:Rise]
Query syntax OUTPut:DELay[:RISE]? [MINimum|MAXimum] Returns OUTPut:DELay:FALL <NRf+> This command sets the delay time after turning the output off. Syntax OUTPut:DELay:FALL <NRf+> Arguments <0.000-10.000> Default value 0.000S Example OUTP:DEL:FALL 1.0 Query syntax OUTPut:DELay:FALL? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd.

Page 55: Ouput:ponsetup
Query syntax OUTPut:PONS? Returns RST|LAST|LOFF OUTPut:REVerse[:STATe]? This command is used to query the connection of output terminals. Syntax OUTPut:REVerse[:STATe]? Arguments None Default value None Example OUTP:REV? Returns 0: indicates NOT reversed, 1: indicates reversed. Copyright © Itech Electronic Co., Ltd.

Page 56: Output:sds[:State]
0: indicates disable. Syntax OUTPut:SDS:ENABle <0|OFF|1|ON> Arguments <0|OFF|1|ON> Default value Example OUTP:SDS:ENAB 1 Returns OUTPut:SDS:DC:RELay <0|OFF|1|ON> This command is used to open or close the main circuit DC relay, 0 indicates open, 1 indicates close. Copyright © Itech Electronic Co., Ltd.
Page 57: Output:sds:sense:relay <0|Off|1|On
0 indicates local measurement. 1 indicates remote sensing. Syntax OUTPut:SDS:DC:RELay <0|OFF|1|ON> Arguments <0|1|OFF|ON> Default value Example OUTP:SDS:DC:REL 1 Returns Query syntax OUTPut:SDS:SENSe:RELay? OUTPut:SDS:SURGe:SUPPress This command is used to execute the prevent the surge function of SDS. Copyright © Itech Electronic Co., Ltd.
Page 58: Output:protection:wdog[:State] <0|Off|1|On
This command enables or disables the state of the communication watchdog. Syntax OUTPut:PROTection:WDOG[:STATe] <0|OFF|1|ON> Arguments <0|1|OFF|ON> Default value Example OUTP:PROT:WDOG 0 Returns Query syntax OUTPut:PROTection:WDOG[:STATe]? OUTPut:PROTection:WDOG:DELay <NRf+> This command sets the time of the communication watchdog. Copyright © Itech Electronic Co., Ltd.
Page 59: Output:protection:foldback[:Mode]
This command is used to set foldback function mode. Syntax OUTPut:PROTection:FOLDback[:MODE] <OFF|CC|CV> Arguments <OFF|CC|CV> Default value Example OUTP:PROT:FOLD CC Returns OFF|CC|CV Query syntax OUTPut:PROTection:FOLDback[:MODE]? OUTPut:PROTection:FOLDback:DELay <NRf+> This command is used to set the delay time of FOLDBACK protection. Copyright © Itech Electronic Co., Ltd.

Page 60 Output Commands Syntax OUTPut:PROTection:FOLDback:DELay <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Example OUTP:PROT:FOLD:DEL 0.2 Returns Query syntax OUTPut:PROTection:FOLDback:DELay? [MINimum|MAXimum] Copyright © Itech Electronic Co., Ltd.
Page 61: Chapter8 Trigger Commands
This command generates a trigger signal when the trigger source is BUS. Syntax TRIGger[:IMMediate] Arguments None Example TRIG Query syntax None Returns None TRIGger:LIST:SOURce <KEYPad|BUS> This command sets the trigger source. Syntax TRIGger:LIST:SOURce <KEYPad|BUS> Arguments <KEYPad|BUS> Default value KEYPad Example TRIG:LIST:SOUR KEYPad Returns KEYPad |BUS Copyright © Itech Electronic Co., Ltd.
Page 62: Initiate[:Immediate]:List
Syntax INITiate[:IMMediate]:LIST Arguments None Example INIT:LIST Returns None ABORt:LIST This command is used to reset the list program to idle state. Syntax ABORt:LIST Arguments None Example ABOR:LIST Returns None Copyright © Itech Electronic Co., Ltd.
Page 63: Chapter9 Sense Commands
0|OFF|1|ON Default value Example SENS ON Query syntax SENSe[:REMote][:STATe]? Returns 0|OFF|1|ON SENSe:FILTer:LEVel <SLOW|MEDium|FAST> This command sets the sense filter level. Syntax SENSe:FILTer:LEVel <SLOW|MEDium|FAST> Arguments <FAST|MEDium|SLOW> Default value SLOW Example SENS:FILT:LEV MED Query syntax SENSe:FILTer:LEVel? Copyright © Itech Electronic Co., Ltd.
Page 64: Sense:ahour:reset
This command clears the Ah information. Syntax SENSe:AHOur:RESet Arguments None Default value None Example SENS:AHO:RES Returns None SENSe:WHOur:RESet This command clears the Wh information. Syntax SENSe:WHOur:RESet Arguments None Default value None Example SENS:WHO:RES Returns None Copyright © Itech Electronic Co., Ltd.
Page 65: Chapter10 Source Commands
Example CURR 3.500 Query syntax [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns NRf+ [SOURce:]CURRent[:LEVel]:LIMit:POSitive <NRf+> This command sets the positive current limit value of the power supply. Syntax [SOURce:]CURRent [:LEVel]:LIMit:POSitive <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value Example CURR:LIM:POS MAX Copyright © Itech Electronic Co., Ltd.
Page 66: [Source:]Current[:Level]:Limit:negative
Query syntax [SOURce:]CURRent [:LEVel]:LIMit:NEGative? Returns [SOURce:]CURRent[:LEVel]:TRIGgered[:AMPLitude] <NRf+> This command sets the output current value when the power supply receives a trigger. Syntax [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude] <NRf+> Arguments <NRf+> MIN TO MAX Default value Example CURR:TRIG 3.500 Copyright © Itech Electronic Co., Ltd.

Page 67: [Source:]Current[:Over]:Protection[:Level]
<NRf+> MIN TO MAX Default value Example CURR:PROT 10.000 Query syntax [SOURce:]CURRent[:OVER]:PROTection[:LEVel]? [MINimum|MAXimum] Returns NRf+ [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> This command sets the over-current delay time of the power supply. Syntax [SOURce:]CURRent[:OVER]:PROTection:DELay <NRf+> Arguments <0-10> Default value 10.00S Copyright © Itech Electronic Co., Ltd.

Page 68: [Source:]Current[:Over]:Protection:state
Syntax [SOURce:]CURRent[:OVER]:PROTection:STATe <bool> Arguments 0|OFF|1|ON Default value Example CURR:PROT:STAT ON Query syntax [SOURce:]CURRent[:OVER]:PROTection:STATe? Returns [SOURce:]CURRent:UNDer:PROTection[:LEVel] <NRf+> This command sets the under-current limit of the power supply. Syntax [SOURce:]CURRent:UNDer:PROTection[:LEVel] <NRf+> Arguments <NRf+> MIN TO MAX Copyright © Itech Electronic Co., Ltd.

Page 69: [Source:]Current:under:protection:delay
This command sets the under-current delay time of the power supply. Syntax [SOURce:]CURRent:UNDer:PROTection:DELay <NRf+> Arguments <0-10> Default value 10.00S Example CURR:UND:PROT:DEL 10.000 Query syntax [SOURce:]CURRent:UNDer:PROTection:DELay? [MINimum|MAXimum] Returns <NRf+> [SOURce:]CURRent:UNDer:PROTection:STATe <bool> This command enables or disables the under-current function. Syntax [SOURce:]CURRent:UNDer:PROTection:STATe <bool> Arguments <0|OFF|1|ON> Copyright © Itech Electronic Co., Ltd.

Page 70: [Source:]Current:under:protection:warm
0-30 Default value 30.00S Example CURR:UND:PROT:WARM 10.000 Query syntax [SOURce:]CURRent:UNDer:PROTection:WARM? [MINimum|MAXimum] Returns NRf+ [SOURce:]CURRent:SLEW[:BOTH] <NRf+>,<NRf+> This command sets the current rising and falling slew rate of the power supply. Syntax [SOURce:]CURRent:SLEW[:BOTH] <NRf+>,<NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Copyright © Itech Electronic Co., Ltd.

Page 71: [Source:]Current:slew:negative
[SOURce:]CURRent:SLEW:NEGative <NRf+> Arguments NRf+ Default value 0.01S Example CURR:SLEW:NEG 1.000 Query syntax [SOURce:]CURRent:SLEW:NEGative? [MINimum|MAXimum] Returns NRf+ [SOURce:]CURRent:SLEW:POSitive <NRf+> This command sets the current rising slew rate of the power supply. Syntax [SOURce:]CURRent:SLEW:POSitive <NRf+> Arguments NRf+ Copyright © Itech Electronic Co., Ltd.

Page 72: [Source:]Voltage[:Level][:Immediate][:Amplitude]
Arguments <NRf+> MIN TO MAX Default value MINimum Example VOLT 60.00 Query syntax [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns NRf+ [SOURce:]VOLTage[:LEVel]:LIMit[:HIGH] <NRf+> This command sets voltage upper limit under CC priority mode. Syntax [SOURce:]VOLTage[:LEVel]:LIMit[:HIGH] <NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Copyright © Itech Electronic Co., Ltd.

Page 73: [Source:]Voltage[:Level]:Limit:low
Default value Example VOLT:LIM:LOW 60.0 Query syntax [SOURce:]VOLTage[:LEVel]:LIMit[:HIGH]? [MINimum|MAXimum] Returns [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] <NRf+> This command sets the output voltage value when the power supply receives a trigger. Syntax [SOURce:]VOLTage[:LEVel]:TRIGgered[:AMPLitude] <NRf+> Arguments <NRf+> MIN TO MAX Copyright © Itech Electronic Co., Ltd.

Page 74: [Source:]Voltage:slew[:Both] ,
[SOURce:]VOLTage:SLEW[:BOTH] <NRf+>,<NRf+> Arguments <MINimum-MAXimum>|MINimum|MAXimum Default value MAXimum Example VOLT:SLEW MAX,MAX Query syntax [SOURce:]VOLTage:SLEW[:BOTH]? [MINimum|MAXimum] Returns [SOURce:]VOLTage:SLEW:NEGative <NRf+> This command sets the voltage falling slew rate of the power supply. Syntax [SOURce:]VOLTage:SLEW:NEGative <NRf+> Arguments <NRf+> Copyright © Itech Electronic Co., Ltd.

Page 75: [Source:]Voltage:slew:positive
Arguments <NRf+> Default value 0.01S Example VOLT:SLEW:POS 0.03 Query syntax [SOURce:]VOLTage:SLEW:POSitive? [MINimum|MAXimum] Returns NRf+ [SOURce:]VOLTage[:OVER]:PROTection[:LEVel] <NRf+> This command sets the over-voltage limit of the power supply. Syntax [SOURce:]VOLTage[:OVER]:PROTection[:LEVel] <NRf+> Arguments <NRf+> MIN TO MAX Copyright © Itech Electronic Co., Ltd.

Page 76: [Source:]Voltage[:Over]:Protection:delay
This command sets the over-voltage delay time of the power supply. Syntax [SOURce:]VOLTage[:OVER]:PROTection:DELay <NRf+> Arguments <NRf+> Default value 10.00S Example VOLT:PROT:DEL 10.00 Query syntax [SOURce:]VOLTage[:OVER]:PROTection:DELay? [MINimum|MAXimum] Returns NRf+ [SOURce:]VOLTage[:OVER]:PROTection:STATe <bool> This command enables or disables the over-voltage function. Syntax [SOURce:]VOLTage[:OVER]:PROTection:STATe <bool> Copyright © Itech Electronic Co., Ltd.

Page 77: [Source:]Voltage:under:protection[:Level]
This command sets the under-voltage limit of the power supply. Syntax [SOURce:]VOLTage:UNDer:PROTection[:LEVel] <NRf+> Arguments <NRf+> MIN TO MAX Default value Example VOLT:UND:PROT 10.00 Query syntax [SOURce:]VOLTage:UNDer:PROTection[:LEVel]? [MINimum|MAXimum] Returns NRf+ [SOURce:]VOLTage:UNDer:PROTection:DELay <NRf+> This command sets the under-voltage delay time of the power supply. Copyright © Itech Electronic Co., Ltd.

Page 78: [Source:]Voltage:under:protection:state
This command enables or disables the under-voltage function. Syntax [SOURce:]VOLTage:UNDer:PROTection:STATe <bool> Arguments 0|OFF|1|ON Default value Example VOLT:UND:PROT:STAT ON Query syntax [SOURce:]VOLTage:UNDer:PROTection:STATe? Returns [SOURce:]VOLTage:UNDer:PROTection:WARM <NRf+> This command sets the under-voltage warm-up time of the power supply. Copyright © Itech Electronic Co., Ltd.

Page 79: [Source:]Power:limit[:Immediate][:Amplitude]
This command sets the maximum setting voltage limit of the power supply. Syntax [SOURce:]POWer:LIMit[:IMMediate][:AMPLitude] <NRf+> Arguments <NRf+> MIN TO MAX Default value Example POW:LIM 900.0 Query syntax [SOURce:]POWer:LIMit[:IMMediate][:AMPLitude]? [MINimum|MAXimum] Returns NRf+ [SOURce:]POWer:PROTection[:LEVel] <NRf+> This command sets the over-power limit of the power supply. Copyright © Itech Electronic Co., Ltd.

Page 80: [Source:]Power:protection:delay
This command sets the over-power delay time of the power supply. Syntax [SOURce:]POWer:PROTection:DELay <NRf+> Arguments <NRf+> Default value 10.00S Example POW:PROT:DEL 10.00 Query syntax [SOURce:]POWer:PROTection:DELay? [MINimum|MAXimum] Returns NRf+ [SOURce:]POWer:PROTection:STATe <Bool> This command enables or disables the over-power function. Copyright © Itech Electronic Co., Ltd.

Page 81: [Source:]Function:mode
This command sets the operating modes of the power supply. Syntax [SOURce:]FUNCtion:MODE <FIXed|LIST|BATTery|BEMulator > Arguments FIXed|LIST|BATTery|BEMulator Default value FIXed Example FUNC:MODE FIX Query syntax [SOURce:]FUNCtion:MODE? Returns FIXed|LIST|BATTery|BEMulator [SOURce:]FUNCtion <CV|CC|VOLTage|CURRent> This command sets the priority mode of the power supply. Copyright © Itech Electronic Co., Ltd.

Page 82: [Source:]Uut:temperature:protection[:State]
This command sets the UUT over temperature protection status of the power supply. Syntax [SOURce:]UUT:TEMPerature:PROTection[:STATe] Arguments <0|1|OFF|ON> Default value Example UUT:TEMP:PROT 1 Query syntax [SOURce:]UUT:TEMPerature:PROTection[:STATe]? Returns [SOURce:]UUT:TEMPerature:PROTection[:LEVel] <NRf+> This command sets the UUT over-temperature limit of the power supply. Copyright © Itech Electronic Co., Ltd.
Page 83: Off:voltage
ZERO means that the instrument voltage rapidly drops to 0V, and when set to CONSt, the voltage drop speed is normal. Syntax OFF:VOLTage <ZERO|CONSt> Arguments ZERO|CONSt Default value ZERO Example OFF:VOLT ZERO Query syntax OFF:VOLTage? Returns ZERO|CONSt Copyright © Itech Electronic Co., Ltd.

Page 84: Chapter11 Trace Commands
TRACe:CLEar Arguments None Example TRAC:CLE Query syntax None Returns None TRACe:POINts <NRf+> This command is used to specify cache size. Syntax TRACe:POINts <NRf+> Arguments <2-2500>|MINimum|MAXimum Default value 1000 Example TRAC:POINt MAX Query syntax TRACe:POINts? Copyright © Itech Electronic Co., Ltd.
Page 85: Trace:feed:control
CURRent is selected, the current reading is saved in cache. If BOTH is selected, both voltage and current are saved in cache when saving is executed. Syntax TRACe:FEED[:SELected]<BOTH|VOLTage|CURRent> Arguments BOTH|VOLTage|CURRent Default value VOLTage Copyright © Itech Electronic Co., Ltd.

Page 86: Trace:delay
Syntax TRACe:DELay <NRf+> Arguments 0 to 3600s|MINimum|MAXimum Default value 0.000S Example TRAC:DEL MINimum Query syntax TRACe:DELay? Returns TRACe:TIMer <NRf+> This command selects cache time interval. Syntax TRACe:TIMer <NRf+> Arguments <0.00005-1000.0> MINimum-MAXimum|MINimum|MAXimum Default value 0.0001S Copyright © Itech Electronic Co., Ltd.

Page 87: Trace:points:actual
This command selects number of actual readings in the cache. Syntax TRACe:POINts:ACTual? Arguments None Example TRAC:POIN:ACT? Returns TRACe:CLEar:AUTO[:STATe] <bool> This command selects whether clear the readings in the cache automatically . Syntax TRACe:CLEar:AUTO[:STATe] <bool> Arguments <0|1|OFF|ON> Example TRAC:CLE:AUTO ON Query syntax TRACe:CLEar:AUTO[:STATe]? Returns Copyright © Itech Electronic Co., Ltd.
Page 88: Trace:data
NEXT or ALWays, otherwise the system will prompt an error. Syntax TRACe:DATA? Arguments None Example TRACe:DATA? Returns <NRf>,<NRf>,<NRf>..TRACe:FILTer[:STATe] This command enables or disables the filter. Syntax TRACe:FILTer[:STATe] Arguments <0|1|OFF|ON> Default value Example TRAC:FILT 0 Returns Copyright © Itech Electronic Co., Ltd.
Page 89: Chapter12 List Commands
LIST:STEP COUN 1 Query syntax LIST:STEP:COUNt? Returns LIST[:STEP]:VOLTage <NR1>,<NRf+> This command sets the voltage value of the nth step in the list program. Syntax LIST[:STEP]:VOLTage <NR1>,<NRf+> Arguments <1-100>,<MINimum-MAXimum|MINimum|MAXimum> Example LIST:VOLT 1,100.00 Query syntax LIST:VOLTage? Returns Copyright © Itech Electronic Co., Ltd.
Page 90: List[:Step]:Current ,
This command sets the slew rate value of the nth step in the list program. Syntax LIST[:STEP]:SLEW <NR1>,<NRf+> Arguments <1-100>,<MINimum-MAXimum|MINimum|MAXimum> Example LIST[:STEP]:SLEW 1,1.000 Query syntax LIST[:STEP]:SLEW? <NR1> Returns LIST[:STEP]:WIDTh <NR1>,<NRf+> This command sets the width value of the nth step in the list program. Syntax LIST[:STEP]:WIDTh <NR1>,<NRf+> Copyright © Itech Electronic Co., Ltd.

Page 91: List:repeat
This command sets the number of list repetitions. Syntax LIST:REPeat <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example LIST:REP 3 Query syntax LIST:REPeat? Returns LIST:FUNCtion <VOLTage|CURRent> This command sets the working mode of list program. Syntax LIST:FUNCtion <VOLTage|CURRent> Arguments <VOLTage|CURRent> Example LIST:FUNC VOLT Copyright © Itech Electronic Co., Ltd.

Page 92: List:voltage:limit[:High]
<MINimum-MAXimum|MINimum|MAXimum> Example LIST:VOLT:LIM 80 Query syntax LIST:VOLTage:LIMit[:HIGH]? [MINimum|MAXimum] Returns LIST:VOLTage:LIMit:LOW <NRf+> This command sets the voltage lower limit of list program. Syntax LIST:VOLTage:LIMit:LOW <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example LIST:VOLT:LIM:LOW 20 Query syntax LIST:VOLTage:LIMit:LOW? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd.

Page 93: List:current:limit[:Positive]
This command sets the current negative limit of list program. Syntax LIST:CURRent:LIMit:NEGative <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example LIST:CURR:LIM:NEG 20 Query syntax LIST:CURRent:LIMit:NEGative? [MINimum|MAXimum] Returns LIST:SAVE <NR1> This command saves the present list program into the specified memory. Syntax LIST:SAVE <NR1> Copyright © Itech Electronic Co., Ltd.

Page 94: List:recall
This command recalls the list program you saved in the specified memory location. Syntax LIST:RECall <NR1> Arguments <1-10> Example LIST:REC 1 Query syntax LIST:RECall? Returns LIST[:STATe] <bool> This command enables or disables the list function. Syntax LIST[:STATe] <bool> Arguments <0|1|OFF|ON> Default value Copyright © Itech Electronic Co., Ltd.

Page 95: [Source:]List:terminate:last
LIST:TERMinate <terminate> Arguments NORMal|LAST Example LIST:TERM NORM Query syntax LIST:TERMinate? Returns NORMal|LAST LIST:PAUSe[:STATe] <BOOLEAN> This command sets the pause state of the list program. Syntax LIST:PAUSe[:STATe] <BOOLEAN> Arguments <0|1|OFF|ON> Example LIST:PAUS 1 Query syntax LIST:PAUSe[:STATe]? Copyright © Itech Electronic Co., Ltd.

Page 96: [Source:]List:reset
[SOURce:]LIST:RUN:STEP? This command queries the present step number of the running list program. Syntax [SOURce:]LIST:RUN:STEP? Arguments None Example LIST:RUN:STEP? Returns [SOURce:]LIST:RUN:REPeat? This command queries the present repetitions of the running list program. Syntax [SOURce:]LIST:RUN:REPeat? Copyright © Itech Electronic Co., Ltd.
Page 98: Chapter13 Battery Commands
Example BATTery:MODE CHAR Query syntax BATTery:MODE? Returns CHARge|DISCharge BATTery:CHARge:VOLTage <NRf+> This command is used to set the battery charging voltage value. Syntax BATTery:CHARge:VOLTage <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example BATT:CHAR:VOLT 5.0 Query syntax BATTery:CHARge:VOLTage? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd.
Page 99: Battery:charge:current
This command is used to set the battery discharge voltage value. Syntax BATTery:DISCharge:VOLTage <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example BATT:DISC:VOLT 3.0 Query syntax BATTery:DISCharge:VOLTage? [MINimum|MAXimum] Returns BATTery:DISCharge:CURRent <NRf+> This command is used to set the battery discharge current value. Syntax BATTery:DISCharge:CURRent <NRf+> Copyright © Itech Electronic Co., Ltd.

Page 100: Battery:stop:voltage
Arguments <MINimum-MAXimum|MINimum|MAXimum> Example BATT:SHUT:VOLT 4.0 Query syntax BATTery:STOP:VOLTage? [MINimum|MAXimum] Returns BATTery:STOP:CURRent <NRf+> This command is used to set the current value of the battery test cutoff. Syntax BATTery:STOP:CURRent <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example BATT:SHUT:CURR 3.0 Copyright © Itech Electronic Co., Ltd.

Page 101: Battery:stop:capacity
Example BATT:SHUT:CAP 3.0 Query syntax BATTery:STOP:CAPacity? [MINimum|MAXimum] Returns BATTery:STOP:TIME <NRf+> This command is used to set the battery test cutoff time. Syntax BATTery:STOP:TIME <NRf+> Arguments <MINimum-MAXimum|MINimum|MAXimum> Example BATT:SHUT:TIME 3.0 Query syntax BATTery:STOP:TIME? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd.

Page 102: Battery[:State]
This command saves the present battery test file into the specified memory. Syntax BATTery:SAVE <BANK> Arguments <1-10> Example BATT:SAV 1 Query syntax None Returns <NR1> BATTery:RECall <BANK> This command recalls the battery test file you saved in the specified memory location. Copyright © Itech Electronic Co., Ltd.
Page 103: [Source:]Battery:reset
<1-10> Example BATT:REC 1 Query syntax None Returns <NR1> [SOURce:]BATTery:RESet This command resets the running state of the list program to initial state. Syntax [SOURce:]BATTery:RESet Arguments None Example BATT:RES Query syntax None Returns None Copyright © Itech Electronic Co., Ltd.
Page 104: Chapter14 Parallel&Link Commands
Syntax PARallel:ROLE <SINGle|SLAVe|MASTer> Arguments SINGle|SLAVe|MASTer Example PAR:ROLE SLAV Query syntax PARallel:ROLE? Returns SINGle|SLAVe|MASTer PARallel:GROup <group> This command specifies the parallel group. Syntax PARallel:GROup <group> Arguments <A-H> Example PAR:GRO 1 Query syntax PARallel:GROup? Returns Copyright © Itech Electronic Co., Ltd.
Page 105: Parallel:number
LINK:MODE <OUTPut|TRACk> This command sets the link mode. Syntax LINK:MODE <OUTPut|TRACk> Arguments OUTPut|TRACk Example LINK:MODE OUTP Query syntax LINK:MODE? Returns OUTPut|TRACk LINK[:STATe] <bool> This command enables or disables the link function. Syntax LINK[:STATe] <bool> Copyright © Itech Electronic Co., Ltd.

Page 106: Link:reference
Parallel&Link Commands Arguments <0|1|OFF|ON> Example LINK ON Query syntax LINK[:STATe]? Returns LINK:REFerence <NRf+> This command sets reference proportion of the link mode. Syntax LINK:REFerence <NRf+> Arguments <0.01-100.00> Example LINK:REF 3 Query syntax LINK:REFerence? [MINimum|MAXimum] Returns Copyright © Itech Electronic Co., Ltd.

Page 107: Chapter15 Common Commands
The ESER is an eight-bit register that determines which bits in the Standard Event Status Register (SESR) will set the Event Summary Bit (ESB) in the Status Byte Register (SBR). Syntax *ESE <NRf> Arguments 0 to 255 Default value Copyright © Itech Electronic Co., Ltd.
Page 108: Esr
See also *CLS *ESE *ESE? *OPC *IDN? This command reads information that identifies the power supply. It returns a parameter that contains four segments divided by a comma. Example: ITECH Ltd., IT3400, 60234567890123456, 1.01-1.02-1.03. Copyright © Itech Electronic Co., Ltd.
Page 109: Opc
This command sets the Operation Complete (OPC) bit in the Standard Event Status Register to 1 when all other commands are complete. Syntax *OPC Arguments None Default value Not applicable Example *OPC Query command *OPC? Returns Copyright © Itech Electronic Co., Ltd.
Page 110: Psc
*PSC 0 Query command *PSC? Returns *RCL This command recalls the setups you saved in the specified memory location. Syntax *RCL <NRf> Arguments <1-10> Default value Not applicable Example *RCL 1 Query command None Copyright © Itech Electronic Co., Ltd.
Page 111: Rst
None Returns Not applicable *SAV This command saves the present setting values of the power supply into specified memory Syntax *SAV <NRf> Arguments <1-10> Default value Not applicable Example *SAV 1 Query command None Copyright © Itech Electronic Co., Ltd.
Page 112: Sre
0 to 255 Default value Not applicable Example *SRE 255 Query command *SRE? Returns *STB? This command reads the data in the Status Byte Register (SBR). Syntax *STB? Arguments None Default value Not applicable Example *STB? Copyright © Itech Electronic Co., Ltd.
Page 113: Trg
Default value Not applicable Example *TRG Query command None Returns None *TST? This command initiates a self-test and reports any errors. Query command *TST? Arguments None Default value Not applicable Example *TST? Returns NR1,<str> Copyright © Itech Electronic Co., Ltd.
Page 114: Wai
This instruction is used to control whether the status register is cleared when the instrument is powered-on. This instruction affects the value of the status register at the next powered-on. Syntax *PSC <Bool> Arguments 0|OFF|1|ON Default value Example *PSC 0 Query syntax *PSC? Returns Copyright © Itech Electronic Co., Ltd.
Page 115: Chapter16 Error Messages
"Mainframe Initialization Lost" "Module Calibration Lost" "Eeprom failure" "RST checksum failed" "BACKUP RAM failed" "RAM selftest failed" "Front panel uart parity" "Front panel buffer overrun" "Front panel timeout" "Front Crc Check error" "Front Cmd Error" Copyright © Itech Electronic Co., Ltd.
Page 116 "CAL password is incorrect" "CAL not enabled" "readback cal are incorrect" "programming cal are incorrect" "Incorrect sequence of cal" "Commond only for rs232" "FETCH of data was not acquired" "Measurement overrange" "Sn Same Conflict" Copyright © Itech Electronic Co., Ltd.
