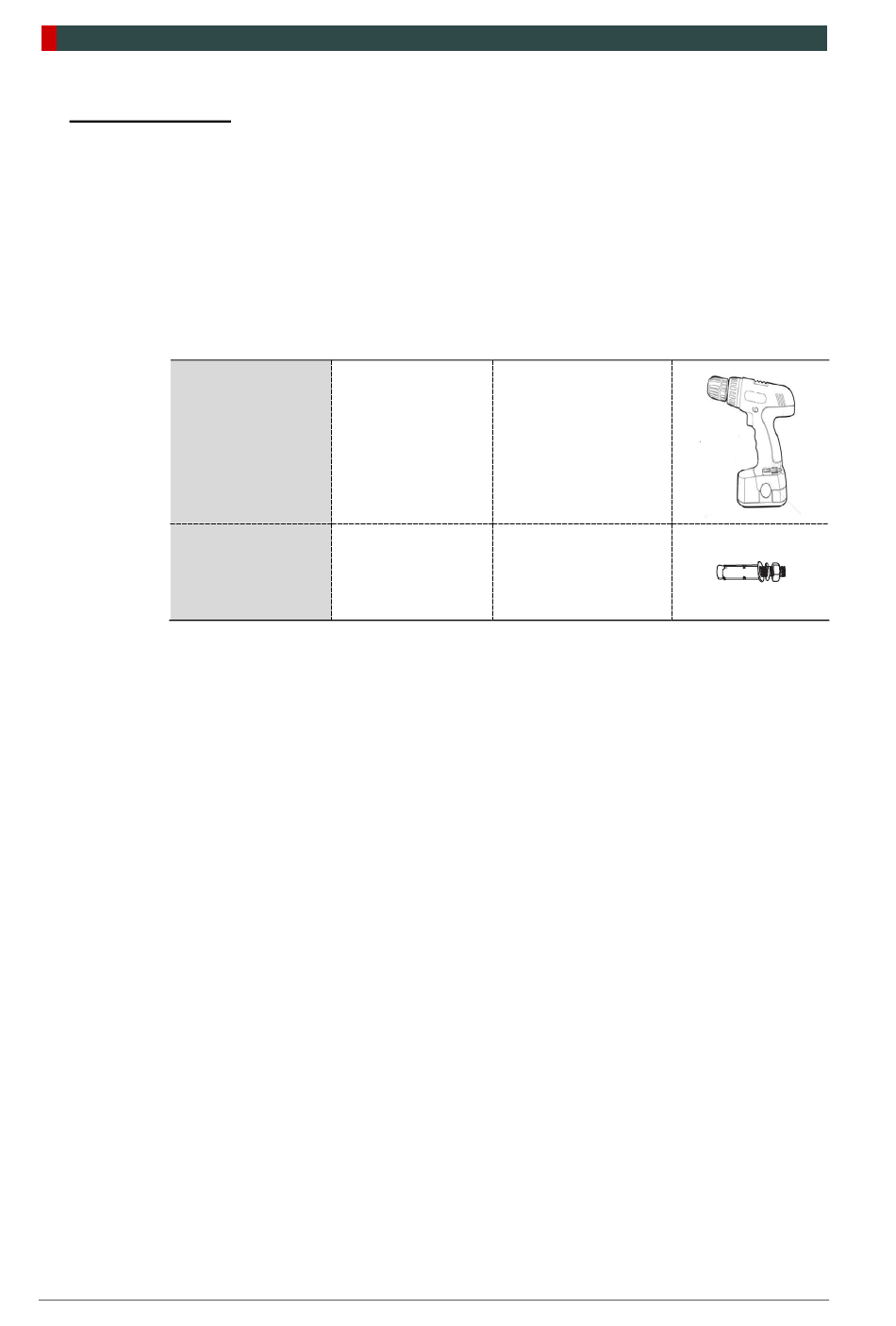

5. Installing the Equipment: Wall Mount
Drilling the Floor
1.
Remove the aligning plate.
2.
Drill the floor holes (size: 10.5 x 30 mm) by using the concrete hammer drill.
3.
Remove the debris and clean the holes with the dust pump.
4.
Put the anchor bolts into the holes and attach them with the hammer. Verify that
the anchors are secured.
Required Tool
Parts and
Accessory
70
Hammer Drill
L = 200 mm (7.9")
5/16 x 60 w/ Spring
and Flat Washers -
Anchor Bolt
vatech A9 (Model:PHT-30CSS)
4 pcs
(Part No. 34)
Installation Manual
