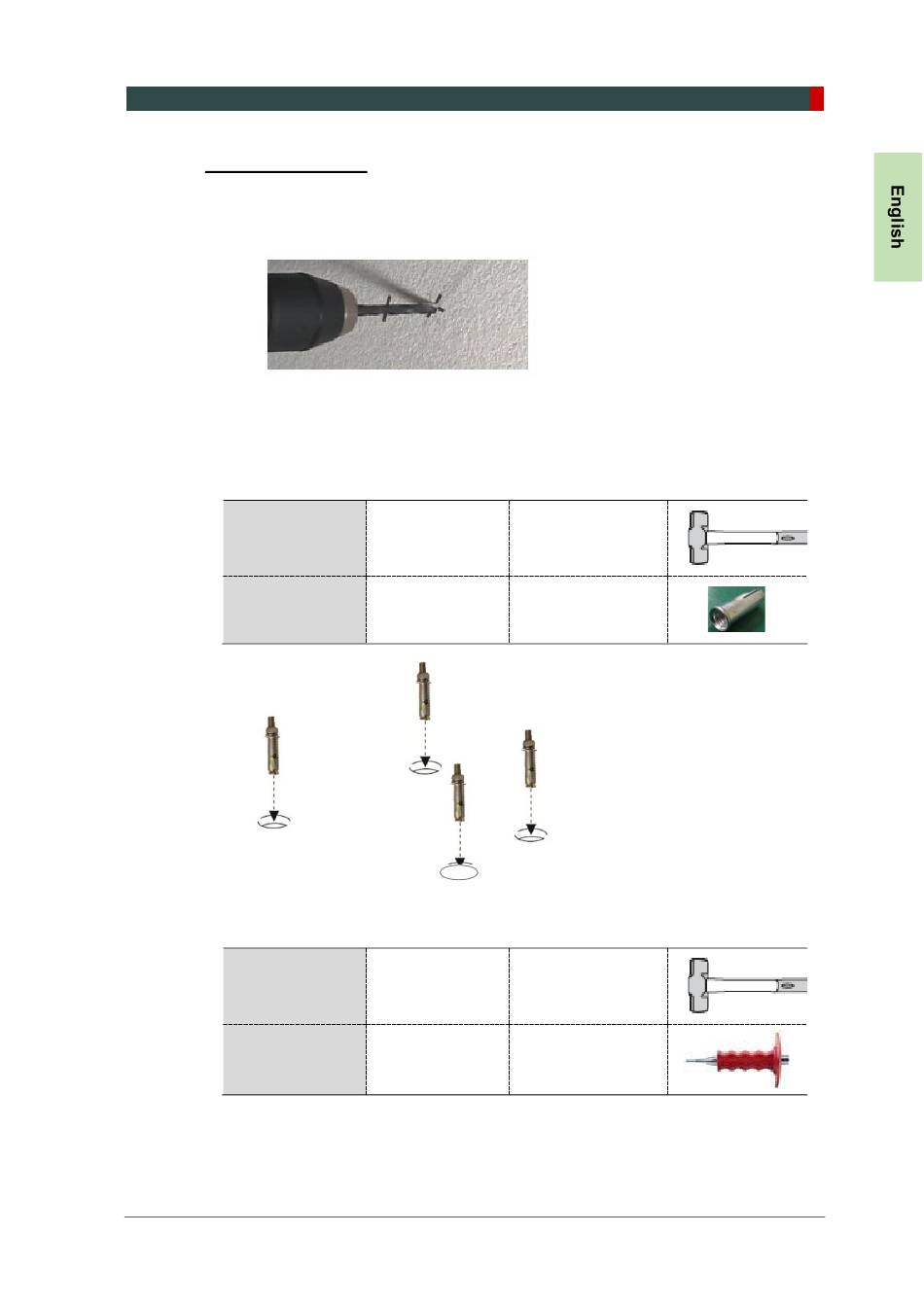

Drilling on the Wall
1.
Drill the wall holes of size 10.5 mm x 30 mm (depth) using the concrete hammer
drill.
2.
Remove the debris and clean the holes using the dust pump.
3.
Using the hammer, insert a Ficher strong anchor into the hole.
Required Tool
Parts and
Accessory
4.
Using the hammer, insert an EHS tool into the inner bolt.
Required Tool
Parts and
Accessory
vatech A9 (Model: PHT-30CSS)
4. Installing the Equipment: Base Stand (Optional)
Hammer
Flat Anchor Bolt
(Part. No. 34) - 4
Hammer
EHS tool
Installation Manual
N/A
M8 x 30
pcs
N/A
EAW H
8x30
53
