4. Installing the Equipment: Base Stand (Optional)
4.

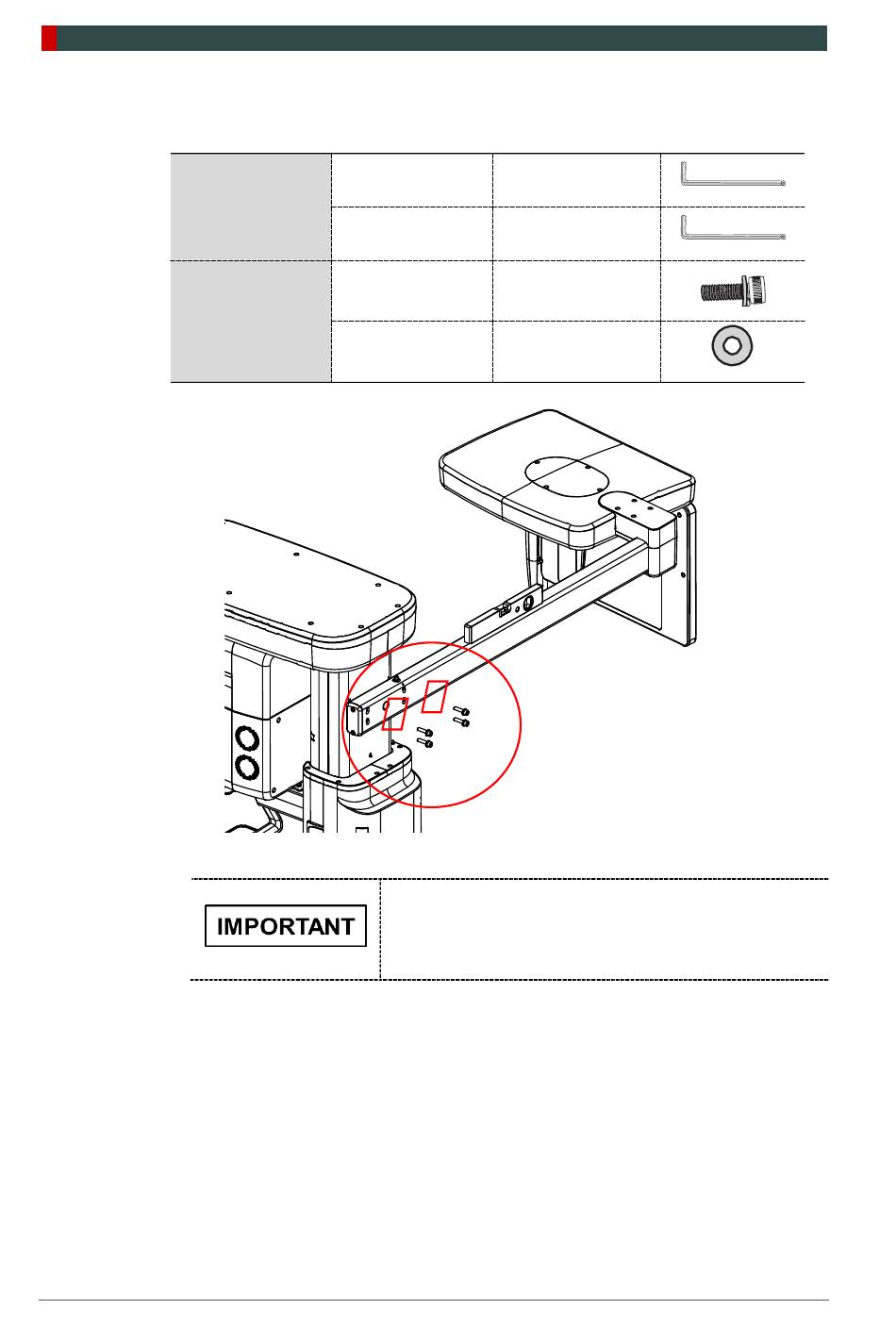

Put the four wrench bolts into each hole and tighten with an Allen Wrench to fix
the CEPH arms on the Main Unit.
Required Tool
Parts and
Accessory
48
Allen Wrench
Allen Wrench
M8 x 35 - 4 pcs
Wrench Bolt
(w/ C E Washer)
C_E_Washer
(If necessary) Place the Sprit level on the CEPH arm
and adjust the M8 x 20 bolts.
vatech A9 (Model:PHT-30CSS)
6 mm / 0.24"
8 mm / 0.31"
(Part No. 25)
4 pcs
(Part No. 25)
Installation Manual
