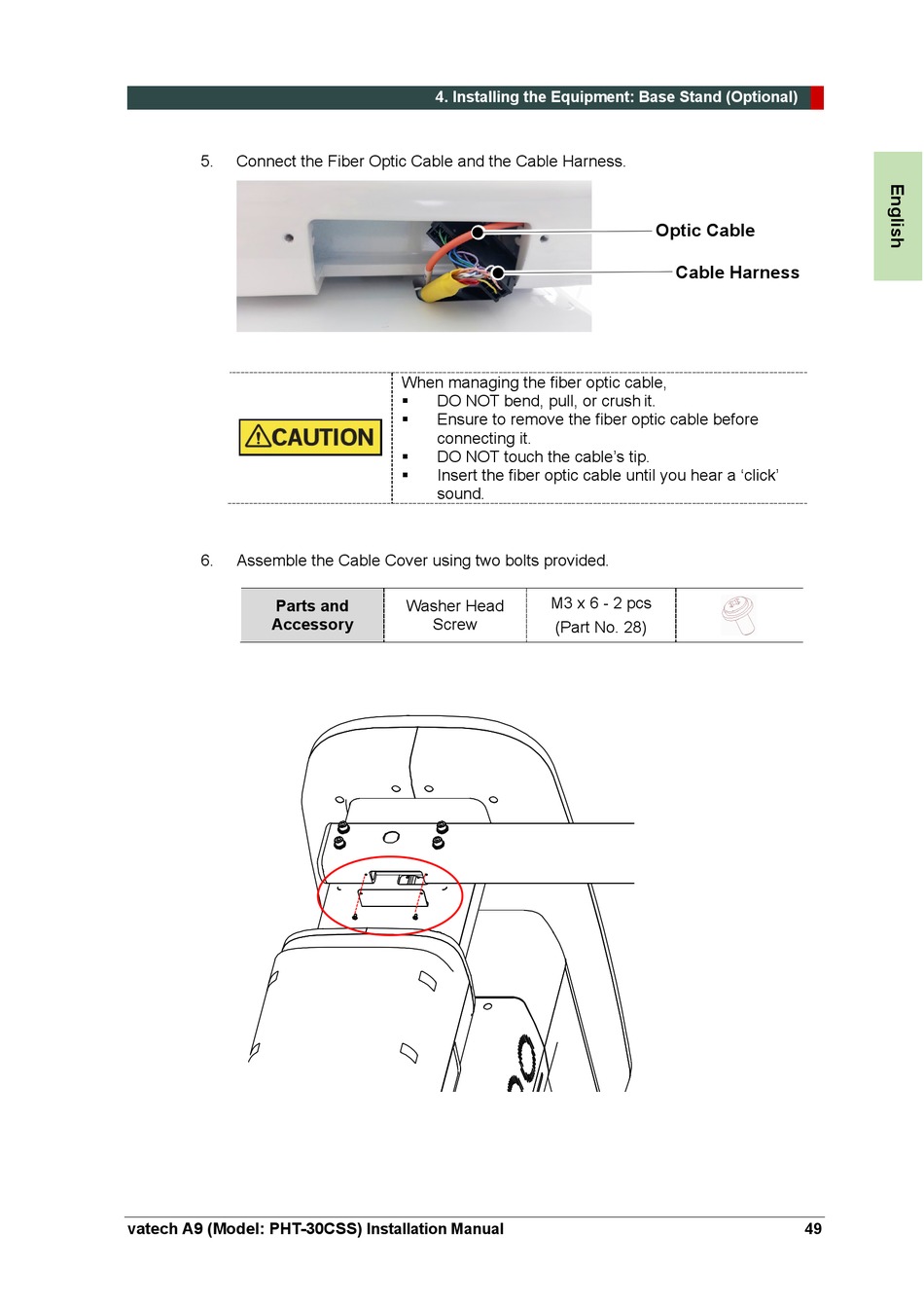

Connect the Fiber Optic Cable and the Cable Harness.
6.
Assemble the Cable Cover using two bolts provided.
Parts and
Accessory
vatech A9 (Model: PHT-30CSS)
4. Installing the Equipment: Base Stand (Optional)
When managing the fiber optic cable,
DO NOT bend, pull, or crush it.
Ensure to remove the fiber optic cable before
connecting it.
DO NOT touch the cable's tip.
Insert the fiber optic cable until you hear a 'click'
sound.
Washer Head
Screw
Installation Manual
Optic Cable
Cable Harness
M3 x 6 - 2 pcs
(Part No. 28)
