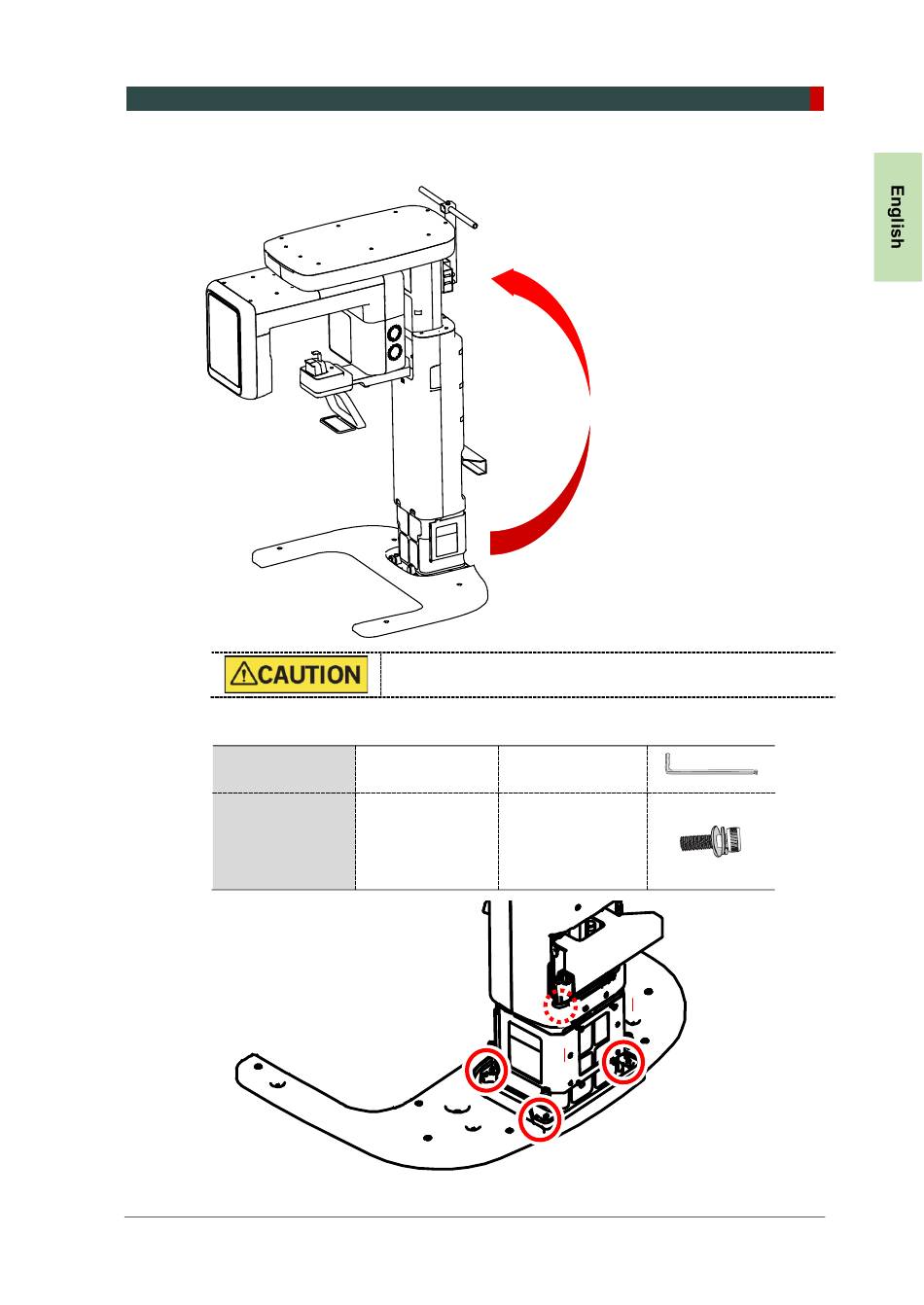

Lift the equipment slowly using the upper carrying handle.
6.
Insert a Wrench Bolt into each hole at four corners of the Column Unit. Tighten
them with an Allen Wrench to fix the Column Unit on the Base.
Required Tool
Parts and
Accessory
vatech A9 (Model: PHT-30CSS)
4. Installing the Equipment: Base Stand (Optional)
Keep the cables away when erecting the equipment.
Allen Wrench
6 mm / 0.24"
M10 x 25
w/ Spring and Flat
Wrench Bolt
Washers – 4 pcs
(Part No. 23)
Installation Manual
45
