4. Installing the Equipment: Base Stand (Optional)
4.3
Installing the Wall and Column Brackets

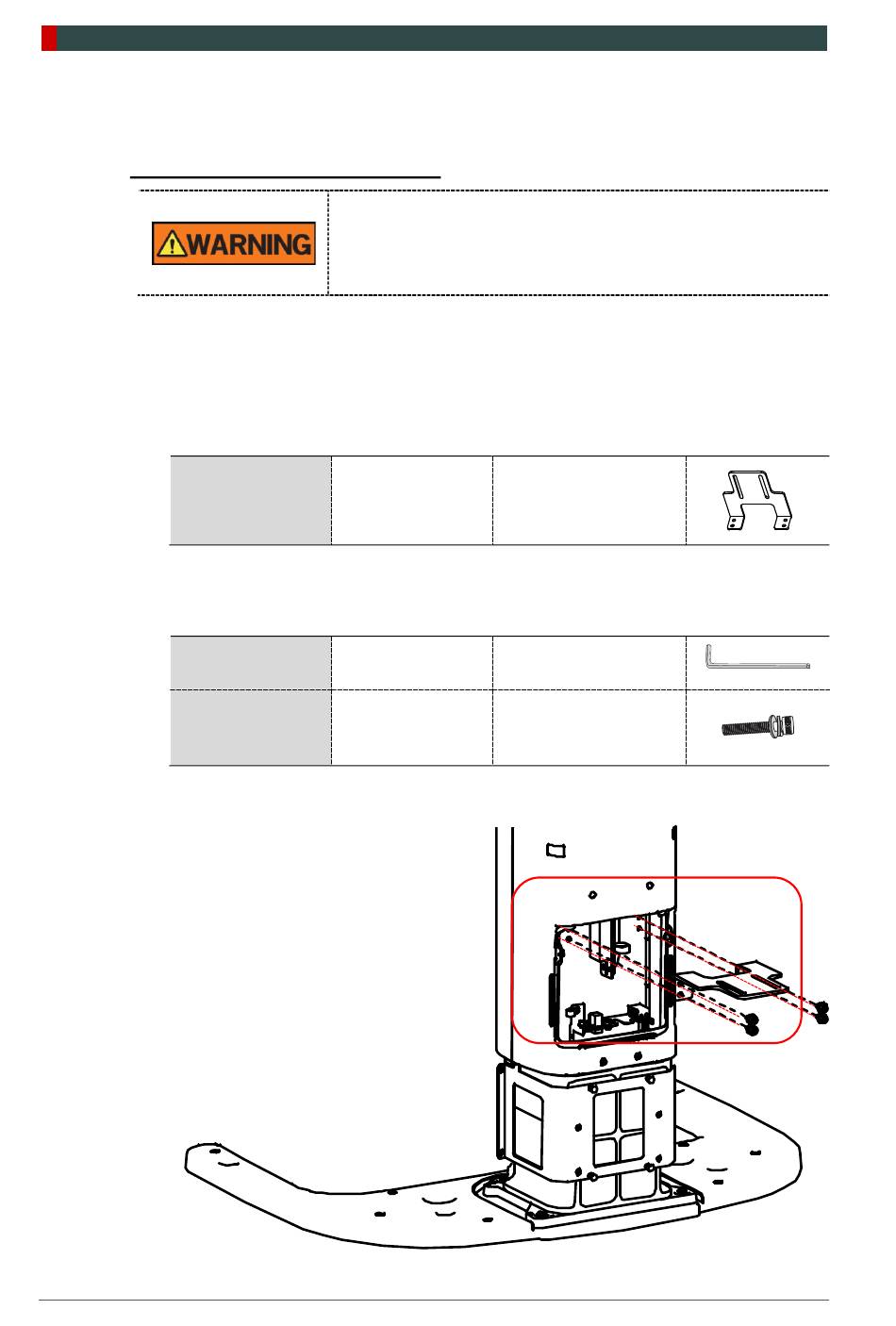

Assembling the Column Bracket
1.
Move the equipment close to the wall selected for the installation.
2.
Remove the plastic wrap covering the Column Unit with a cutter.
3.
Prepare the Column Bracket.
Parts and
Accessory
4.
Assemble the column bracket on the back of the Column Unit using four Wrench
Bolt provided.
Required Tool
Parts and
Accessory
50
The column bracket must be installed. Otherwise, the
equipment may vibrate during scanning.
Column Bracket
Allen Wrench
Wrench Bolt
vatech A9 (Model:PHT-30CSS)
-
6 mm / 0.24"
M8 x 15 w/ Spring
and Flat Washers
- 4pc (Part No. 35)
Installation Manual
