3. Before Installing the System
vatech A9 (Model: PHT-30CSS) is an advanced 3 in 1 digital X-ray imaging system
that incorporates PANO, CEPH (Optional), CBCT imaging capabilities into a single
system.
vatech A9 (Model: PHT-30CSS), a digital radiographic imaging system, acquires and
processes single FOV diagnostic images for dentists. Designed explicitly for dental
radiography, vatech A9 is a complete digital X-ray system equipped with imaging
viewers, an X-ray generator, and a dedicated SSXI detector.
The digital CBCT system is based on a CMOS digital X-ray detector. The CMOS CT
detector is used to capture 3D radiographic images of the head, neck, oral surgery,
implant, and orthodontic treatment. vatech A9 can also acquire 2D diagnostic image
data in panoramic and cephalometric mode.

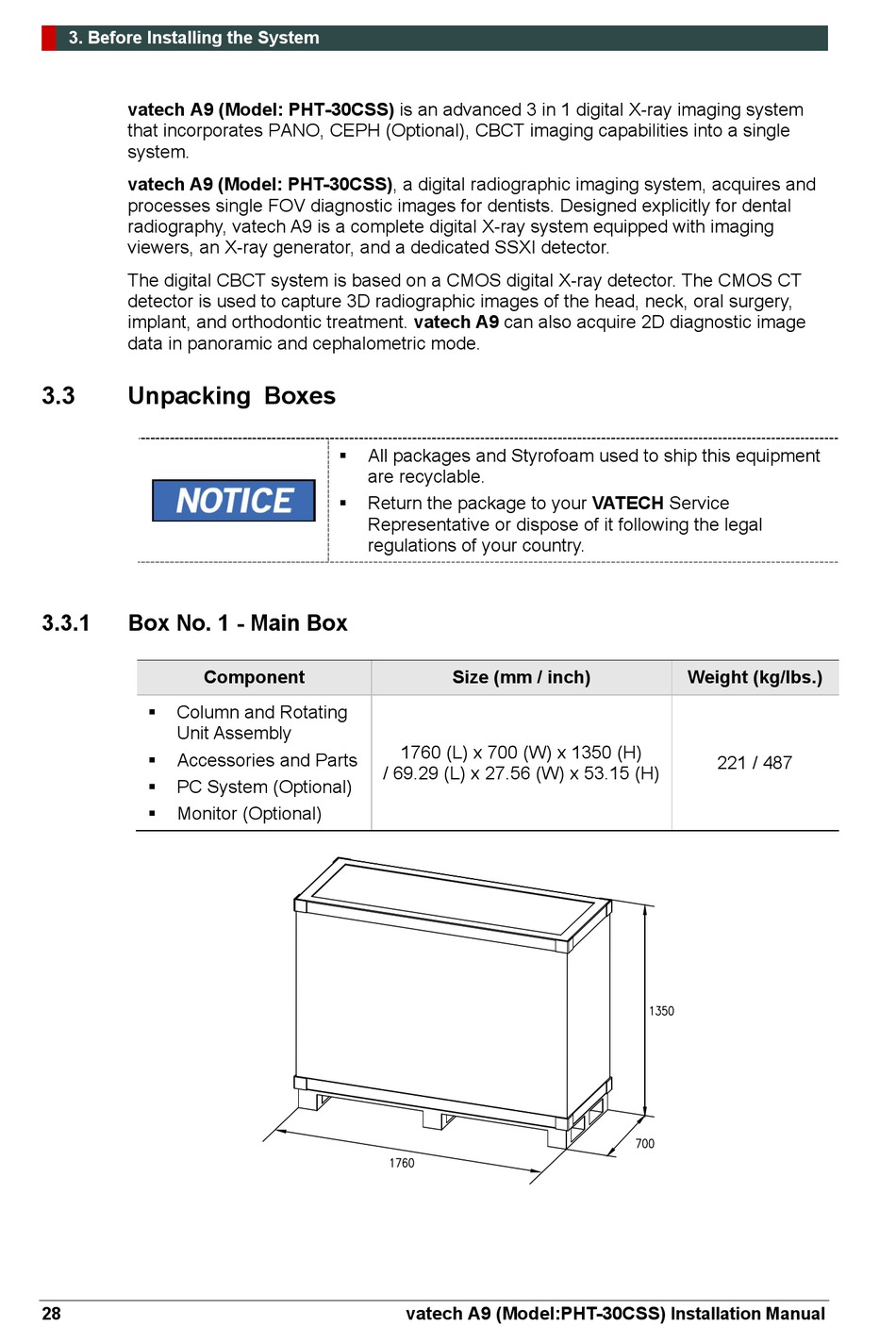

3.3

Unpacking Boxes

3.3.1 Box No. 1 - Main Box
Component
Column and Rotating

Unit Assembly
Accessories and Parts

PC System (Optional)

Monitor (Optional)

28
All packages and Styrofoam used to ship this equipment

are recyclable.
Return the package to your VATECH Service

Representative or dispose of it following the legal
regulations of your country.
Size (mm / inch)
1760 (L) x 700 (W) x 1350 (H)
/ 69.29 (L) x 27.56 (W) x 53.15 (H)
vatech A9 (Model:PHT-30CSS)
Weight (kg/lbs.)
221 / 487
