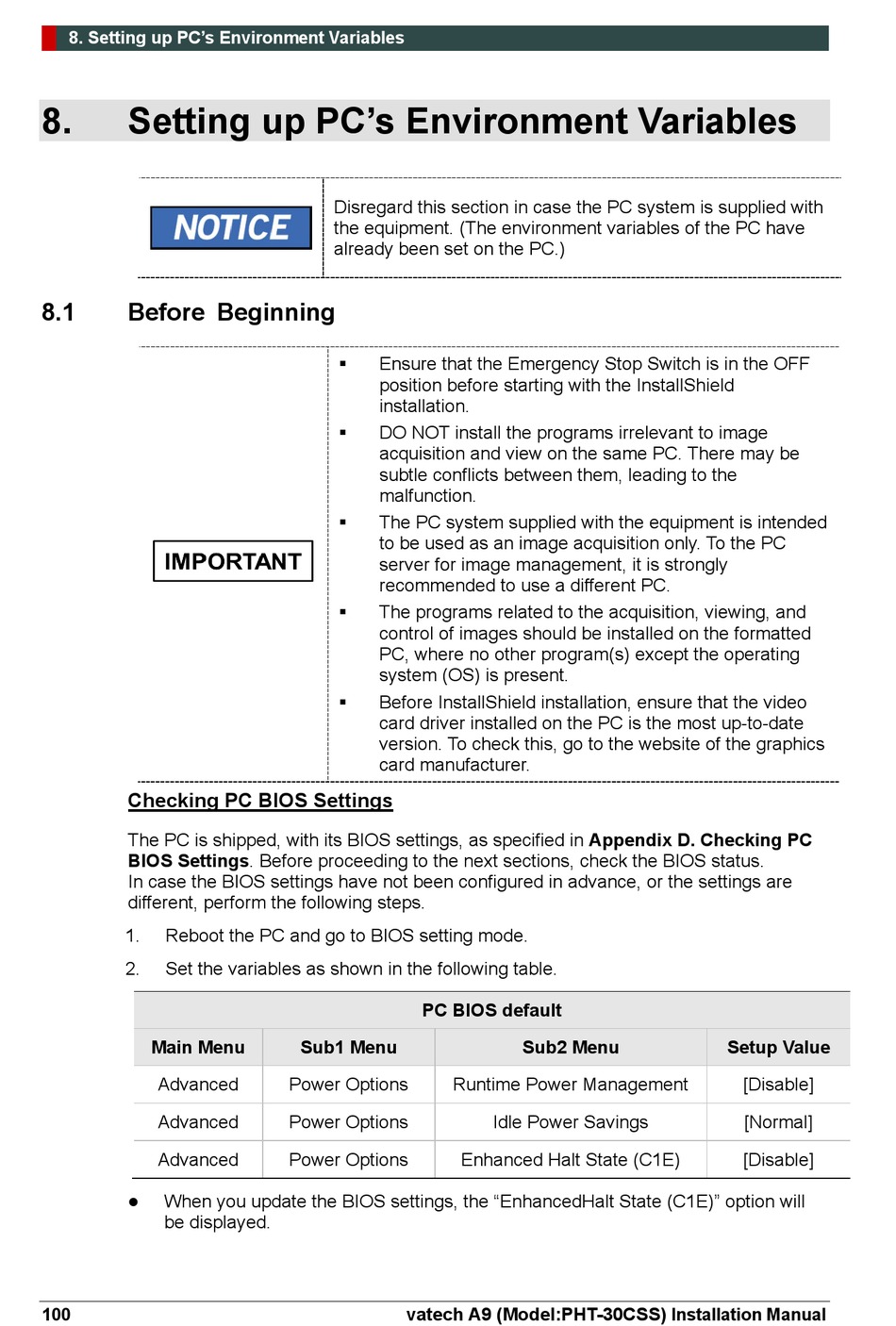

8. Setting up PC's Environment Variables

8. Setting up PC's Environment Variables
8.1

Before Beginning

Checking PC BIOS Settings
The PC is shipped, with its BIOS settings, as specified in Appendix D. Checking PC
BIOS Settings. Before proceeding to the next sections, check the BIOS status.
In case the BIOS settings have not been configured in advance, or the settings are
different, perform the following steps.
1. Reboot the PC and go to BIOS setting mode.
2. Set the variables as shown in the following table.
Main Menu
Advanced
Advanced
Advanced
When you update the BIOS settings, the "EnhancedHalt State (C1E)" option will

be displayed.
100
Disregard this section in case the PC system is supplied with
the equipment. (The environment variables of the PC have
already been set on the PC.)
Ensure that the Emergency Stop Switch is in the OFF

position before starting with the InstallShield
installation.
DO NOT install the programs irrelevant to image

acquisition and view on the same PC. There may be
subtle conflicts between them, leading to the
malfunction.
The PC system supplied with the equipment is intended

to be used as an image acquisition only. To the PC
server for image management, it is strongly
recommended to use a different PC.
The programs related to the acquisition, viewing, and

control of images should be installed on the formatted
PC, where no other program(s) except the operating
system (OS) is present.
Before InstallShield installation, ensure that the video

card driver installed on the PC is the most up-to-date
version. To check this, go to the website of the graphics
card manufacturer.
PC BIOS default
Sub1 Menu
Power Options Runtime Power Management
Power Options
Power Options
vatech A9 (Model:PHT-30CSS)
Sub2 Menu
Idle Power Savings
Enhanced Halt State (C1E)
Setup Value
[Disable]
[Normal]
[Disable]
Installation Manual
