2.

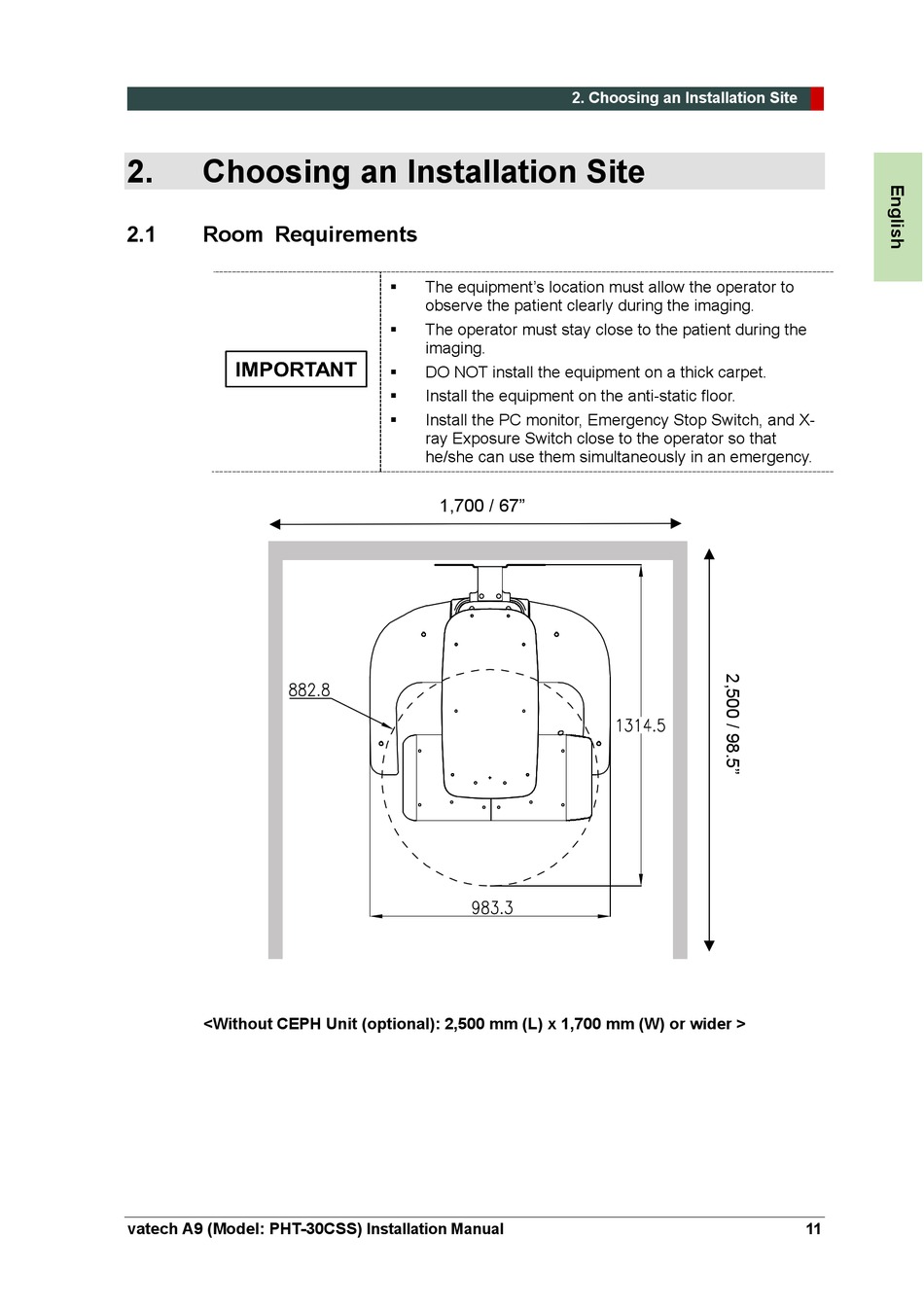

Choosing an Installation Site

2.1

Room Requirements

<Without CEPH Unit (optional): 2,500 mm (L) x 1,700 mm (W) or wider >
vatech A9 (Model: PHT-30CSS)
The equipment's location must allow the operator to

observe the patient clearly during the imaging.
The operator must stay close to the patient during the

imaging.
DO NOT install the equipment on a thick carpet.

Install the equipment on the anti-static floor.

Install the PC monitor, Emergency Stop Switch, and X-

ray Exposure Switch close to the operator so that
he/she can use them simultaneously in an emergency.
1,700 / 67"
Installation Manual
2. Choosing an Installation Site
11
