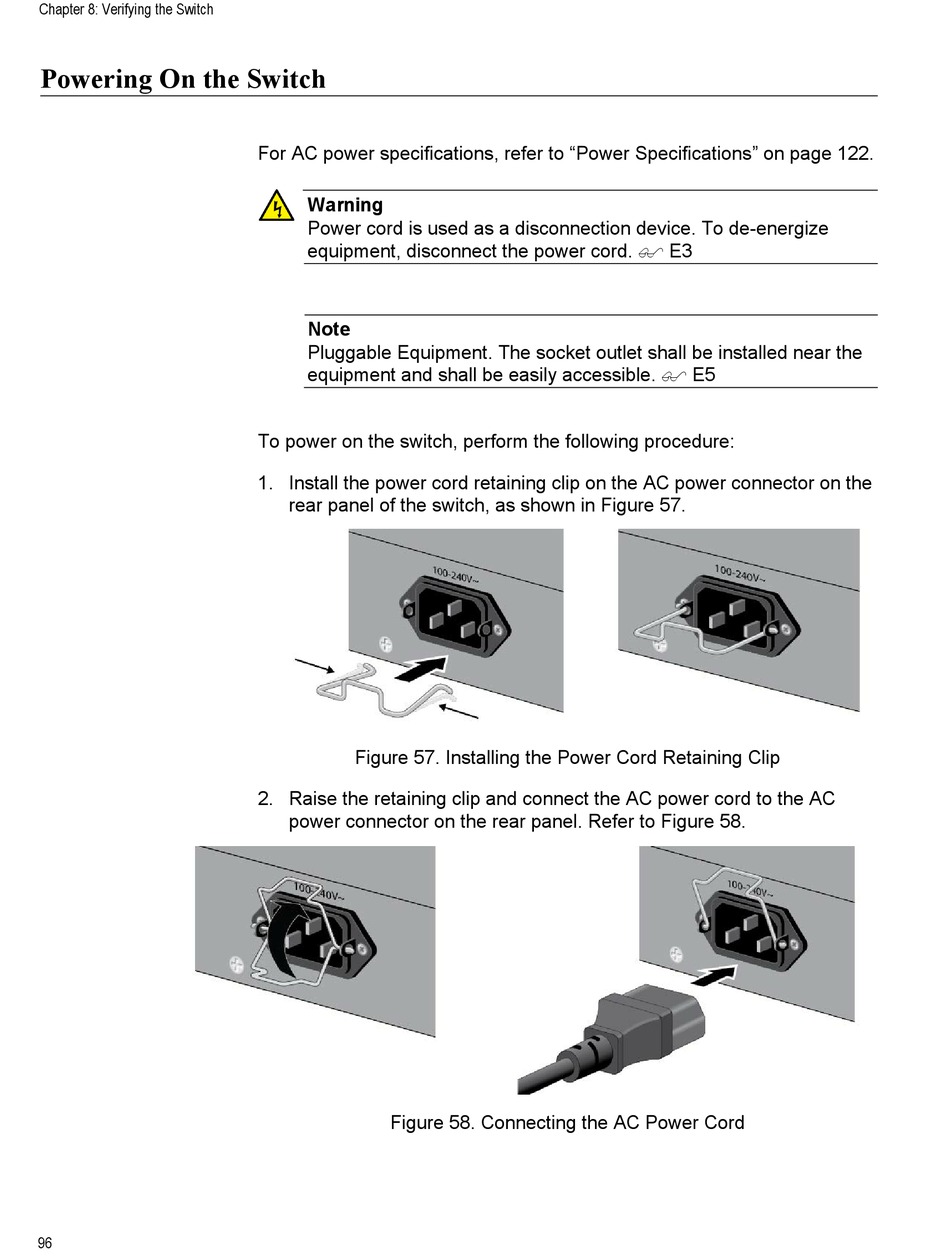

Chapter 8: Verifying the Switch

Powering On the Switch

96
For AC power specifications, refer to "Power Specifications" on page 122.
Warning
Power cord is used as a disconnection device. To de-energize
equipment, disconnect the power cord.  E3
Note
Pluggable Equipment. The socket outlet shall be installed near the
equipment and shall be easily accessible.  E5
To power on the switch, perform the following procedure:
1. Install the power cord retaining clip on the AC power connector on the
rear panel of the switch, as shown in Figure 57.
Figure 57. Installing the Power Cord Retaining Clip
2. Raise the retaining clip and connect the AC power cord to the AC
power connector on the rear panel. Refer to Figure 58.
Figure 58. Connecting the AC Power Cord
