RJ-45 Copper Port Pinouts

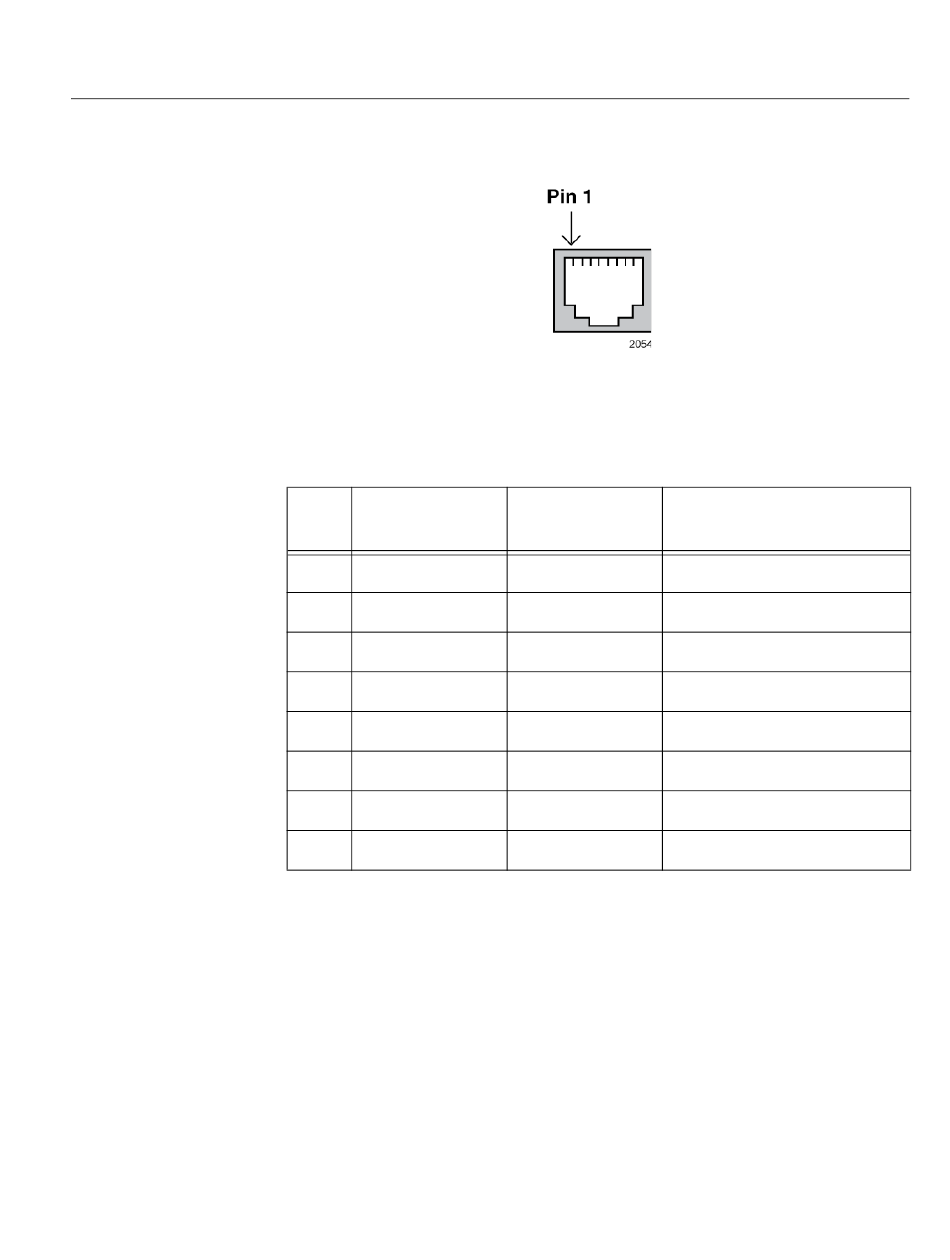

Figure 78 illustrates the pin layout of the RJ-copper ports.
Figure 78. Pin Layout for the RJ-45 Copper Ports (Front View)
Table 15 lists the pin signals for the copper ports.
Table 15. Pin Signals for Copper Ports
10/100Mbps
Pin
MDI
1 TX+
2 TX-
3 RX+
4 Not used
5 Not used
6 RX-
7 Not used
8 Not used
CentreCOM GS970EMX Series Installation Guide for Standalone Switches
10/100Mbps
MDI-X
RX+
RX-
TX+
Not used
Not used
TX-
Not used
Not used
1/2.5/5/10Gbps
Bi-directional pair A+
Bi-directional pair A-
Bi-directional pair B+
Bi-directional pair C+
Bi-directional pair C-
Bi-directional pair B-
Bi-directional pair D+
Bi-directional pair D-
