Installing the GS970EMX/28 Switch

This section contains the procedure for installing the GS970EMX/28
Switch in a standard 19-inch equipment rack with the two equipment rack
brackets included with the device. Here are the required items:
Two equipment rack brackets (included with the switch).

Six M4x8mm bracket screws (included with the switch).

Cross-head screwdriver (not provided).

Four standard equipment rack screws (not provided).

To install the GS970EMX/28 Switch in a 19-inch equipment rack, perform
the following procedure:
1. Place the switch on a table.
Note
If the bumper feet are attached to the bottom on the switch, remove
them before continuing.
2. Attach the equipment rack brackets to the sides of the switch with the
six 4x8mm screws included with the device. Refer to Figure 39.

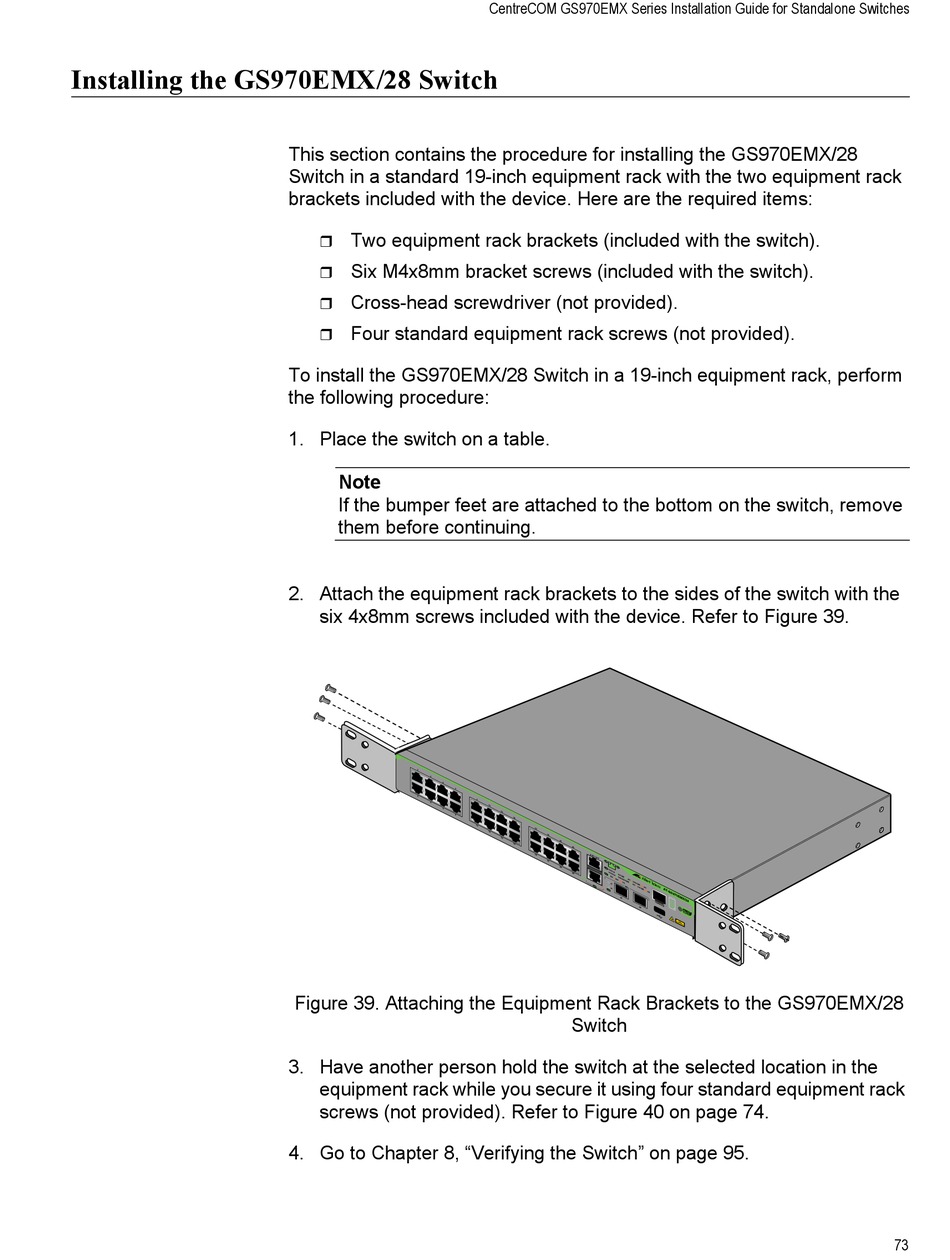

Figure 39. Attaching the Equipment Rack Brackets to the GS970EMX/28
3. Have another person hold the switch at the selected location in the
equipment rack while you secure it using four standard equipment rack
screws (not provided). Refer to Figure 40 on page 74.
4. Go to Chapter 8, "Verifying the Switch" on page 95.
