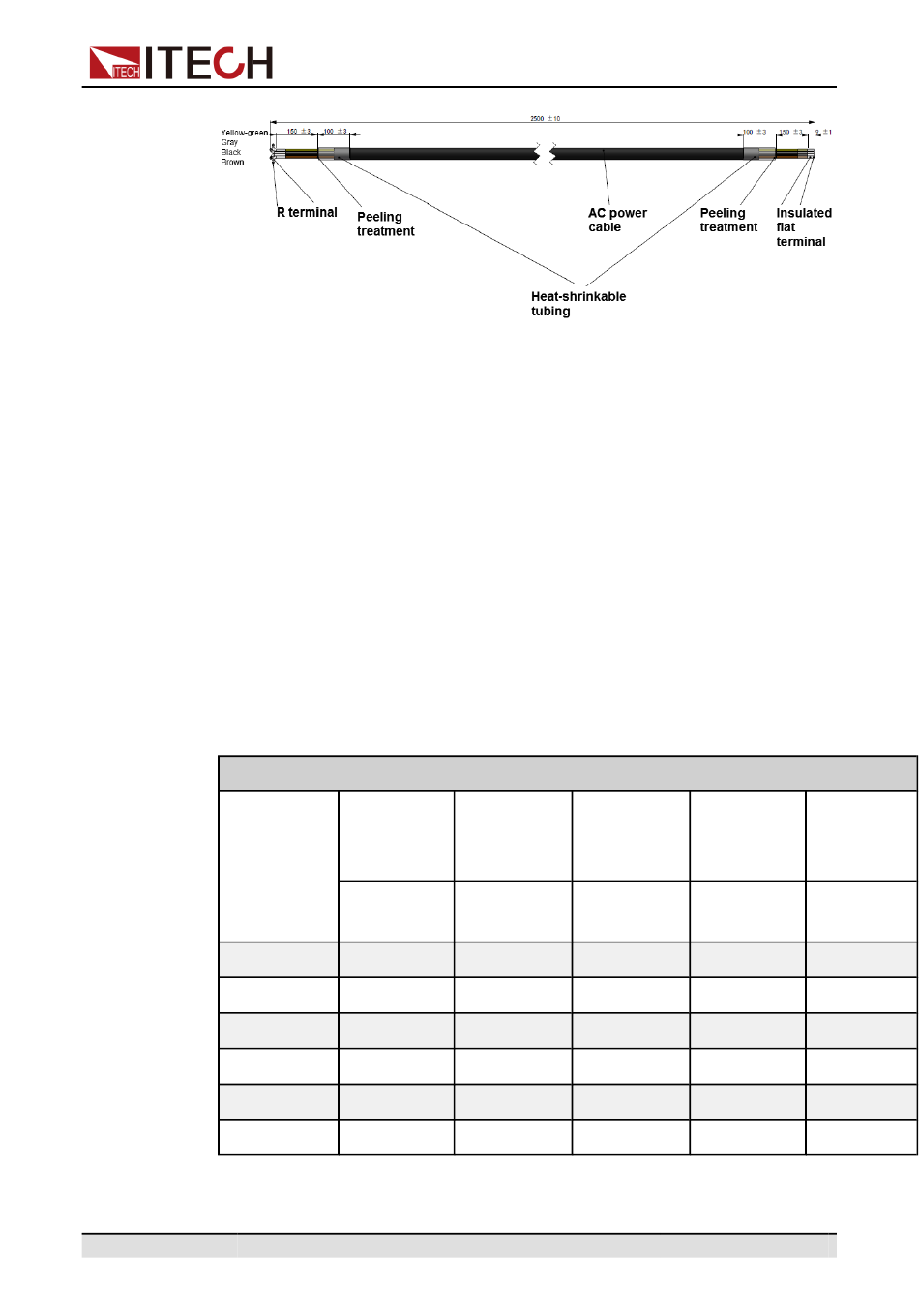

The yellow-green wire is grounding wire, which is connected to the PE terminal
of power input on the rear panel; the others are live wires, which are corre-
spondingly connected to the L1, L2 and L3 terminals of power input on the rear
panel of the instrument.
AC Power Input Level
The input of this series instruments is single-phase or three-phase, and the volt-
age level and frequency are as follows.
•
Single-phase(L/N or L/L): 85V～520V, frequency: 50Hz/60Hz.
•
Three-phase(L1/L2/L3): 110V～520V, frequency: 50Hz/60Hz.
The power setting value of this series instruments will be derated when inputting
low-grade voltage. The derating characteristics are detailed in the following ta-
ble. And different model of rated AC current is different, the detailed specifica-
tion refer to the technical specification.
Output Power Derating Characteristics with AC Input Voltage
Rated Output
Power
1.7kW
3.4kW
5.1kW
10.2kW
2kW
4kW
1-Phase 1-Phase
Low Input High
Range Range
90 -145 180-200
VAC VAC
1kW 1.7kW
1kW 2kW
1kW 2kW
2kW 4kW
1kW 2kW
1kW 2kW
Copyright © Itech Electronic Co., Ltd.
Inspection and Installation
1-Phase
Input High Input
3-Phase
Range
200-264 180-264
VAC VAC
1.7kW 1.7kW
2.3kW 3.4kW
2.3kW 3.5kW
4.6kW 7.1kW
2kW 2kW
2.3kW 3.5kW
3-Phase
342-520
VAC
1.7kW
3.4kW
5.1kW
10.2kW
2kW
4kW
