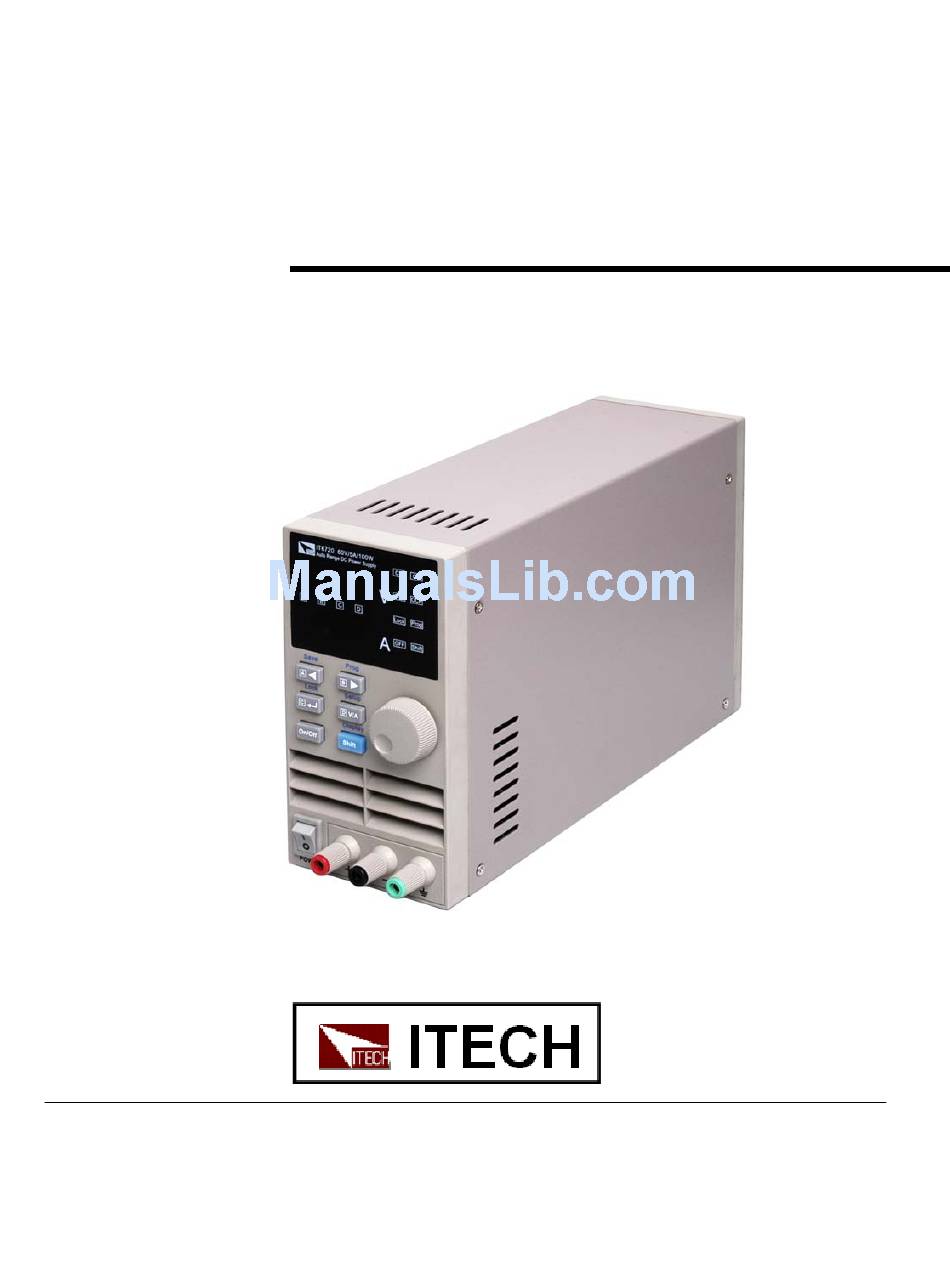

- Page 1 Digital Control Power Supply IT6721 User ’s Manual ITECH Access www.itechate.com for more products information...
-
Page 2: Safety Regulations
Warranty This hardware product is warranted against defects in material and workmanship for a period of ONE year from date of delivery. IT6721 power supply for use with a hardware product and when properly installed on that hardware product, are warranted not to fail to execute their programming instructions due to defects in material and workmanship for a period of 90 days from date of delivery. -
Page 3: Limitation Of Warranty
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) The ITECH product you have purchased is subject to Directive 2002/96/EC of the European Parliament and the Council of the European Union on waste electrical and electronic equipment... - Page 4 About IT6721 With widest voltage and current range, IT6721 digital DC power supplies are applied in many fields. With max power 180W and adjustable output in 60V/8A, auto control the voltage/current slew rate, the power rate three times rapid than other similar products, a unit can replace three models (60V*3A/ 30V*6A/ 20V*8A), reduce your repeat investment.
-
Page 5: Panel Layout

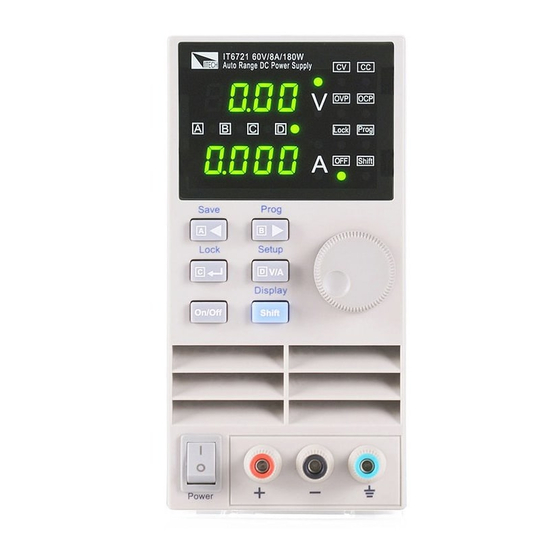

Panel Layout IT6721 60V/8A/180W Voltage setup Indicator Auto Range DC Power Supply CC mode Indicator CV mode Indicator Voltage Value OCP Indicator Step B + Memory B OVP Indicator Step A + Memory A Step C + Memory C Memory mode Indicator... -
Page 6: Setting The Voltage
Confirm whether the power supply has been destroyed in transportation, if there is any flaw, please contact the vender. Confirm whether the AC input voltage of IT6721 comply with the standards of your country or region. Note: If switching input voltage, operate through the back panel switch (110V/220V). -
Page 7: Key Lock Function
OCP value. NOTE Lock Prog If the OVP and OCP settings are lower than the actual voltage/current value, Shift the output of power supply will be turned off. The default settings of OCP current value IT6721 are OVP=61V, OCP=5.1A. - Page 8 Auto Range DC Power Supply after setting the key sound, use to select store group. Press to confirm the chosen group and end the setup mode. IT6721 allows Lock Prog customers to store 100 groups with A/B/C/D four set value for Shift every group.
-
Page 9: Recall Operation
Store operation In the normal working mode, set the voltage/current value to be stored. Press , now the Cursor will wink together. Press A B C D Shift Shift any key in to save it. D V/A D V/A Recall operation Shift Shift Prog... -
Page 10: Specifications
6: Specifications Specs Specifications IT6721 Output Rating Voltage 0~60V Current 0~8A Power 180W <0.01%+5mV Voltage Load Regulation Current <0.01%+5mA Voltage <0.01%+5mV Line Regulation Current <0.1%+5mA Programming Accuracy Voltage <0.05%+10mV Current <0.3%+5mA Read back Accuracy Voltage <0.05%+10mV <0.3%+5mA Current Ripple <5mV rms... - Page 11 Memo www.itechate.com...
- Page 12 Http://www.itechate.com © Copyright 2006 All ITECH Rights Reserved Ver1.0 /MAR 2008/ IT6721...
