5. Software Control - Lightware Device Controller
5.10. Event Manager
The feature means that the device can sense changes on its ports and is able to
react according to the pre-defined settings. The development idea of the Event
manager is based on users' feedbacks. In many cases internal events (E.g. Signal
present or HDCP active) are necessary for displaying but it is not easy when the
device is hard to access (e.g. built under the desk). For more details and examples about Event Manager,
please visit our website (www.lightware.com) and download the
Downloads section.
Event manager can be configured to perform an action if a condition has been detected. E.g. the desired
setup is that after a certain type of signal has been detected on I1 port, the port has to be switched to O1.
The settings can be done via the LDC in the Control/Events tab, or by LW3 protocol commands. The number
of configurable events depends on the device that you are currently using.
Numerous new ideas and requests have been received in connection with the features and settings of the
Event manager since the first release. Therefore, the user interface has been re-designed and many new
functions have been implemented. The Event editor can be opened by pressing the Edit button at each Event.
There is a grey bar on the left of the Event panel in each line. If a condition and an action are set and the Event
is enabled, the bar is displayed in green.

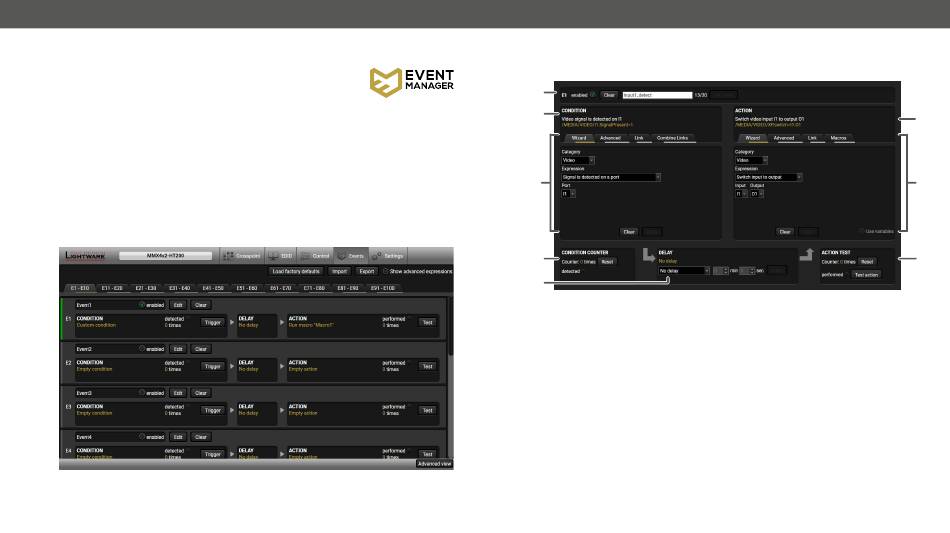

Event Manager menu, list of Events
Event Manager Application Notes
#eventmanager
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
5.10.1. The Event Editor
Press the Edit button in the desired Event line to open the Event editor window.
1
2
in the
3
4
5
Event header
1
2 Condition header
Condition panel
3
4 Condition counter
Delay settings
5
Action header
6
7 Action panel
Action test
8
The name of the Event is displayed. Type the desired name and press the Set
name button. The Event can be cleared by the Clear button. Use the tick mark
to enable/disable the Event.
If the condition is set, the description (white colored text) and the exact LW3
protocol expression (yellow colored text) can be seen. If the advanced mode
was used the description is "Custom condition".
Different tools are available at the tabs to set the desired Condition. The
parameters and settings are displayed below the buttons.
If the set condition is detected (or triggered), the indicator turns green for two
seconds and the counter is increased. The counter is reset at boot.
The action can be scheduled to follow the condition after the set time value.
If the action is set, the description (white colored text) and the exact LW3
protocol expression (yellow colored text) can be seen. If the advanced mode
was used the description is "Custom action".
Different tools are available at the tabs to set the desired Action. The
parameters and settings are displayed below the buttons.
The set action can be tested to see the working method in the practice.
