3. Installation

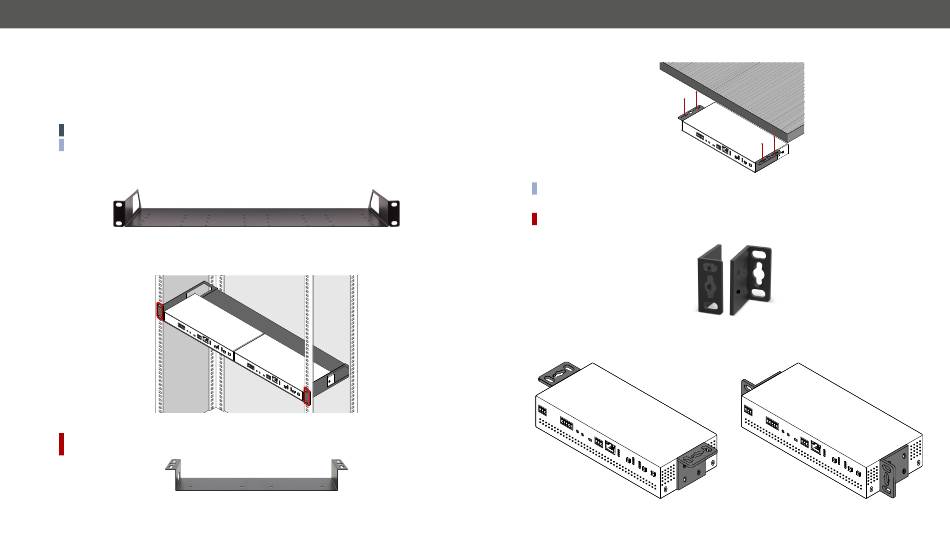

3.1. Mounting Options
To mount the matrix, Lightware supplies optional accessories for different usage. There are two kinds of
mounting kits with a similar fixing method. The receiver has two mounting holes with inner thread on the
bottom side; see the bottom view in the
please contact sales@lightware.com. Fasten the device with the screws enclosed to the accessory.
More details about the accessories and the mounting can be found in the

WARNING! Always use the supplied screws. Using different (e.g. longer) screws may damage the device.

INFO: The matrix is half-rack sized.
3.1.1. 1U High Rack Shelf
This accessory allows rack mounting for half-rack, quarter-rack and pocket sized units.
1U high rack shelf provides mounting holes for fastening two half-rack or four quarter-rack sized units.
Pocket sized devices can also be fastened to the self.
3.1.2. Under-desk Double Mounting Kit

DIFFERENCE: This kind of mounting is recommended for MMX4x2-HDMI and MMX4x2-HT200 models
only.

Under-desk double mounting kit

Mechanical Drawings section. To order mounting accessories,
Mounting Assembly
1U high rack shelf
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
The UD-kit double makes it easy to mount a single matrix on any flat surface (e.g. furniture).
Guide.

INFO: The chipboard screws are not supplied with the mounting kit.
3.1.3. Rack Ear-mounting

DIFFERENCE:
The device can be mounted by the supplied rack ears.
Use the M4 Allen-head screws supplied with the matrix to fix the ear to the housing. The design allows
rotating the ears by 90°; choose the layout that fits the installation the best.
This kind of mounting is available for MMX4x2-HDMI-USB20-L model only.
Rack ears
