5. Software Control - Lightware Device Controller
5.5.6. Digital Audio Output
The port properties windows of the video and audio outputs are mirrored. For example the same window will
be opened when you select the HDMI OUT1 on the Video or the Audio sections. The available settings can
be found in the HDMI Video Output section.
5.5.7. Analog Audio Output

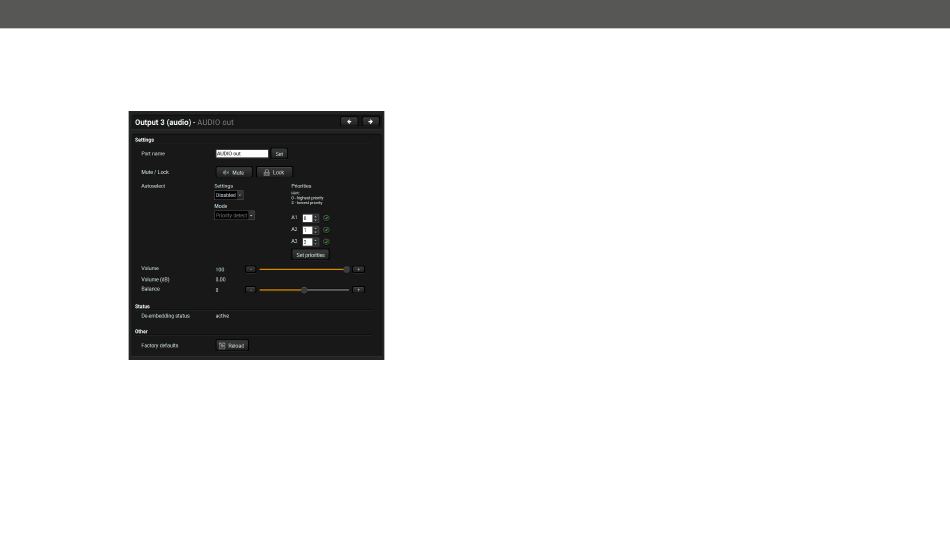

Port properties window of the analog audio output
Available settings: #analogaudio
▪ Mute/unmute the port;
▪ Lock/unlock the port;
▪ Autoselect settings: enable / disable, mode, and priorities. (See more details about the feature in
Autoselect Feature section);
▪ Volume: from 100 to 0%, in step 1% (0 dB to -57 dB, in step 0.375 dB (default is 0 dB));
▪ Balance: from -100 to 100, in step 1 (default is 0 = center);
▪ Reloading factory default settings for the selected port.
#volume #balance
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
