5. Software Control - Lightware Device Controller

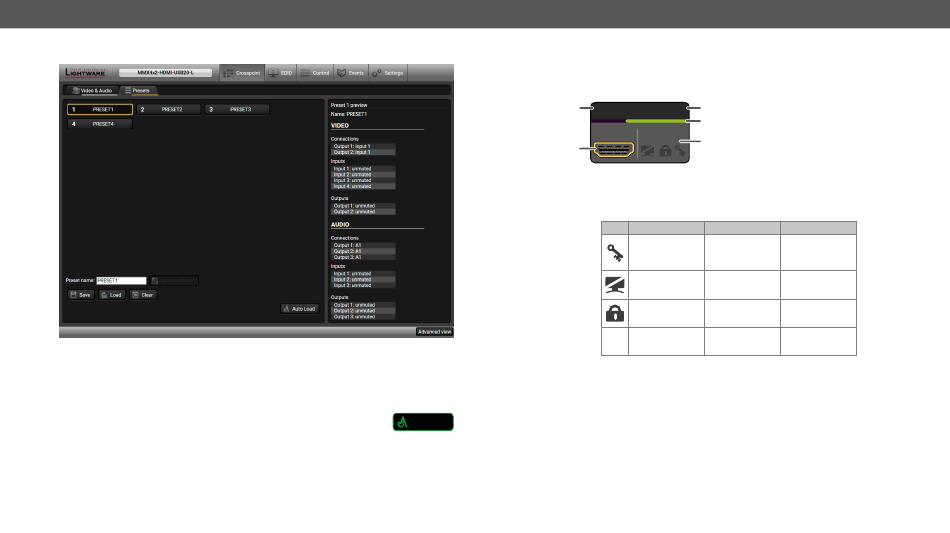

5.4.2. Presets Tab
Preset tab in the Crosspoint menu
The recent crosspoint states and settings can be saved into four presets and loaded when required. You can
set a unique name with the Rename Preset button and save it with the Save button. Previously saved presets
can be recalled by the Load button and setttings deleted by the Clear button.
Auto Load Mode Button
When the Auto Load button is highlighted in green, the mode is active. In this case,
confirmation is not required: the selected preset is loaded immediately when the button
is pressed.
MMX4x2 series – User's Manual
5.4.3. Port Tiles
The colors of the port tiles and the displayed icons represent different states and information:
State Indicators
Following icons display different states of the port/signal:
Auto Load
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
1
2
1 3
HDMI OUT1 O1
4
3
A
4
5
2
5
#lock #unlock #mute #unmute
Icon Icon is grey Icon is black
A
Signal is not Signal is
encrypted with encrypted with
HDCP HDCP
A
Port is unmuted Port is muted
A
Port is unlocked Port is locked
A
Autoselect is
-
disabled
42
Port name
Port icon
Port number
Signal present
indicator
green: present
grey: not present
State indicators
Icon is green
-
-
-
Autoselect is
enabled
