Ethernet - Lightware MMX4x2 Series User Manual

   
5. Software Control - Lightware Device Controller
5.9.2. Ethernet
DIFFERENCE:
MMX4x2-HDMI-USB20-L model has three Ethernet ports. TPS port can be found on
MMX4x2-HT200 model only.
Ethernet Ports
Three ports are displayed in the Ethernet settings: Local, CPU, and TPS*. You can check the status of the
Ethernet line via each port: the speed and the duplexity of the connection.
The following settings are available for each port:
Enabling / disabling the port; **
▪
Reloading factory defaults.
▪
* Only MMX4x2-HT200 model has TPS Ethernet port.
** CPU Ethernet port cannot be disabled.

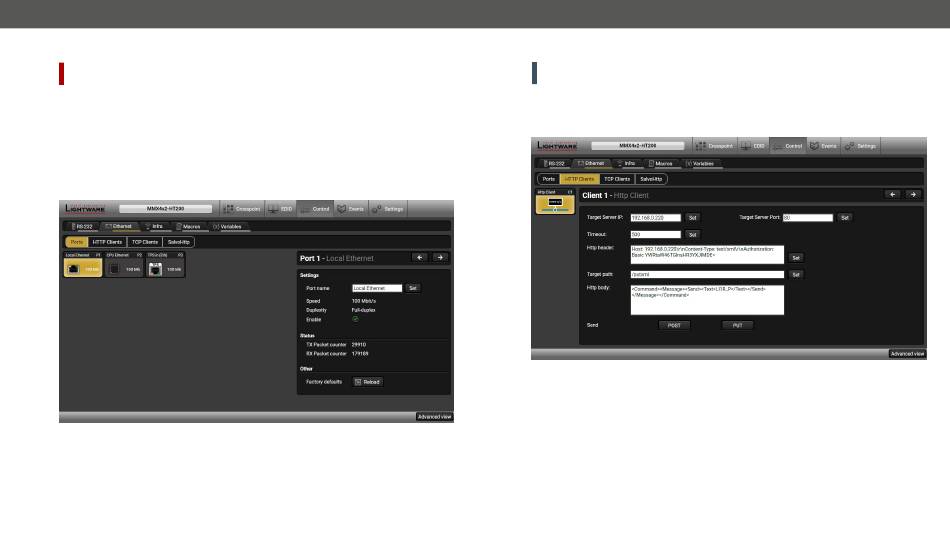

Ports tab in the Control/Ethernet menu
MMX4x2 series – User's Manual
HTTP Clients (HTTP Post and Put Message Sending)

ATTENTION!
device. Encrypted transmission (HTTPS) is not supported.
The HTTP Clients tab allows sending HTTP post and put messages to the desired server IP:port no. Control
commands can be send to the target device, but it is not suitable for processing the response (e.g. querying
a parameter/status), since the response is just an acknowledge (ACK).
The feature is available also by LW3 commands, see the
When you press the enter in the Http header or Http body text box, the \r\n is added automatically.
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
This feature means posting or putting HTTP messages from the Lightware device to another
HTTP Messaging
HTTP Clients tab in the Control/Ethernet men
53
#http
section.
