5. Software Control - Lightware Device Controller
5.13.3. Upload the Settings to a Device (Restore)
WARNING!
Please note that the settings will be permanently overwritten with the restored parameters
in the device. Withdrawal is not possible.
ATTENTION!
The cloning can be successful if the backup file is downloaded from the same type of source
device as the destination device.
The Restoring Process
Step 1. Select the Settings / Backup tab from the menu.
Step 2. Click on the Choose file button on the right panel and browse the desired file.
Step 3. The file is checked and the result will be displayed in the textbox below. If the file is correct, the
settings can be restored.
Step 4. Choose the IP settings that you want to use after backup. You can apply settings from the backup file,
keep actual settings, set it manually in a dialog box or apply DHCP.
Step 5. Select the desired MAC filter settings to be applied in the device. See more information about this
feature in the
MAC Filter Allowlist
Step 6. Press the Start restore process button and click on the Yes button when asked.
Step 7. Reboot the device to apply the network settings after finishing.
5.13.4. Create and Restore Backups from the Device Memory

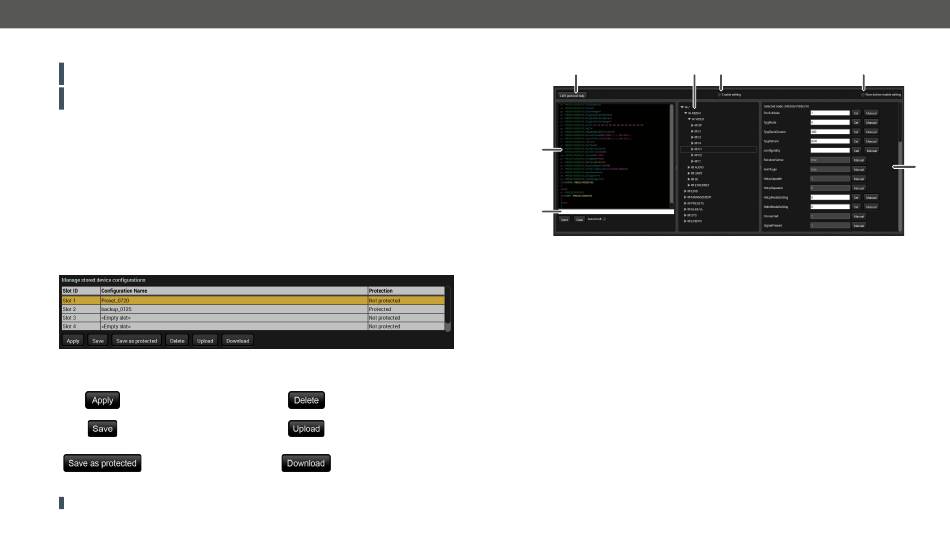

The device can store configurations in its own memory, four slots are available for this purpose.
You can save the configuration to the desired slot:
without protection: it can be easily applied/deleted, or
▪
with protection: it may request a password to apply or delete the configuration.
▪
Loading the selected
configuration
Saving the current configuration
to the selected slot without
protection
Saving the current configuration
to the selected slot with a
password
The presets can be used for the macros as well, please see the
WARNING!
Loading factory default settings will erase all presets in the device memory!
section.
Deleting the selected
configuration
Loading a configuration from
a file to the selected slot
Saving the selected
configuration as a file
Macros
section.
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
5.14. Advanced View Window
1
6
7
1
LW3 protocol help
2
Protocol tree
Edit mode
3
Warning mode
4
5
Node list
#advancedview
#terminal
6
Terminal window
7
Command line
2
3
Pushing the button opens a help window that describes the most important
information about LW3 protocol commands in HTML format.
LW3 protocol tree; select an item to see its content.
The default appearance is the read-only mode. If you want to modify the
values or parameters, tick the option. You will be prompted to confirm your
selection.
If this is checked, a warning window pops up when you enable Edit mode.
Correspondent parameters and nodes are shown that are connected to the
selected item in the protocol tree. The commands typed in these fields are
escaped automatically
Manual button:
Manual (short description) of the node can be called and
displayed in the terminal window.
Set button:
Saves the value/parameter typed in the textbox.
Call button:
Calls the method, e.g. reloads factory default settings.
Commands and responses with time and date are listed in this window. The
sent command starts with '>' character, the received response starts with '<'
character. The color of each item depends on the type of the command and
the response. The content of the window can be emptied by the Clear button.
If the Autoscroll option is ticked, the list is scrolled automatically when a new
line is added.
The commands typed in this line are not escaped automatically. See more
information in the
Escaping
section.
69
4
5
