5. Software Control - Lightware Device Controller

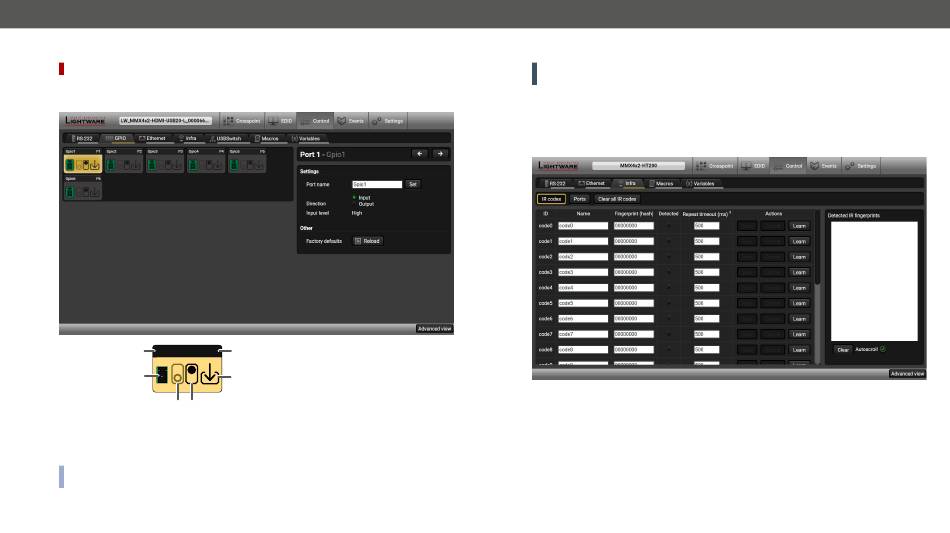

5.9.3. GPIO

DIFFERENCE: This section refers to the MMX4x2-HDMI-USB20-L model only.
The GPIO port has 6 pins, which operate at TTL digital signal levels and can be controlled by LDC or protocol
commands. Select a GPIO pin under the Port settings section; the settings (pin direction and input level) are
displayed on the port tiles as well.
1

Gpio 1

2
3 4
* The black-highlighted symbol means the current setting.
INFO:
Output level can be set only in case of setting the pin direction to Output. In case of input direction
the output level setting and the Toggle button is not available.
For more details about GPIO interface, see the
#gpio
1 GPIO pin name
6
P1
2 GPIO port icon
5
3 Low level indicator *
4 High level indicator *
5
Pin direction:
Input: down arrow
Output: up arrow
6 GPIO port number
GPIO Interface section.
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
5.9.4. Infra

ATTENTION! The device has no built-in Infrared receiver and transmitter. For the complete usage attach
an IR emitter unit to the IR OUT and an IR detector unit to the IR IN connectors.
Infrared (IR) receiver and transmitter options can be found on this tab. There are three submenus available
under it: IR codes, Ports, and Clear all IR codes.
IR Codes #infra #infrared
The user can set the name of the IR code, the fingerprint (hash), and the repeat timeout in ms, and actions
can be ordered to each IR code as well.
IR codes window in Control menu
