5. Software Control - Lightware Device Controller
5.12. The Built-in Miniweb
DEFINITION:
The miniweb is a dedicated location in the memory where an HTML file can be uploaded to.
If the <IP_address>/index.html page is opened in a web browser the file is displayed.
ATTENTION!
The Miniweb is available from firmware package v1.2.0. The default control page can
installed in the device during the first firmware update process by the user if the necessary parameter is
enabled. See the
Step 3. Check the update parameters.
The default control page allows the following:
▪
Source selection: This block can be used to select an input or enable/disable the Autoselect remotely
e.g. from a mobile device.
▪
Action triggers: The action trigger buttons can be used to perform a configured Event Action without
waiting for the condition to occur. This can be done remotely by a mobile device, too.

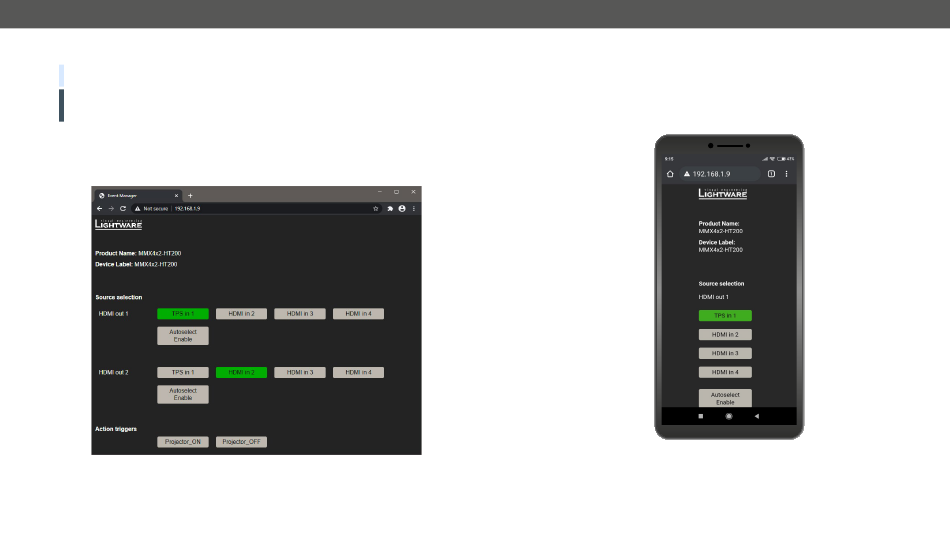

The Control Page Displayed in a Desktop Browser (with Action Trigger Buttons)
section.
#builtinweb
#miniweb
#web
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
5.12.1. Opening the Miniweb
The Miniweb is available by:
Opening the web browser and typing the IP address of the desired device in the address line,
▪
▪
Launching the LDC, connecting to the device, navigating to Settings/Status and pressing the Open
miniweb button.
▪
The host name can be used instead of the IP address; see the
The Control Page Displayed in a Smartphone Browser
66
Setting the Host Name
section.
