5. Software Control - Lightware Device Controller
Highlighting the Device
DIFFERENCE:
This feature is available only from FW package v1.6.0b19.

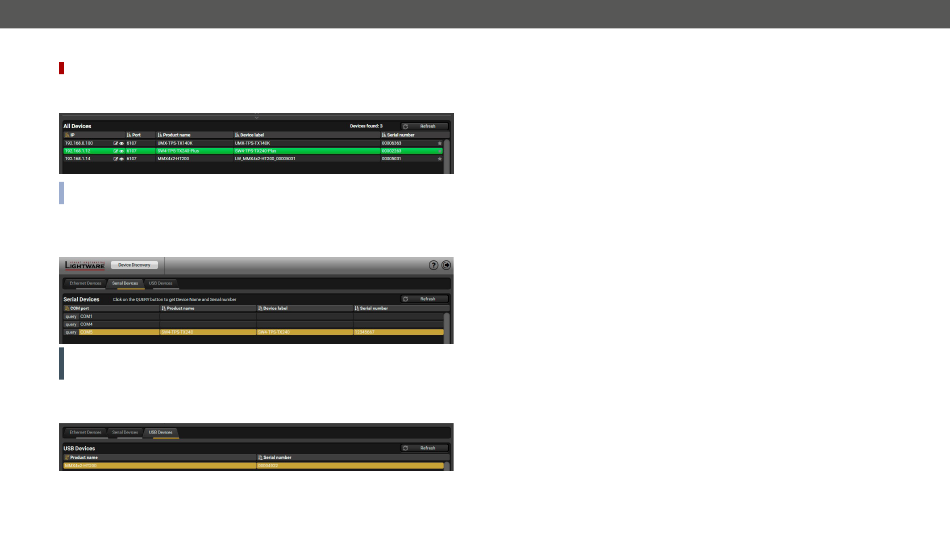

The opposite feature is also available to help finding the desired device. Press the Show Me button for 5
seconds until the front panel LEDs start to blink slowly. In parallel, the device is highlighted in green for 4 seconds
in the Device discovery window of the LDC.
INFO:
"Highlight Me" is the default function of the Show Me button. If you assign a different function to the
button, the feature above will not be available.
5.3.2. Serial Tab
If the device is connected via the RS-232 port, click on the Query button next to the desired serial port to
display the device's name and serial number. Double-click on the device, or select it and click on the green
Connect button.

ATTENTION! Before the device is connected via the local RS-232 port, make sure that Control mode and LW3
protocol are set on the serial port. Furthermore, the RS-232 port must be free and other serial connection
must not be established to the device over that port.
5.3.3. USB Tab
If the device is connected via the USB port, it will be displayed in the list. If it is connected after opening this
tab, press the Refresh button.
#highlightme
Applied firmware package: v1.6.0b19 | LDC software: v2.5.13b5
MMX4x2 series – User's Manual
5.3.4. Further Tools
The Tools menu contains the following options:
Log Viewer: The tool can be used for reviewing log files that have been saved previously.
▪
▪ Create EDID: This tool opens the Easy EDID Creator wizard, which can be used for creating unique
EDIDs in a few simple steps. Functionality is the same as of the Easy EDID Creator.
▪ Demo Mode: This is a virtual MX-FR17 matrix router with full functionality built into the LDC. Functions
and options are the same as of a real MX-FR17 device.
The Terminal window is also available by pressing its button on the bottom.
