98 Lubrication

Packer

Packer components that need to be lubricated include the follower panel rollers, the cylinder rear/
front pins and the central trolley. Use multipurpose grease (see Recommended Lubricants on page 87)
twice a week to lubricate these components.
Caution! Before you proceed with lubrication, make sure all safety measures have been properly
taken.

Cylinder Pins

To lubricate the packer cylinder front pin:
1.
Fully open the tailgate and install the tailgate safety prop (see Figure 2-3).
2.
Extend the cylinder in E
(see Figure 3-24).
3. Proceed with the LOTO procedure. See Locking Out and Tagging Out the Vehicle on page 26.
4. Underneath the center tunnel, locate the grease fitting of the cylinder front pin (see Figure 4-18).
5. Apply lubricant.

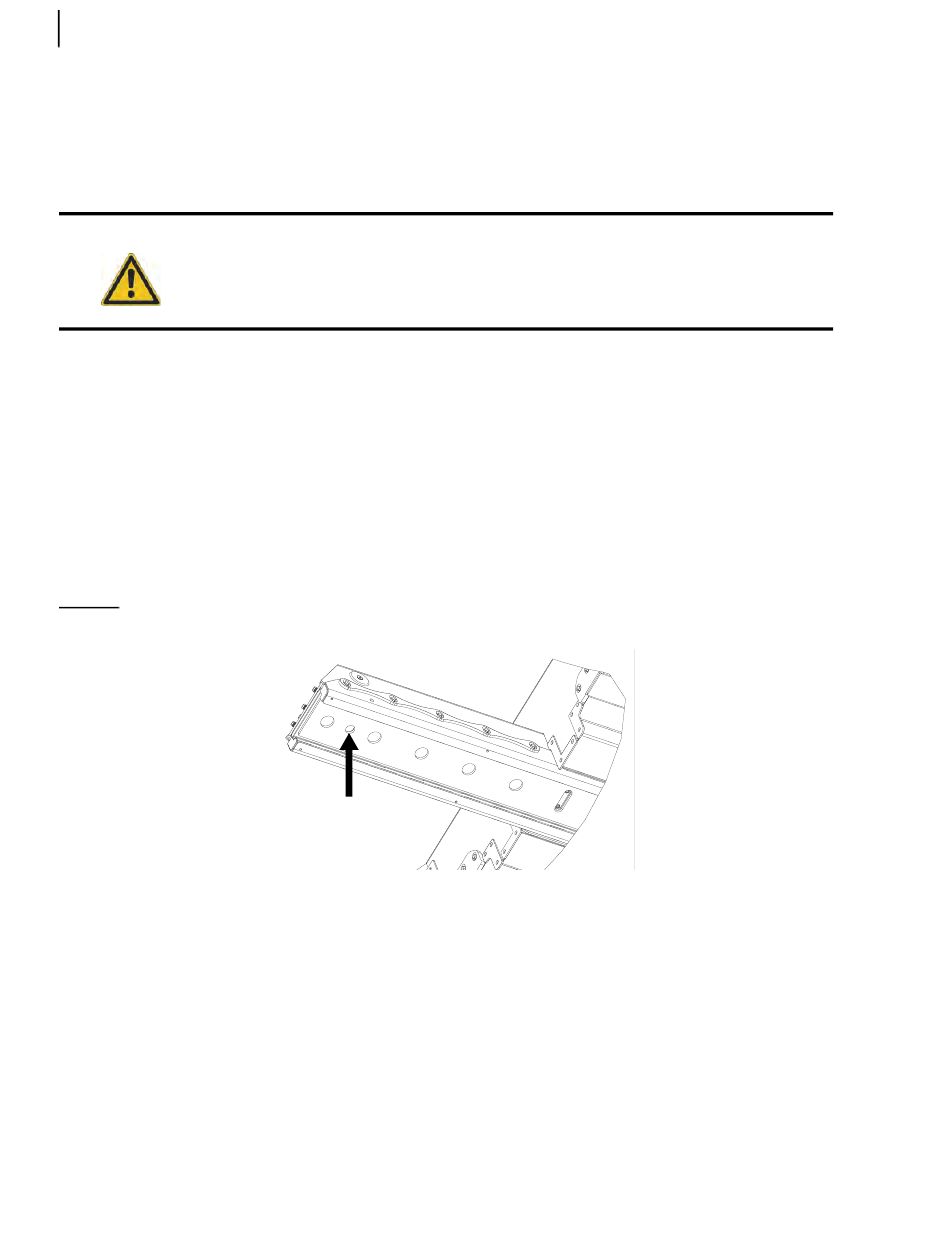

Figure 4-18 Access to front pin grease fitting
To lubricate the packer cylinder rear pin:
1.
Disengage the hydraulic pump and turn OFF the engine.
2.
Proceed with the LOTO procedure. See Locking Out and Tagging Out the Vehicle on page 26.
3.
Remove the access cover from the front beam (see Figure 3-44).
Locate the grease fitting going into the cylinder rear pin (see Figure 4-19).
4. Apply lubricant with a grease gun.
mode to get the center tunnel of the packer out of the body
JECT
