Troubleshooting Harnesses
To simplify electrical troubleshooting on any A
harnesses is available for use. These harnesses enable digital multimeter readings of both voltage and
resistance without poking or damaging wires. Simply connect the compatible harness between two

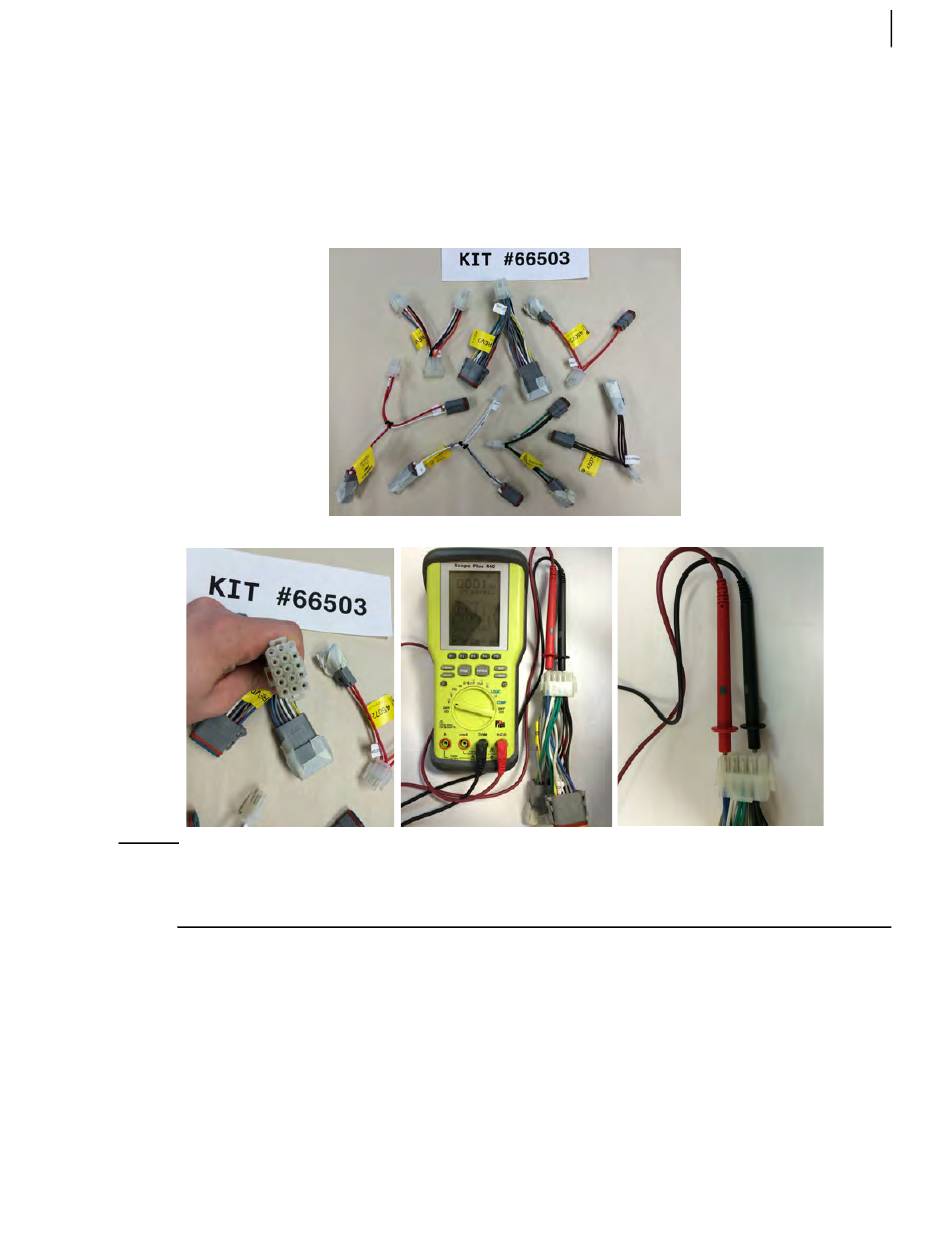

(2) existing connectors and use the additional connector as test points (see pictures below).
N
: Two (2) harnesses in this kit have a reference chart to work with:
OTE
1. harness #151202, which is used to measure the temperature sensor, and
2. harness #151199, which is used to measure the pressure sensor
™ F
E
side loader, a kit of different
UTOMIZER
ULL
JECT
Troubleshooting 195
