6. Set the tailgate safety prop (see Tailgate Safety Prop on page 18).

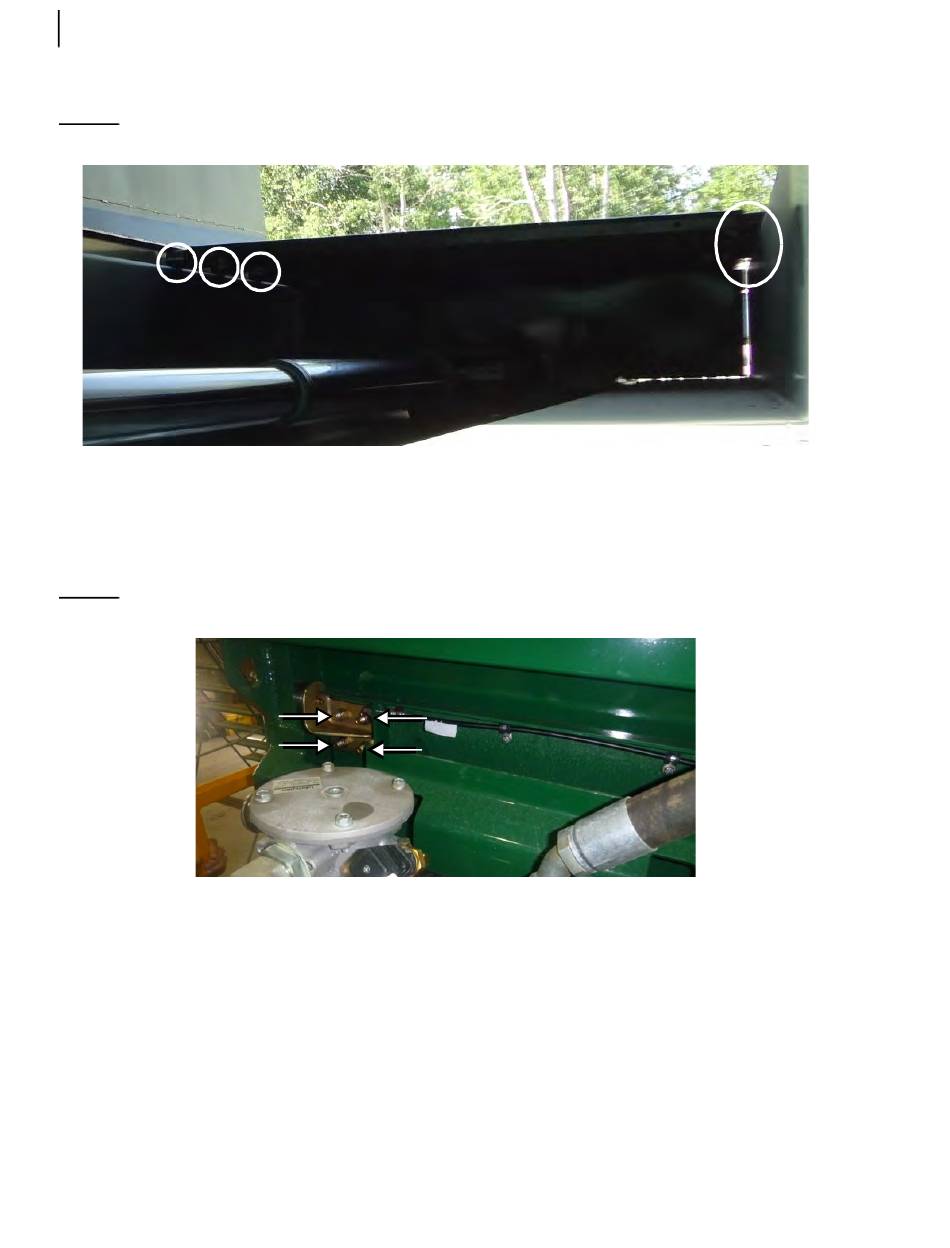

Figure 3-47 Packer rollers assemblies (3 on each side)
7.
Place a 2-by-4 woodblock under the first panel, long enough to hold the panel in place once the
roller is removed.
8. Remove the left-hand side roller assembly of the first panel and replace it:
Using a 5⁄16-inch Allen wrench and a 3⁄4-inch box, remove all 4 bolts that keep the roller in
8 a.
place (see Figure 3-48).
Figure 3-48 Bolts to be removed
Remove the roller assembly and replace it with a new one.
8 b.
Put back all 4 bolts in their respective holes before tightening them up.
8 c.
9. Remove the right-hand side roller of the first panel and replace it by repeating Step 8.
Move the woodblock to the other side under the panel.
10. Place the 2-by-4 woodblock under the second panel, long enough to hold the panel in place once
the roller is removed.
11.
Repeat Steps 8 and 9 to remove both rollers of the second panel.
12.
Place the 2-by-4 woodblock under the third panel, long enough to hold the panel in place once
the roller is removed.
13.
Repeat Steps 8 and 9 to remove both rollers of the third panel.
