Labrie AUTOMIZER FULL EJECT Maintenance Manual page 51

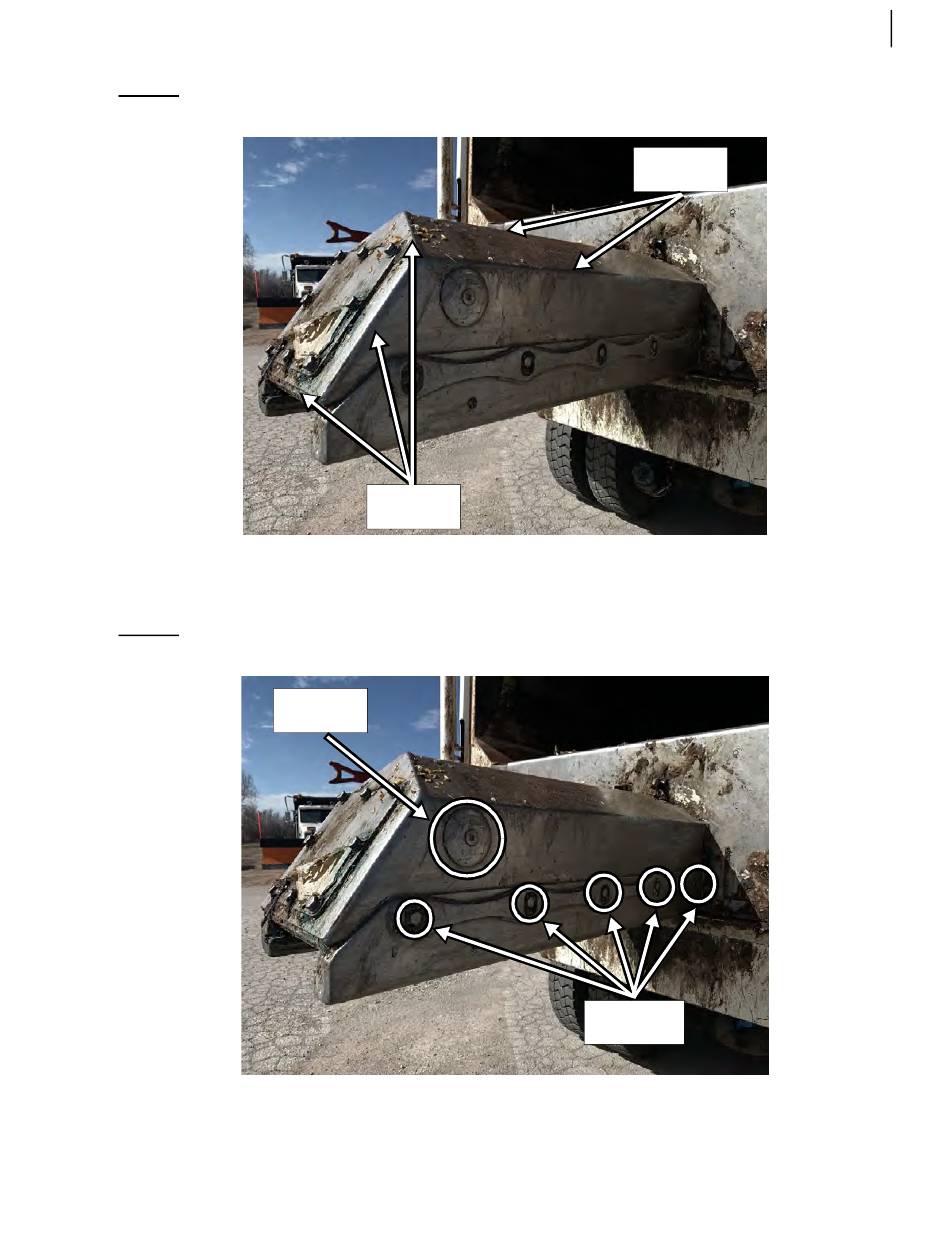

Figure 3-17 Tunnel assembly (1)
c. Check mounting hardware for the central trolley assembly. Replace any loose hardware
and torque to 105 ft-lb.
d. Check cylinder pin retainer and hardware for wear.
Figure 3-18 Tunnel assembly (2)
Cylinder pin
retainer
Tunnel wear plate overlay kits have been created for packer variations #2 and #3. These kits were
created from Hardox™ 450 to extend the life of the packer tunnel by increasing the wear resistance.
Tunnel cap
welds
General Maintenance 43
Tunnel bend
radius
Central trolley
hardware
