Labrie AUTOMIZER FULL EJECT Maintenance Manual page 55

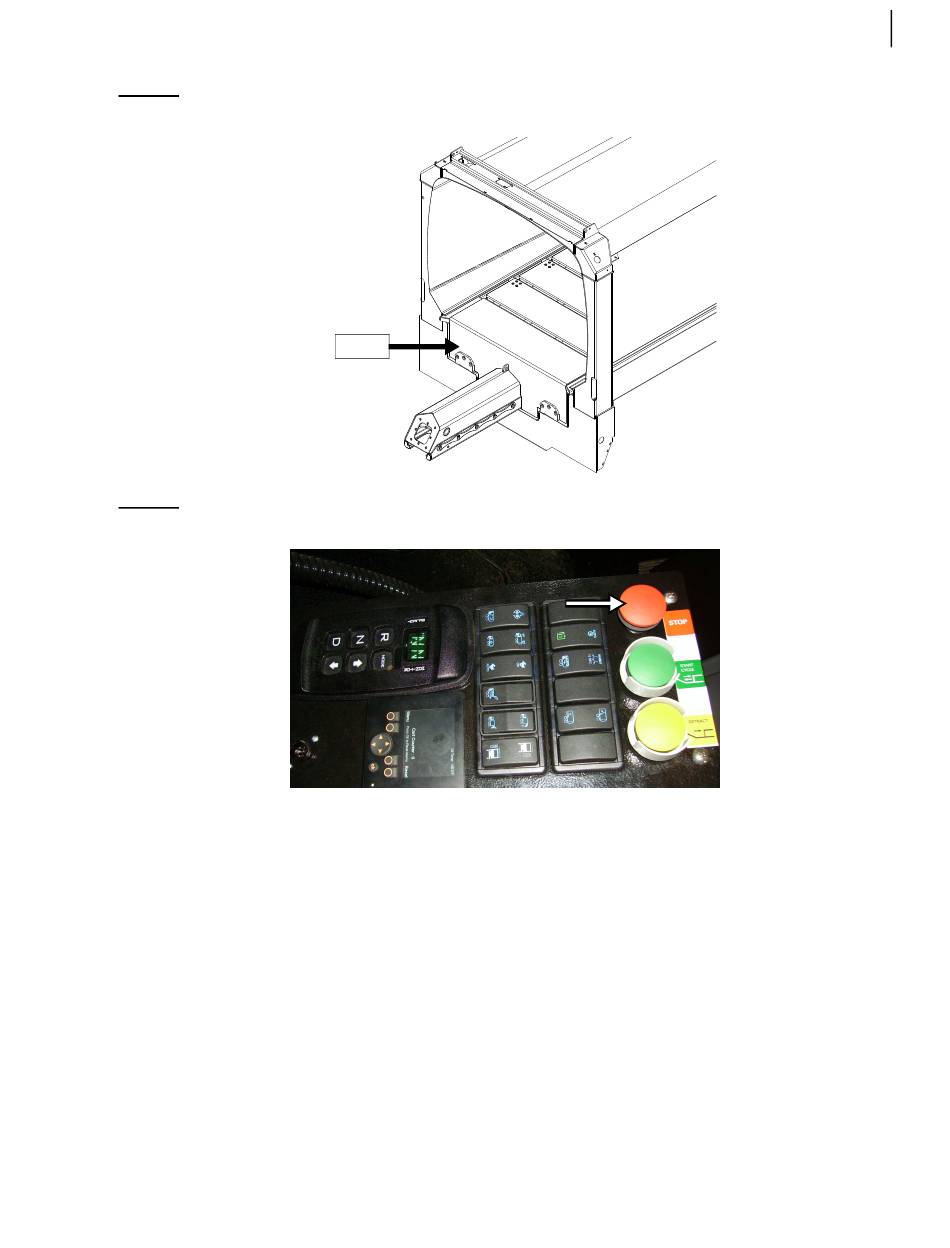

Figure 3-24 Packer in fully extended position
Figure 3-25 Emergency Stop button
5. Proceed with the tagout/lockout procedure. Refer to "Locking Out and Tagging Out the
Vehicle" on page 26.
6.
Enter the body and, under the follower panels, place a piece of wood under the telescopic
cylinder to ensure it does not move once the cylinder pin is removed from the tip of the tunnel
(see Figure 3-26).
7.
Exit the body.
8.
At the rear of the truck remove the tunnel cap (see Figure 3-26) to have access to the front-end of
the telescopic cylinder.
9.
Remove the bolt securing the pin cover to the center tunnel (see Figure 3-26).
