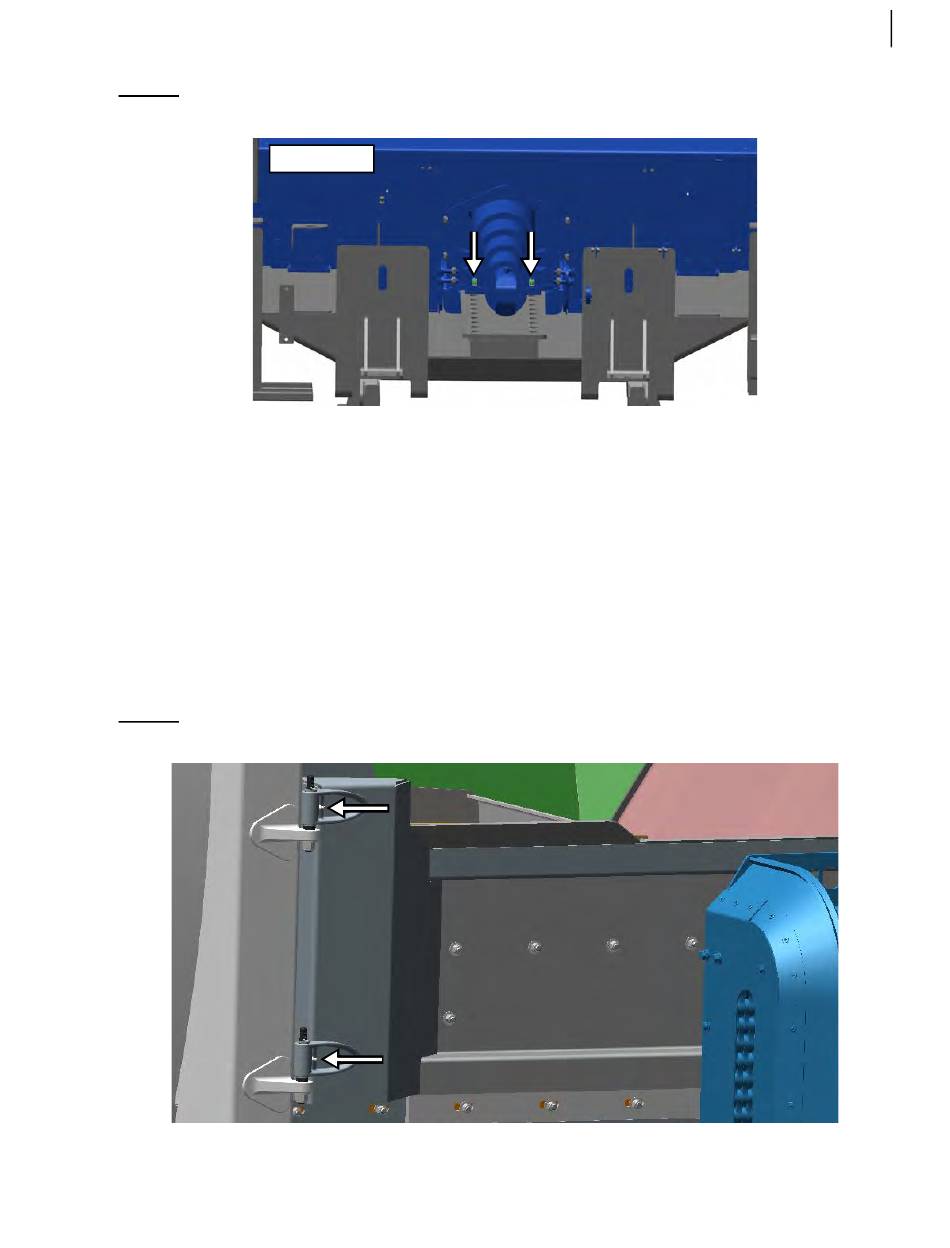

Figure 4-22 T-Track lube fittings
Rear of packer

Hopper Door Hinges

To protect and reduce wear on the hopper door hinges, lubricate them every week with multipurpose
grease (see Recommended Lubricants on page 87).
To lubricate the hopper door hinges:
1.
Disengage the hydraulic pump and turn OFF the engine.
2.
Proceed with the LOTO procedure. See Locking Out and Tagging Out the Vehicle on page 26.
3. Locate the grease fitting on each door hinge (see Figure 4-23).
The A
UTOMIZER
4. Apply lubricant with a grease gun.
Figure 4-23 Grease fittings on hopper door hinges
™ F E hopper door has two (2) hinges.
ULL JECT
Lubrication 101
