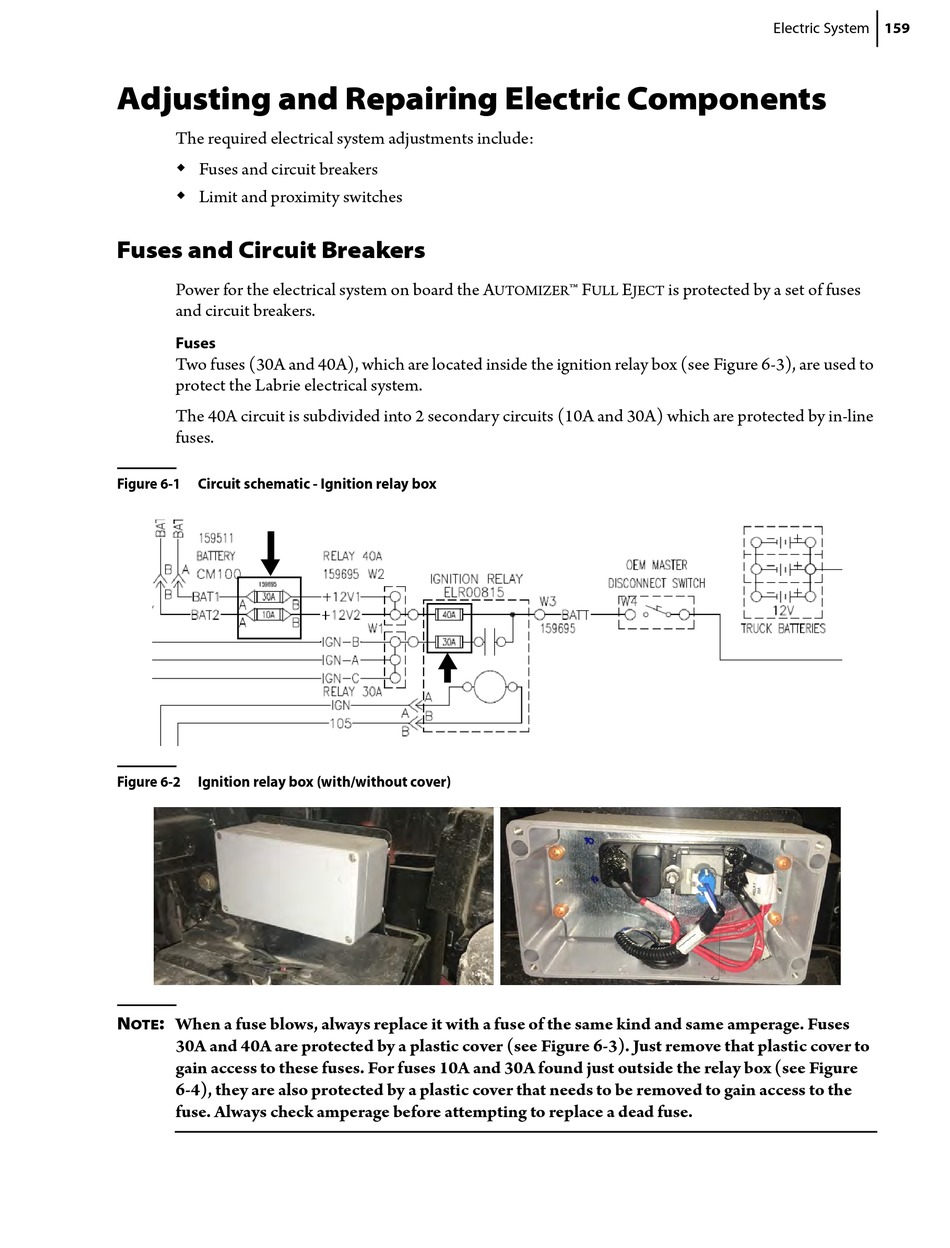

Adjusting And Repairing Electric Components; Fuses And Circuit Breakers - Labrie AUTOMIZER FULL EJECT Maintenance Manual

Adjusting and Repairing Electric Components

The required electrical system adjustments include:
 Fuses and circuit breakers
 Limit and proximity switches

Fuses and Circuit Breakers

Power for the electrical system on board the A
and circuit breakers.
Fuses
Two fuses (30A and 40A), which are located inside the ignition relay box (see Figure 6-3), are used to
protect the Labrie electrical system.
The 40A circuit is subdivided into 2 secondary circuits (10A and 30A) which are protected by in-line
fuses.
Figure 6-1 Circuit schematic - Ignition relay box
Figure 6-2 Ignition relay box (with/without cover)
N : When a fuse blows, always replace it with a fuse of the same kind and same amperage. Fuses
OTE
30A and 40A are protected by a plastic cover (see Figure 6-3). Just remove that plastic cover to
gain access to these fuses. For fuses 10A and 30A found just outside the relay box (see Figure
6-4), they are also protected by a plastic cover that needs to be removed to gain access to the
fuse. Always check amperage before attempting to replace a dead fuse.
™ F E is protected by a set of fuses
UTOMIZER ULL JECT
Electric System 159
