Installing A New/Repaired Packer Telescopic Cylinder - Labrie AUTOMIZER FULL EJECT Maintenance Manual

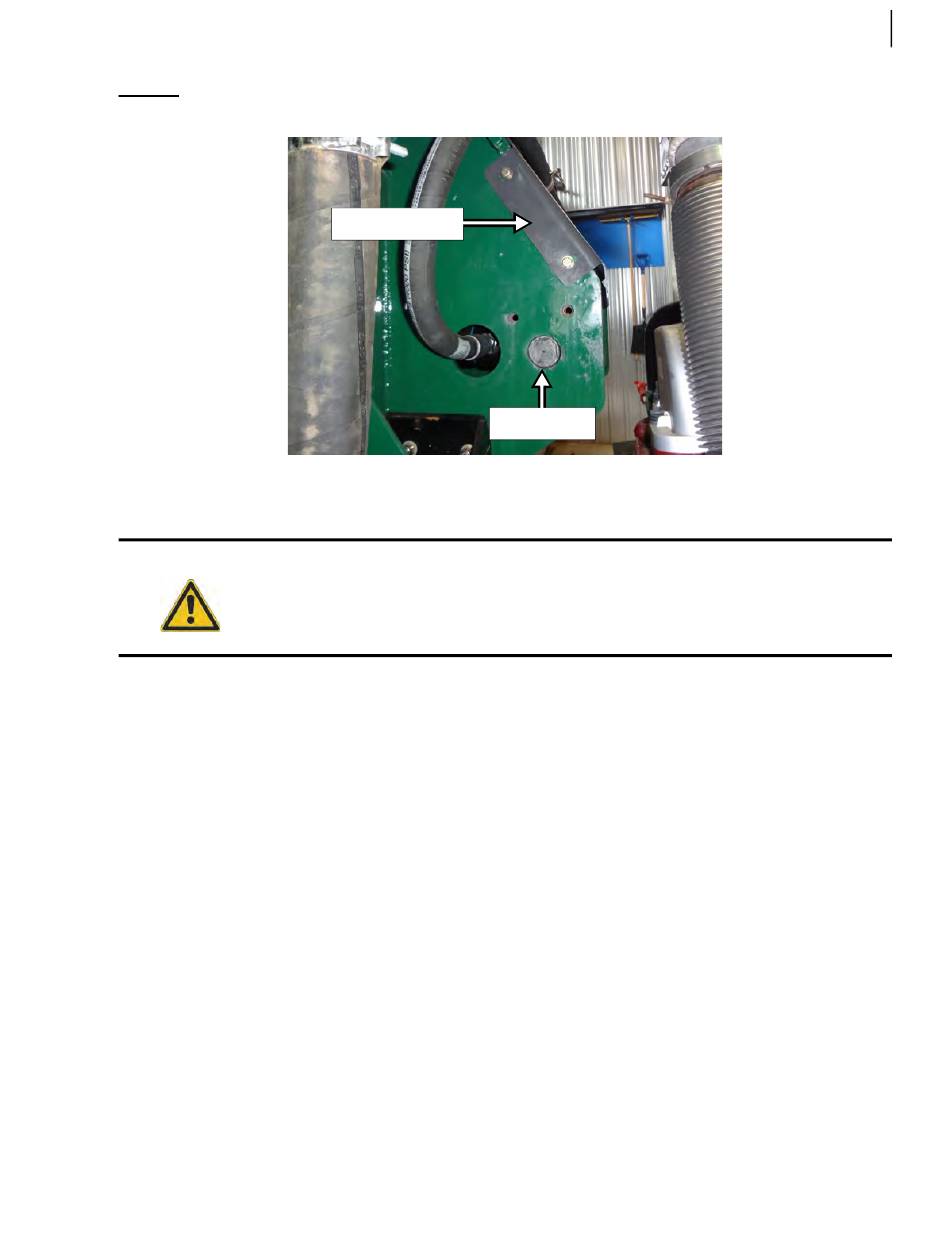

Figure 3-44 Front beam (2)
The telescopic cylinder can now be removed from its position.
25. With an appropriate lifting device lift the cylinder out of the hopper.
Warning!
Use caution when lifting the cylinder out of the body to avoid accidents and injuries.

Installing a New/Repaired Packer Telescopic Cylinder

After having removed a faulty telescopic cylinder out of the body, proceed with the installation of a
new or repaired cylinder.
To install a new/repaired telescopic cylinder apply the following procedure:
1. Make sure the truck is properly locked out and tagged out (see Locking Out and Tagging Out the
Vehicle on page 26).
2.
With an appropriate lifting device carefully lower the cylinder rear-end first into the body
through the hopper.
3. Move the cylinder towards the front of the body.
Be sure to position the rear end of the cylinder towards the front end of the body.
The rear end of the cylinder must be installed inside the front beam. Use a piece of wood to
support the weight of the cylinder and to facilitate the installation.
Access cover
Cylinder pin
General Maintenance 61
