Labrie AUTOMIZER FULL EJECT Maintenance Manual page 218

210 Multiplexing

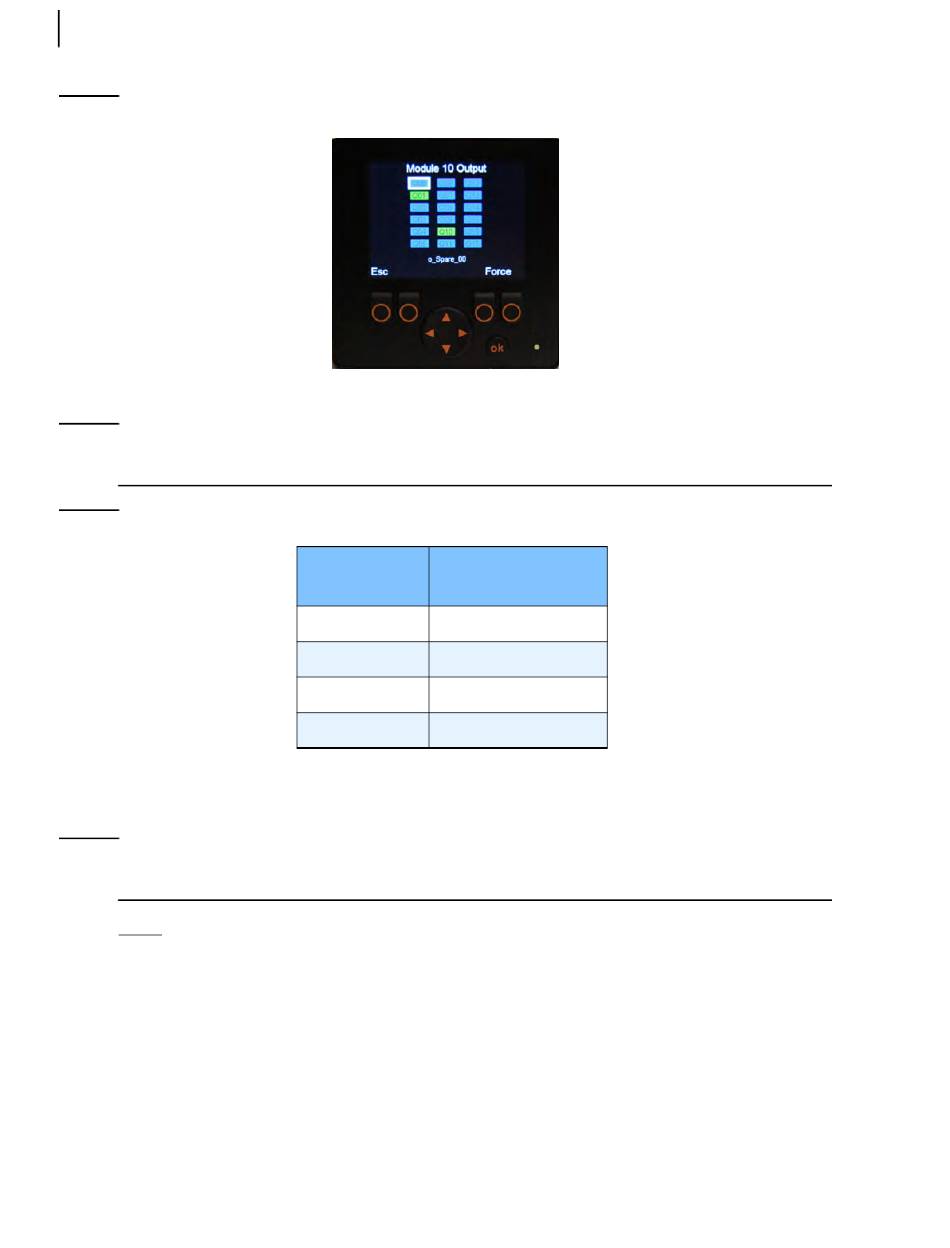

Figure 9-10 Output Status page
The rectangles on this page are used to check the status of different outputs.
: Each rectangle is numbered and relates to a specific function of the truck. However, for a given
N
OTE
number, the related function may vary from truck to truck.
Table 4 Colored rectangles
Press "Esc" to return to the preceding page.
Press the "Force" button to display the Force page.
N : To go back to the Main Page or Main Menu, press "Esc" as needed until the desired page is
OTE
displayed.
Force
The Force page is accessible from the Output Status page. Just press the corresponding button to
access the Force page.
But before the Force page is displayed, a warning message appears on the monitor screen (see Figure
9-11).
Rectangles
Function Status
(outputs)
Blue Inactive
Green Active
Red Closed short-circuit
Yellow Open circuit
