9. Disconnect the drive shaft by removing the 4 bolts that secure the shaft to the PTO.
Some mechanics may rather want to disconnect the drive shaft from the pump.
The choice is up to the mechanics and is based on the type of chassis the vehicle is built on.
10.
Attach the pump to a lifting device and remove both 5/8" bolts that hold the pump to the pump
support.
11. Remove the pump.
If need be, disconnect the drive shaft from the pump and save it for the replacement pump.
12. Install the new pump.
Before attempting to install the new pump, it is very important to check the port configuration on
that pump; the ports on the replacement pump must be positioned the same way as on the old
pump. If they are not, proceed with the indexing of the new pump.
The replacement pump must be oriented in such a way to facilitate reconnection to the hydraulic
system and attachment to the chassis frame.
Go to page 115 to know how to index the new pump; procedure begins with Step 13 a.
13.
Reinstall the drive shaft if it has been removed from the engine.
Before proceeding with the installation of the drive shaft apply the following procedure:
On the drive shaft mark the location where a hole must be drilled.
13 a.
Use the yoke as a jig to determine where exactly the hole must be drilled then remove it.
: The yoke must be fully engaged on the shaft before determining the exact location where the
N
OTE
hole must be drilled.
Drill a hole with a 5/16" diameter on the drive shaft.
13 b.

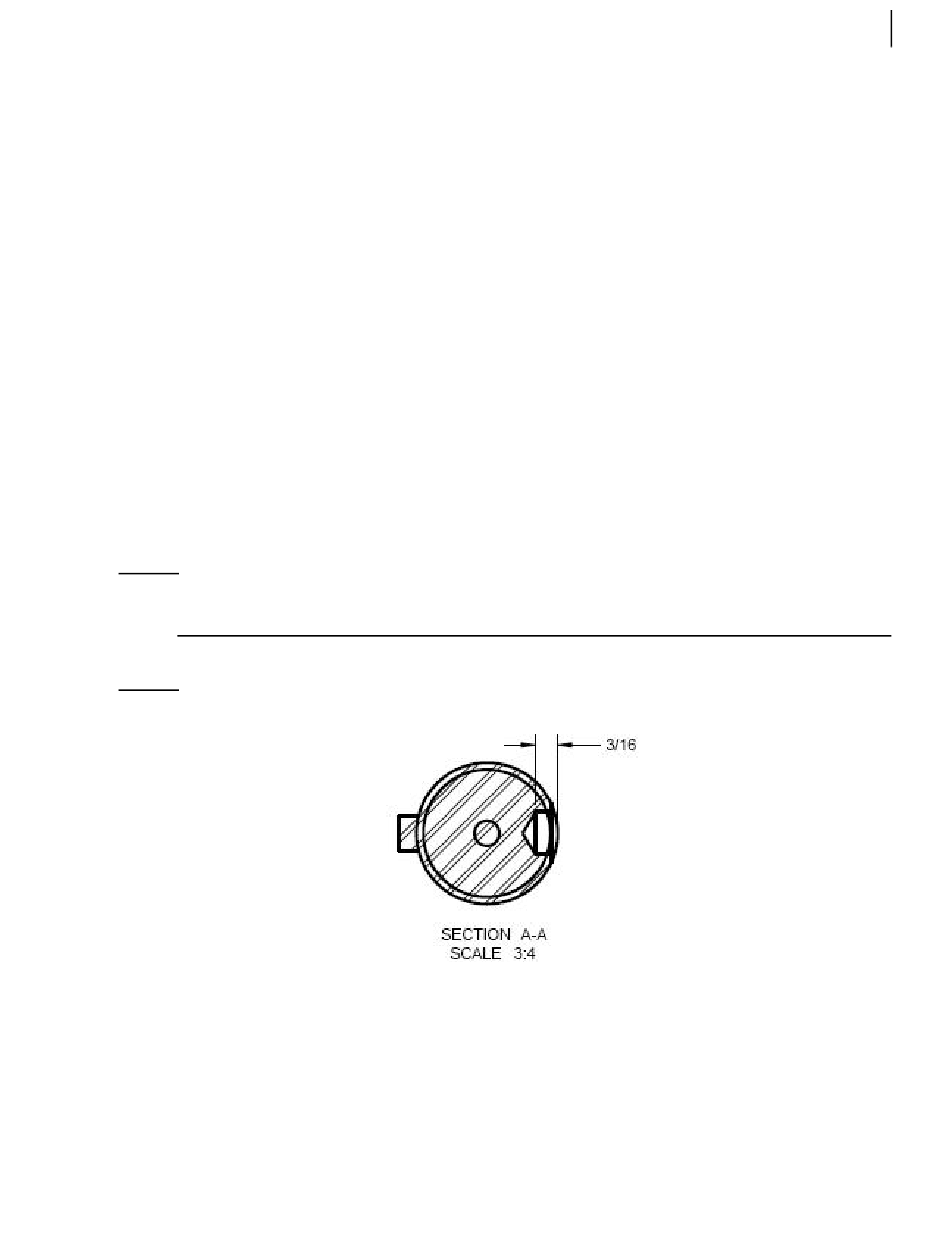

Figure 5-13 Depth of hole to be drilled
Reinstall the drive shaft.
13 c.
Place the yoke on the shaft as illustrated on page 125.
13 d.
The yoke must be fully engaged on the shaft with both holes aligned (one hole over the
other).
Apply Loctite 243 (medium strength) to bolt threads and insert the bolt firmly into the
13 e.
holes to properly secure the yoke to the shaft.
Hydraulic System 121
