Damping output 1-2 Set the reaction time of the
current output signal to
fluctuations in the measured
value caused by process
conditions.
Measuring mode output 1-2 Select the measuring mode
for current output.
10.4.6

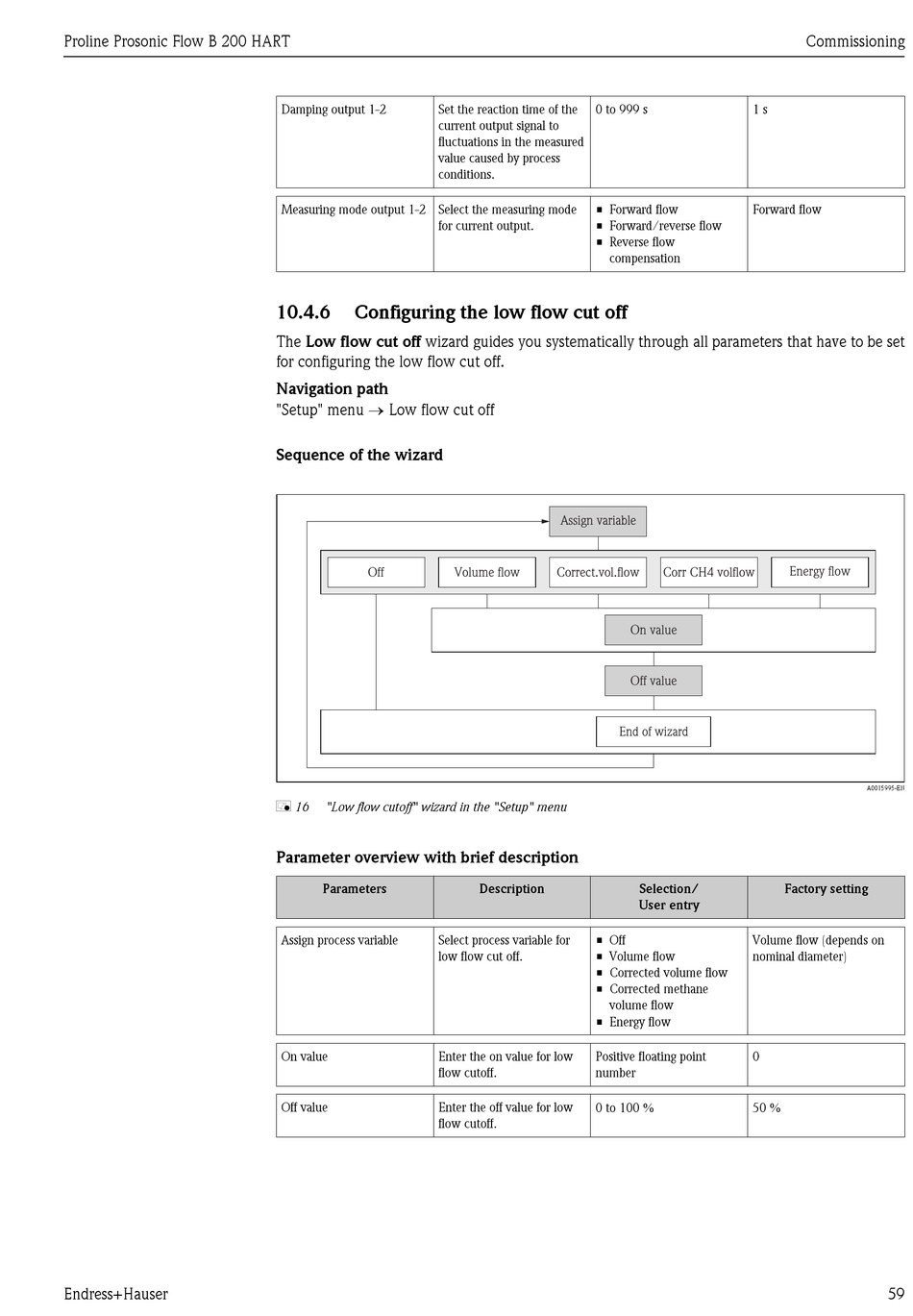

Configuring the low flow cut off

The Low flow cut off wizard guides you systematically through all parameters that have to be set
for configuring the low flow cut off.
Navigation path
"Setup" menu ® Low flow cut off
Sequence of the wizard
Off
å 16 "Low flow cutoff" wizard in the "Setup" menu
Parameter overview with brief description
Parameters
Assign process variable Select process variable for
low flow cut off.
On value Enter the on value for low
flow cutoff.
Off value Enter the off value for low
flow cutoff.
0 to 999 s
• Forward flow
• Forward/reverse flow
• Reverse flow
compensation
Assign variable
Volume flow Correct.vol.flow
End of wizard
Description
• Off
• Volume flow
• Corrected volume flow
• Corrected methane
volume flow
• Energy flow
Positive floating point
number
0 to 100 %
1 s
Forward flow
Energy flow
Corr CH4 volflow
On value
Off value
Selection/ Factory setting
User entry
Volume flow (depends on
nominal diameter)
0
50 %
Commissioning
