Proline Prosonic Flow B 200 HART
Endress+Hauser
4.2.2

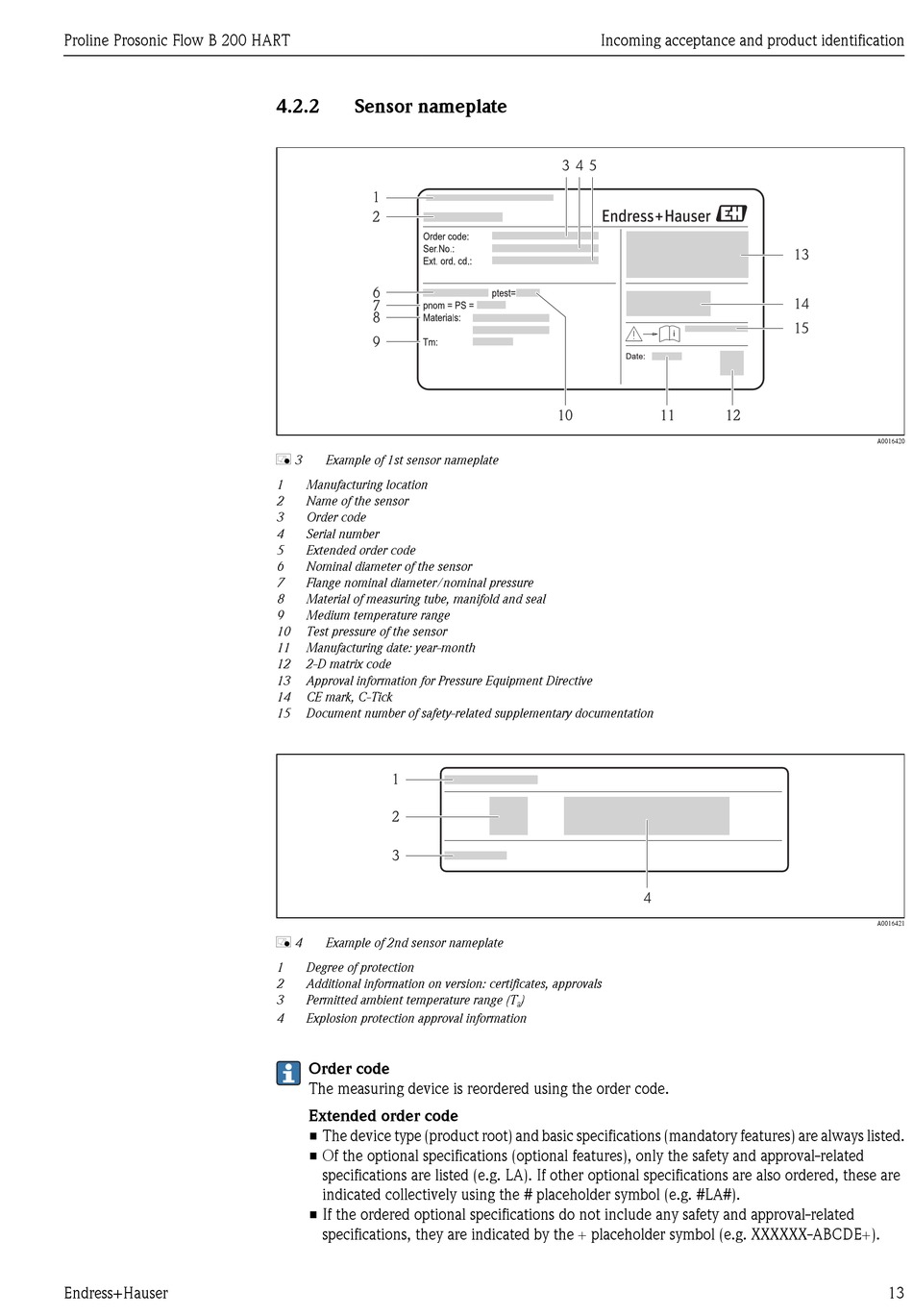

Sensor nameplate

å 3 Example of 1st sensor nameplate
1 Manufacturing location
2 Name of the sensor
3 Order code
4 Serial number
5 Extended order code
6 Nominal diameter of the sensor
7 Flange nominal diameter/nominal pressure
8 Material of measuring tube, manifold and seal
9 Medium temperature range
10 Test pressure of the sensor
11 Manufacturing date: year-month
12 2-D matrix code
13 Approval information for Pressure Equipment Directive
14 CE mark, C-Tick
15 Document number of safety-related supplementary documentation
å 4 Example of 2nd sensor nameplate
1 Degree of protection
2 Additional information on version: certificates, approvals
3 Permitted ambient temperature range (T
4 Explosion protection approval information
Order code
The measuring device is reordered using the order code.
Extended order code
• The device type (product root) and basic specifications (mandatory features) are always listed.
• Of the optional specifications (optional features), only the safety and approval-related
specifications are listed (e.g. LA). If other optional specifications are also ordered, these are
indicated collectively using the # placeholder symbol (e.g. #LA#).
• If the ordered optional specifications do not include any safety and approval-related
specifications, they are indicated by the + placeholder symbol (e.g. XXXXXX-ABCDE+).
Incoming acceptance and product identification
)
