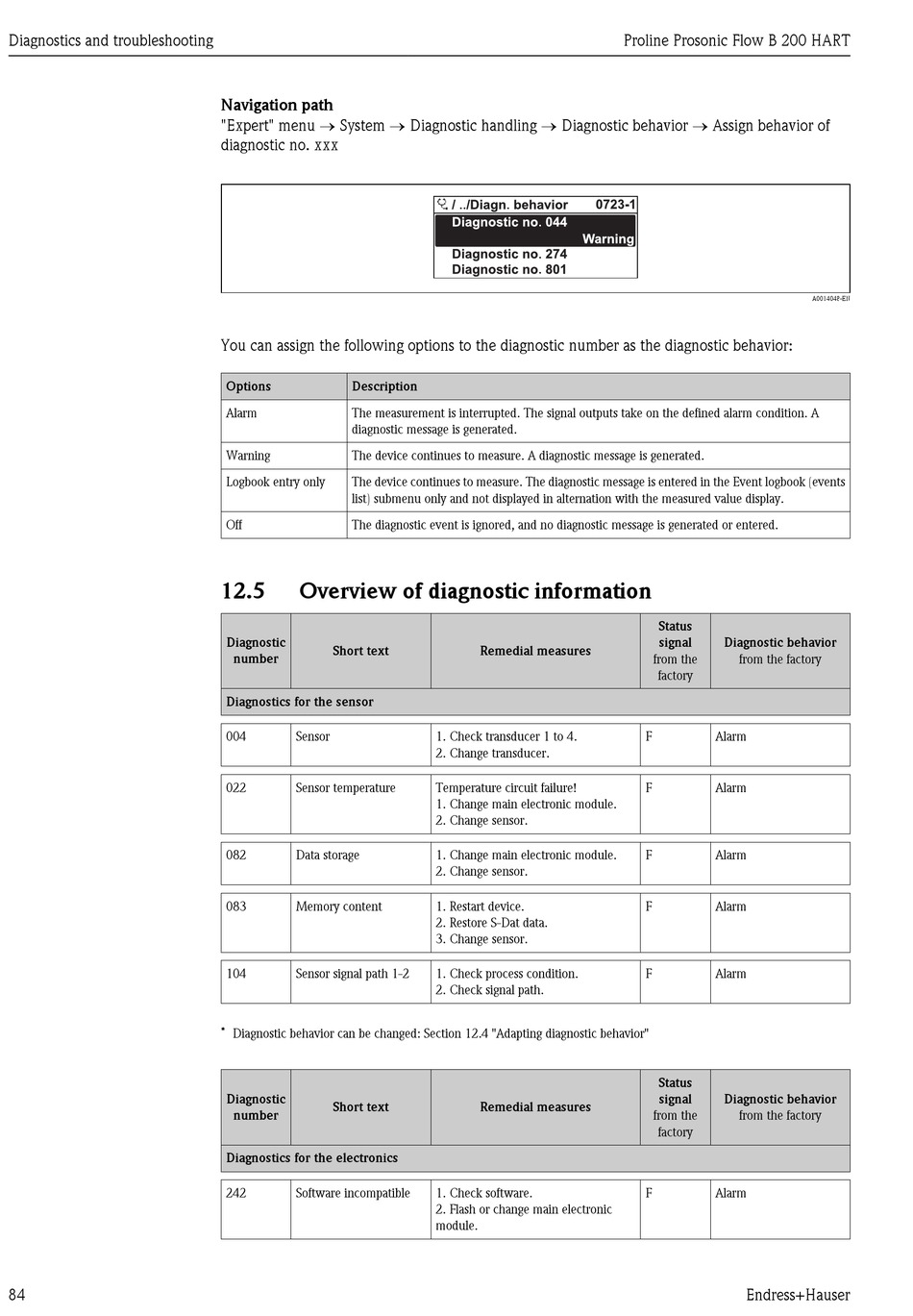

Diagnostics and troubleshooting
84
Navigation path
"Expert" menu ® System ® Diagnostic handling ® Diagnostic behavior ® Assign behavior of
diagnostic no. xxx
You can assign the following options to the diagnostic number as the diagnostic behavior:
Options Description
Alarm The measurement is interrupted. The signal outputs take on the defined alarm condition. A
diagnostic message is generated.
Warning The device continues to measure. A diagnostic message is generated.
Logbook entry only The device continues to measure. The diagnostic message is entered in the Event logbook (events
list) submenu only and not displayed in alternation with the measured value display.
Off The diagnostic event is ignored, and no diagnostic message is generated or entered.
12.5

Overview of diagnostic information

Diagnostic
Short text
number
Diagnostics for the sensor
004 Sensor
022 Sensor temperature
082 Data storage
083 Memory content
104 Sensor signal path 1-2
* Diagnostic behavior can be changed: Section 12.4 "Adapting diagnostic behavior"
Diagnostic
Short text
number
Diagnostics for the electronics
242 Software incompatible
Remedial measures
1. Check transducer 1 to 4.
2. Change transducer.
Temperature circuit failure!
1. Change main electronic module.
2. Change sensor.
1. Change main electronic module.
2. Change sensor.
1. Restart device.
2. Restore S-Dat data.
3. Change sensor.
1. Check process condition.
2. Check signal path.
Remedial measures
1. Check software.
2. Flash or change main electronic
module.
Proline Prosonic Flow B 200 HART
Status
signal Diagnostic behavior
from the from the factory
factory
F Alarm
F Alarm
F Alarm
F Alarm
F Alarm
Status
signal Diagnostic behavior
from the from the factory
factory
F Alarm
Endress+Hauser
A0014048-EN
