Electrical connection
22
R [ ] W
b
600
500
400
300
200
100
0
14 16

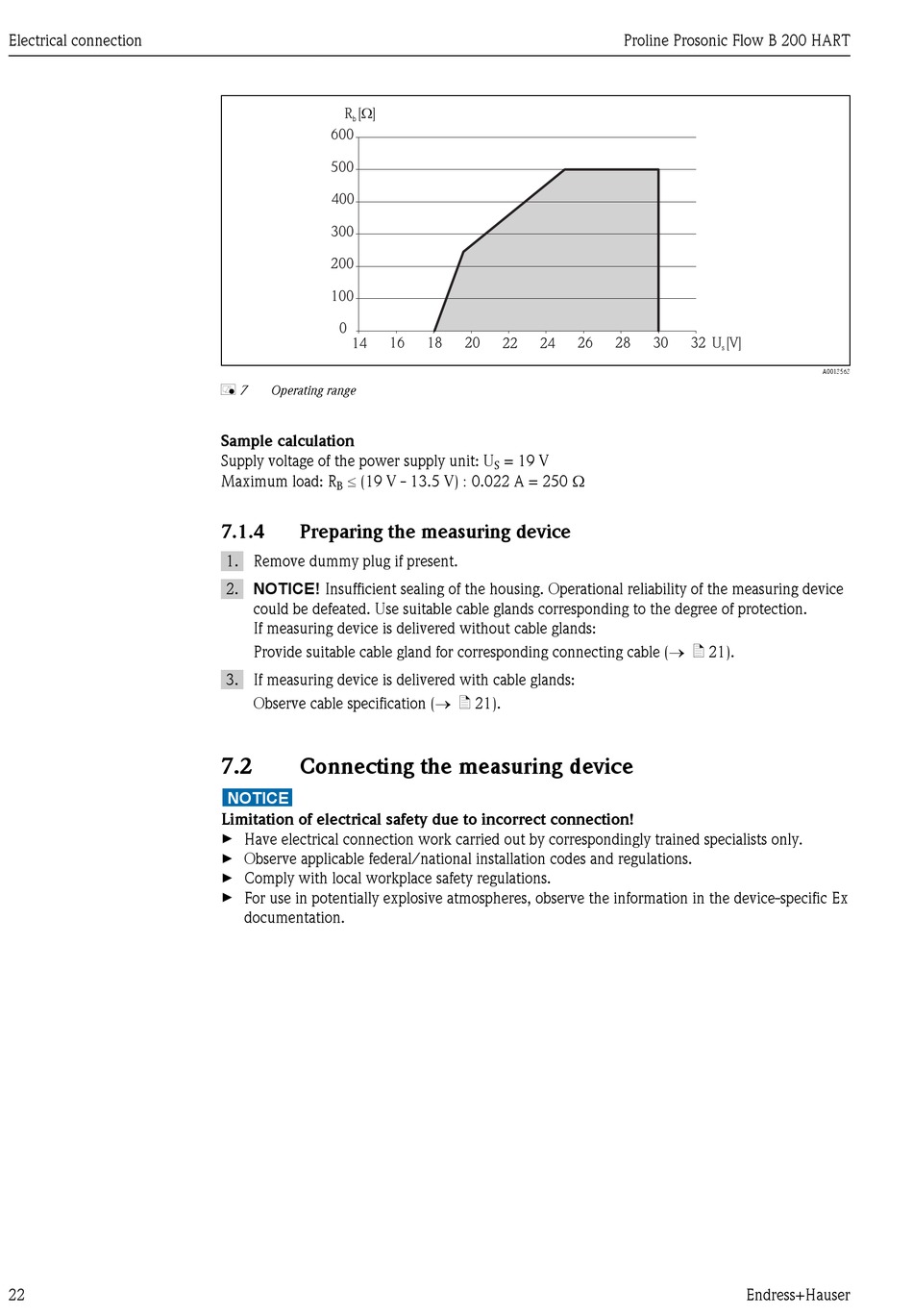

å 7 Operating range
Sample calculation
Supply voltage of the power supply unit: U
£ (19 V - 13.5 V) : 0.022 A = 250 W
Maximum load: R
B
7.1.4

Preparing the measuring device

1. Remove dummy plug if present.
2. NOTICE! Insufficient sealing of the housing. Operational reliability of the measuring device
could be defeated. Use suitable cable glands corresponding to the degree of protection.
If measuring device is delivered without cable glands:
Provide suitable cable gland for corresponding connecting cable (® ä 21).
3. If measuring device is delivered with cable glands:
Observe cable specification (® ä 21).
7.2

Connecting the measuring device

NOTICE
Limitation of electrical safety due to incorrect connection!
Have electrical connection work carried out by correspondingly trained specialists only.
►
Observe applicable federal/national installation codes and regulations.
►
Comply with local workplace safety regulations.
►
For use in potentially explosive atmospheres, observe the information in the device-specific Ex
►
documentation.
18 20 22 24 26
= 19 V
S
Proline Prosonic Flow B 200 HART
28 30 32 U [V]
s
Endress+Hauser
A0013563
