Proline Prosonic Flow B 200 HART
Endress+Hauser
8.3

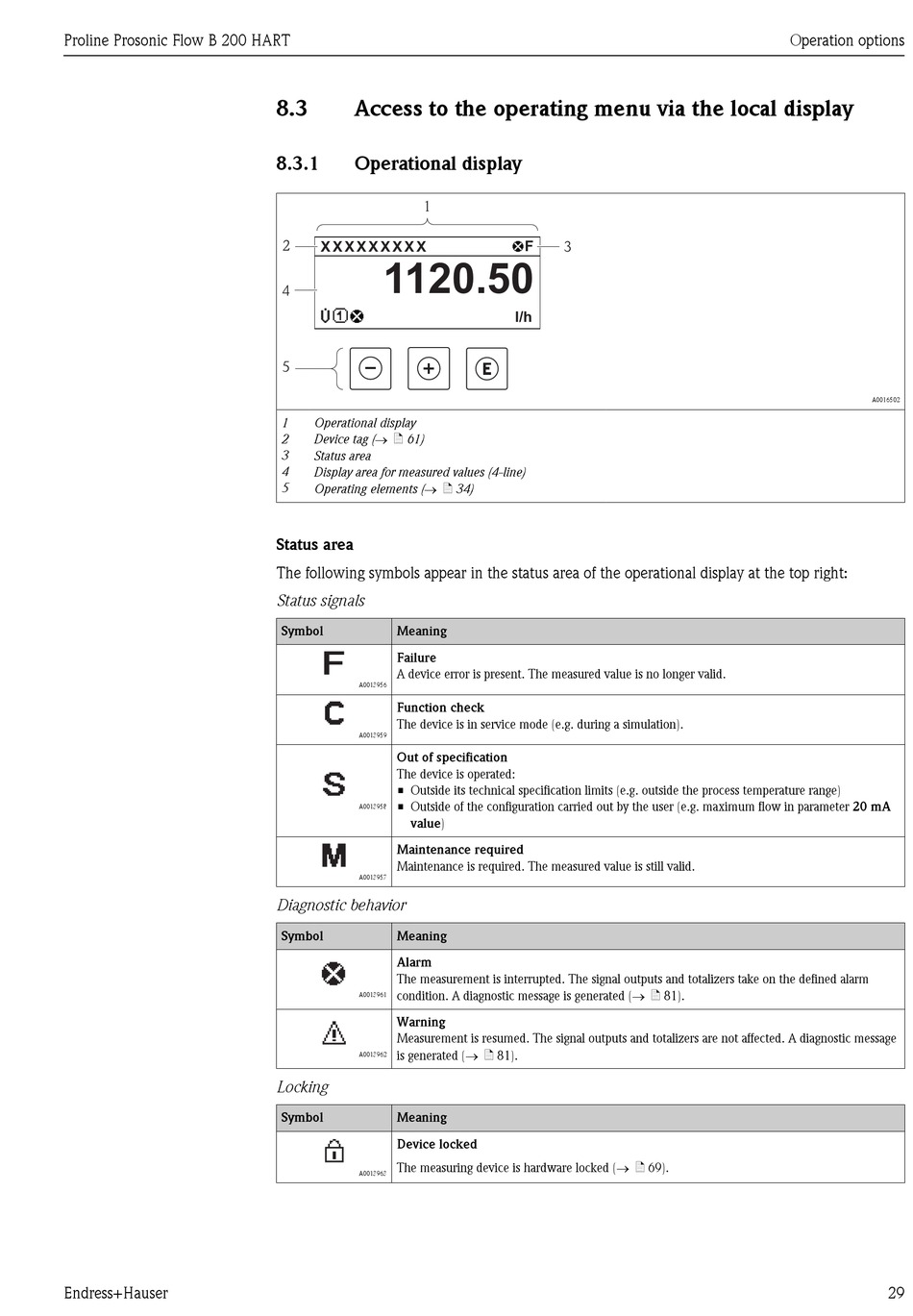

Access to the operating menu via the local display

8.3.1

Operational display

1
2
X X X X X X X X X
1120.50
4
5
1 Operational display
2 Device tag (® ä 61)
3 Status area
4 Display area for measured values (4-line)
5
Operating elements (® ä 34)
Status area
The following symbols appear in the status area of the operational display at the top right:
Status signals
Symbol Meaning
Failure
A device error is present. The measured value is no longer valid.
A0013956
Function check
The device is in service mode (e.g. during a simulation).
A0013959
Out of specification
The device is operated:
• Outside its technical specification limits (e.g. outside the process temperature range)
• Outside of the configuration carried out by the user (e.g. maximum flow in parameter 20 mA
A0013958
value)
Maintenance required
Maintenance is required. The measured value is still valid.
A0013957
Diagnostic behavior
Symbol Meaning
Alarm
The measurement is interrupted. The signal outputs and totalizers take on the defined alarm
condition. A diagnostic message is generated (® ä 81).
A0013961
Warning
Measurement is resumed. The signal outputs and totalizers are not affected. A diagnostic message
is generated (® ä 81).
A0013962
Locking
Symbol Meaning
Device locked
The measuring device is hardware locked (® ä 69).
A0013963
F
3
l/h
Operation options
A0016502
29
