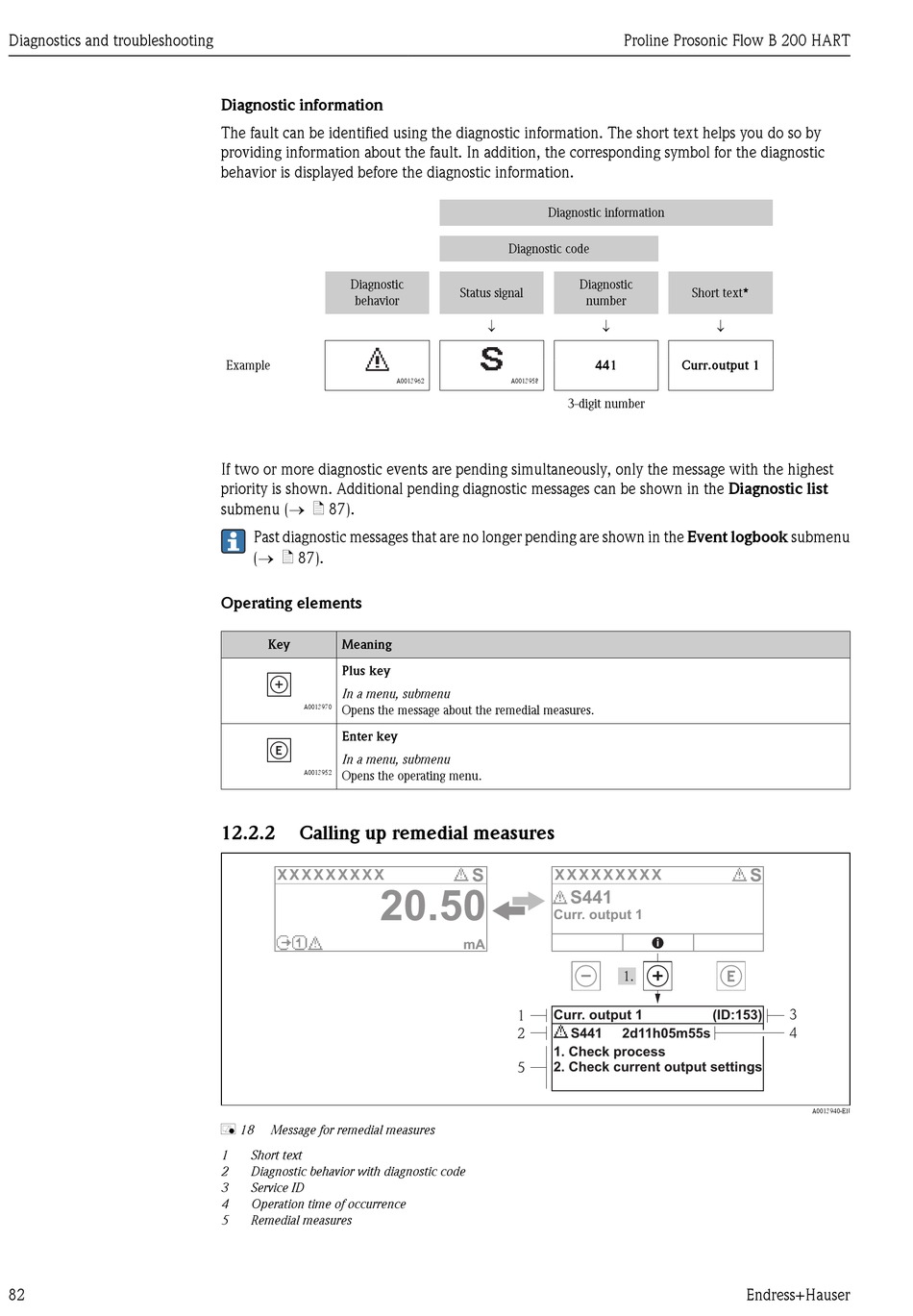

Calling Up Remedial Measures - Endress+Hauser HART Proline Prosonic Flow B 200 Operating Instructions Manual

Diagnostics and troubleshooting
82
Diagnostic information
The fault can be identified using the diagnostic information. The short text helps you do so by
providing information about the fault. In addition, the corresponding symbol for the diagnostic
behavior is displayed before the diagnostic information.
Diagnostic
behavior
Example
If two or more diagnostic events are pending simultaneously, only the message with the highest
priority is shown. Additional pending diagnostic messages can be shown in the Diagnostic list
submenu (® ä 87).
Past diagnostic messages that are no longer pending are shown in the Event logbook submenu
(® ä 87).
Operating elements
Key Meaning
Plus key
In a menu, submenu
Opens the message about the remedial measures.
A0013970
Enter key
In a menu, submenu
Opens the operating menu.
A0013952
12.2.2

Calling up remedial measures

X X X X X X X X X
20.50
å 18 Message for remedial measures
1 Short text
2 Diagnostic behavior with diagnostic code
3 Service ID
4 Operation time of occurrence
5 Remedial measures
Diagnostic information
Diagnostic code
Status signal
¯
A0013962 A0013958
3-digit number
S
X X X X X X X
Curr. output 1
mA
Curr. output 1
1
2
1. Check process
2. Check current output settings
5
Proline Prosonic Flow B 200 HART
Diagnostic
Short text*
number
¯ ¯
441 Curr.output 1
X X
S441
i
(ID:153)
S441 2d11h05m55s
S
3
4
A0013940-EN
