Proline Prosonic Flow B 200 HART
Endress+Hauser
9

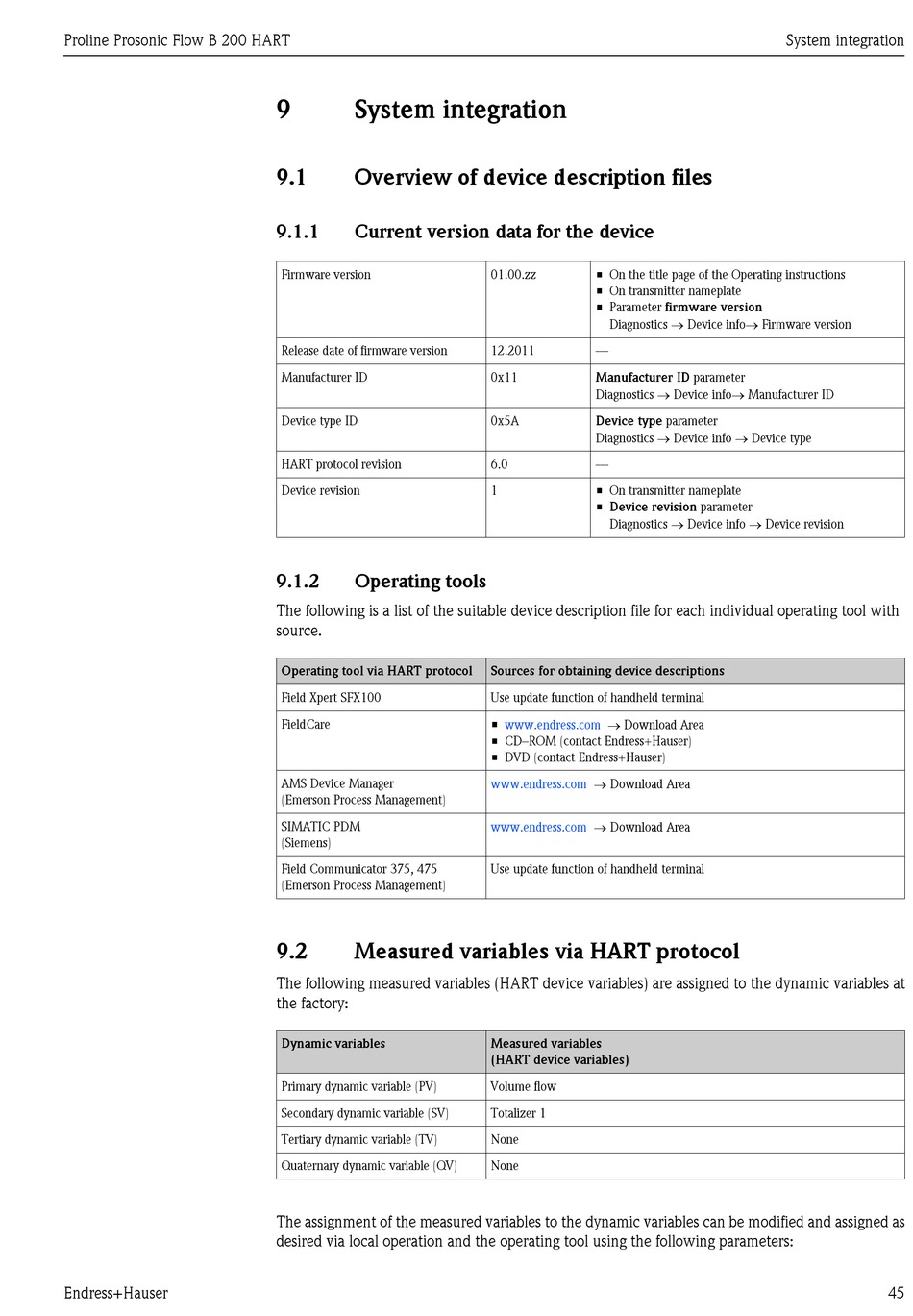

System integration

9.1

Overview of device description files

9.1.1

Current version data for the device

Firmware version
Release date of firmware version
Manufacturer ID
Device type ID
HART protocol revision
Device revision
9.1.2

Operating tools

The following is a list of the suitable device description file for each individual operating tool with
source.
Operating tool via HART protocol
Field Xpert SFX100
FieldCare
AMS Device Manager
(Emerson Process Management)
SIMATIC PDM
(Siemens)
Field Communicator 375, 475
(Emerson Process Management)
9.2

Measured variables via HART protocol

The following measured variables (HART device variables) are assigned to the dynamic variables at
the factory:
Dynamic variables
Primary dynamic variable (PV)
Secondary dynamic variable (SV)
Tertiary dynamic variable (TV)
Quaternary dynamic variable (QV)
The assignment of the measured variables to the dynamic variables can be modified and assigned as
desired via local operation and the operating tool using the following parameters:
01.00.zz • On the title page of the Operating instructions
• On transmitter nameplate
• Parameter firmware version
Diagnostics ® Device info® Firmware version
12.2011 ---
0x11 Manufacturer ID parameter
Diagnostics ® Device info® Manufacturer ID
0x5A Device type parameter
Diagnostics ® Device info ® Device type
6.0 ---
1 • On transmitter nameplate
• Device revision parameter
Diagnostics ® Device info ® Device revision
Sources for obtaining device descriptions
Use update function of handheld terminal
• ® Download Area
www.endress.com
• CD–ROM (contact Endress+Hauser)
• DVD (contact Endress+Hauser)
® Download Area
www.endress.com
® Download Area
www.endress.com
Use update function of handheld terminal
Measured variables
(HART device variables)
Volume flow
Totalizer 1
None
None
System integration
45
