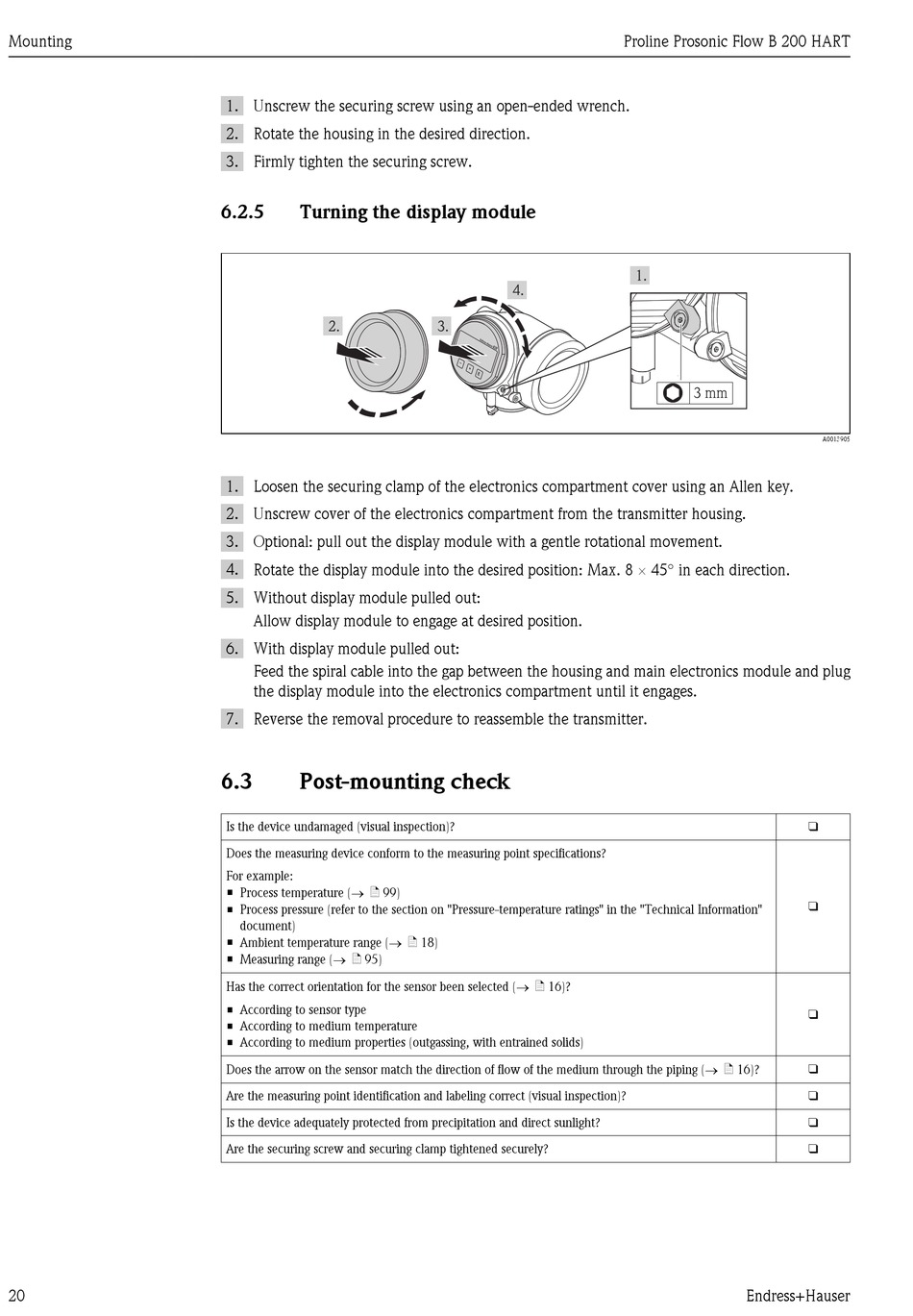

Mounting
20
1. Unscrew the securing screw using an open-ended wrench.
2. Rotate the housing in the desired direction.
3. Firmly tighten the securing screw.
6.2.5
Turning the display module
1. Loosen the securing clamp of the electronics compartment cover using an Allen key.
2. Unscrew cover of the electronics compartment from the transmitter housing.
3. Optional: pull out the display module with a gentle rotational movement.
4. Rotate the display module into the desired position: Max. 8 ´ 45° in each direction.
5. Without display module pulled out:
Allow display module to engage at desired position.
6. With display module pulled out:
Feed the spiral cable into the gap between the housing and main electronics module and plug
the display module into the electronics compartment until it engages.
7. Reverse the removal procedure to reassemble the transmitter.
6.3
Post-mounting check
Is the device undamaged (visual inspection)?
Does the measuring device conform to the measuring point specifications?
For example:
• Process temperature (® ä 99)
• Process pressure (refer to the section on "Pressure-temperature ratings" in the "Technical Information"
document)
• Ambient temperature range (® ä 18)
• Measuring range (® ä 95)
Has the correct orientation for the sensor been selected (® ä 16)?
• According to sensor type
• According to medium temperature
• According to medium properties (outgassing, with entrained solids)
Does the arrow on the sensor match the direction of flow of the medium through the piping (® ä 16)?
Are the measuring point identification and labeling correct (visual inspection)?
Is the device adequately protected from precipitation and direct sunlight?
Are the securing screw and securing clamp tightened securely?
Proline Prosonic Flow B 200 HART
1
3 mm
Endress+Hauser
A0013905
