After the Pitot tube is positioned in the flow channel, the display shows the
speed (m/s) and the flow rate (Nm3/h). If the value indicated is stable, press
<Save> to store the value in the intermediate memory. If a printout of the
values should occur simultaneously to the recording in the intermediate
memory, press <F2> (the complete content of the intermediate memory will
be printed out).

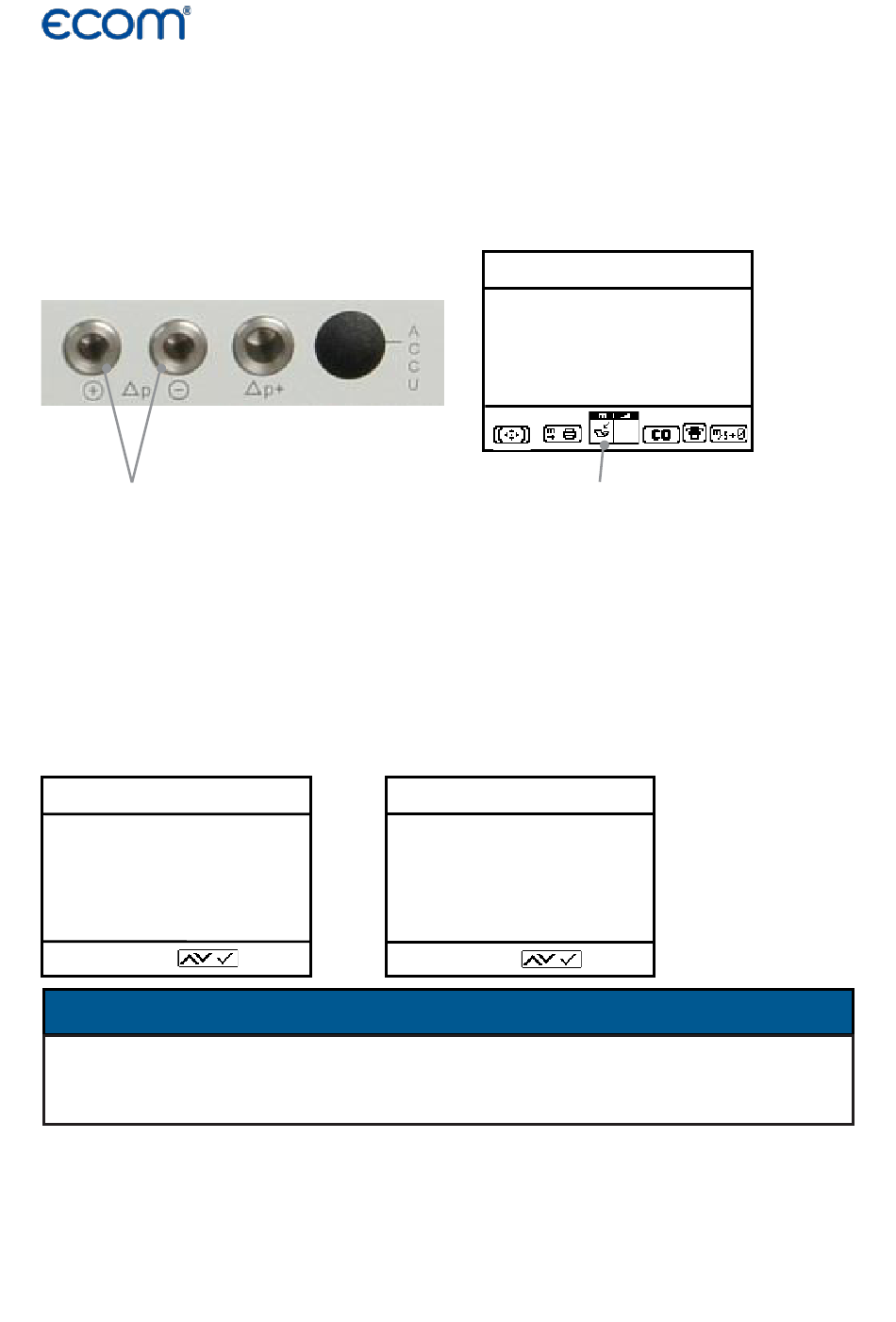

Connections for Pitot tube
4.6 Soot...Oil trace
The sub-menu "Soot...Oil trace" enables the input of measured results for
boiler temperature, soot dots and oil trace. Select the desired line on the
display and activate the input with <Enter>. The input for boiler temperature
can be made one with help of the instrument keyboard. Press <Enter> to
store the value in the data record of the measurement.
Soot..Oil trace
Boiler temp.:
1st Soot meas.:
2nd Soot meas.:
3rd Soot meas.:
Oil trace :
Auswählen:
NOTE
To use the automatically soot measurement, you have to select the
fuel type oil!
Page 30
66°C Boiler temp.:
-.- 1st Soot meas.:
-.- 2nd Soot meas.:
-.- 3rd Soot meas.:
----
Oil trace
Auswählen:
Flow measurement
Gas speed
M.Gas
dP
Gas analysis
Measurement stored in
intermediate memory
Soot..Oil trace
66°C
1.0
0.5
1.5
: NO
0.3
m/sek
44
Nm3/h
0.1
Pa
